Kohler TH575-54536 CUB CADET 18 HP (13.4 kW)

Model: TH575-54536 18 HP (13.4 kW)

Save Part Not Listed?
product name

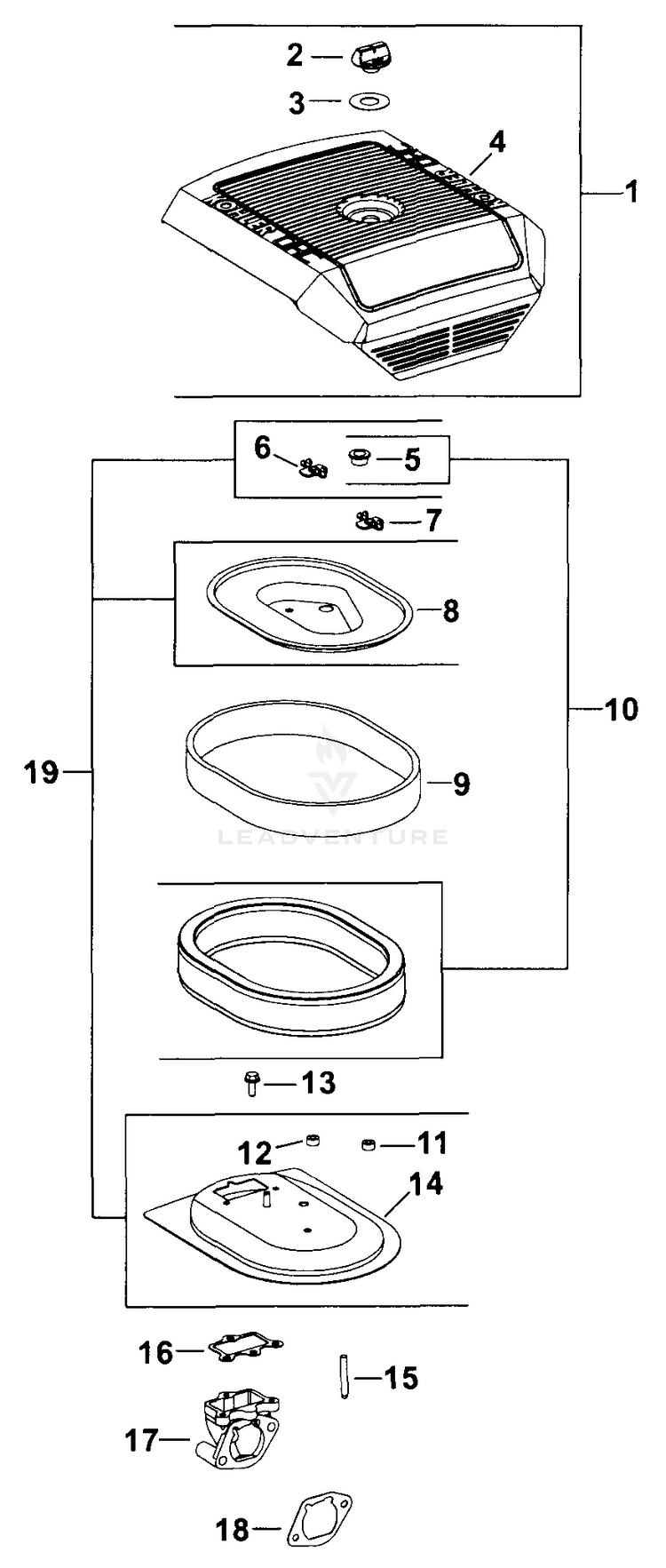

Air Intake/Filtration 10-28-1

...
...
1
KIT, AIR CLEANER COVER - (#DSC) Includes 2-4 KOH-28 743 02-S
...
2
KNOB, COVER KOH-25 341 04-S
...
3
GASKET, AIR CLEANER COVER KNOB KOH-24 041 27-S
...
4
Cover, air cleaner Replaced by 28-743-02-S KOH-28 096 01-S
...
5
SEAL, CARB ADJUST SCREW KOH-28 032 08-S
...
6
NUT, WING - (#DSC) KOH-28 100 01-S
...
7
NUT, WING KOH-12 100 01-S
...
8
COVER, INNER AIR CLEANER - DISCONTINUED KOH-28 096 17-S
...
9
ELEMENT, PRE-CLEANER KOH-28 083 02-S
...
10
ELEMENT KIT, AIR FILTER Includes 5 and grommet plug 28-313-03-S KOH-28 083 03-S
...
11
SEAL, INNER AIR CLEANER KOH-24 032 03-S
...
12
SEAL - DISCONTINUED KOH-28 032 10-S
...
13
SCREW, THREAD FORMING KOH-25 086 397-S
...
14
BASE, AIR CLEANER - (#DSC) KOH-28 094 05-S
...
15
STUD - DISCONTINUED KOH-28 072 01-S
...
16
GASKET, AIR CLEANR BASE KOH-28 041 04-S
...
17
ELBOW, AIR CLEANER KOH-28 054 01-S
...
18
GASKET, AIR CLEANER BASE KOH-24 041 14-S

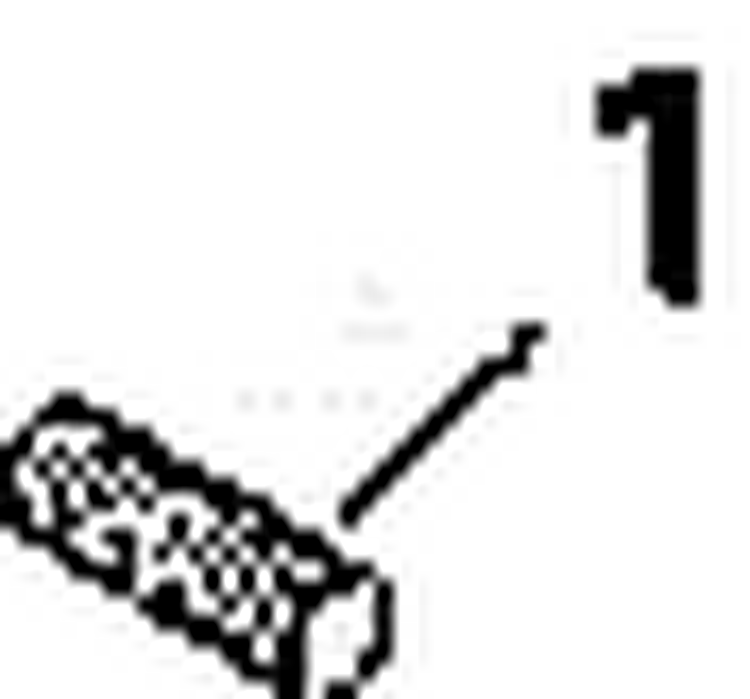

Exhaust 11-28-1

...
...
1
STUD, METRIC EXHAUST KOH-25 072 24-S

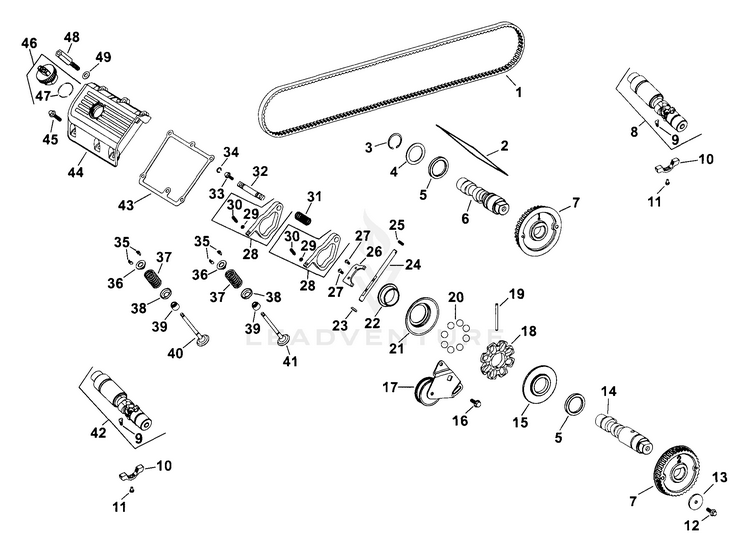

Head/Valve/Breather 4-28-1

...
...
1
BELT, TIMING KOH-28 203 01-S
...
2
GASKET, VALVE COVER NO. 1-(#DSC) KOH-28 041 02-S
...
3
RING, SNAP - DISCONTINUED KOH-28 141 01-S
...
4
WASHER, THRUST (#DSC) KOH-28 468 01-S
...
5
SEAL, OIL - DISCONTINUED - USE (CLARK TP-32-44-6 P) KOH-28 032 04-S
...
6
CAMSHAFT, NO. 1 CYLINDER KOH-28 012 03-S
...
7
SPROCKET, CAMSHAFT - DISCONTINUED KOH-28 093 04-S
...
12
SCREW, FLG M6X1.0X16 KOH-M-639016-S
...
13
WASHER, FLAT - DISCONTINUED KOH-28 468 07-S
...
14
CAMSHAFT, NO. 2 CYLINDER KOH-28 012 04-S
...
15
PLATE, BACKING GOVERNOR - (#DSC) KOH-28 146 02-S
...
16
SCREW, THREAD FORMING KOH-25 086 396-S
...
17
PULLEY, IDLER KOH-28 093 02-S
...
18
BODY, GOVERNOR KOH-28 208 02-S
...
19
PIN, COILED SPRING-(#DSC) KOH-28 380 01-S
...
20
BALL, GOVERNOR KOH-28 194 01-S
...
21
COVER, GOVERNOR - DISCONTINUED KOH-28 096 07-S
...
22
BUSHING, GOVERNOR - DISCONTINUED KOH-28 158 02-S
...
23
SPACER, GOVERNOR KOH-28 112 02-S
...
24
SHAFT, GOVERNOR CROSS-DISCONTINUED KOH-28 144 03-S
...
25
SEAL, GOVERNOR-CROSS SHAFT-(#DSC) KOH-28 032 06-S
...
26
YOKE, GOVERNOR-DISCONTINUED KOH-28 471 01-S
...
27
SCREW, HEX HEAD MACHINE KOH-M-410010-S
...
28
KIT, ROCKER ARM Includes 29,30 KOH-28 755 18-S
...
29
NUT, HEX JAM-DISCONTINUED KOH-M-538003-S
...
30
SCREW, SLOTTED SET-DISCONTINUED KOH-28 086 01-S
...
31
SPRING, SHAFT - DISCONTINUED KOH-28 089 01-S
...
32
SHAFT, ROCKER ARM - (#DSC) KOH-28 144 01-S
...
33
SCREW, THREAD FORMING KOH-25 086 398-S
...
34
RING, RETAINING (#DSC) KOH-28 141 02-S
...
35
LOCK, RETAINER-(#DSC) KOH-28 062 01-S
...
36
CAP, VALVE SPRING (#DSC) KOH-28 173 01-S
...
37
SPRING, VALVE - (#DSC) KOH-28 089 04-S
...
38
RETAINER, VALVE SPRING - (#DSC) KOH-28 018 04-S
...
39
SEAL, VALVE STEM KOH-20 032 10-S
...
40
VALVE, EXHAUST - DISCONTINUED KOH-28 016 01-S
...
40
VALVE, EXHAUST .250 O/S - DISCONTINUED KOH-28 016 02-S
...
41
VALVE, INTAKE-(#DSC) KOH-28 017 01-S
...
41
VALVE, INTAKE .250 O/S-DISCONTINUED KOH-28 017 02-S
...
43
GASKET, VALVE COVER NO. 2 KOH-28 041 03-S
...
44
COVER, VALVE NO. 2-(#DSC) KOH-28 096 04-S
...
45
SCREW, HEX FLANGE M6 X 1 KOH-25 086 294-S
...
46
CAP ASSY, OIL FILL (YELLOW) Includes 47 KOH-24 227 02-S
...
47
O-RING KOH-24 153 32-S

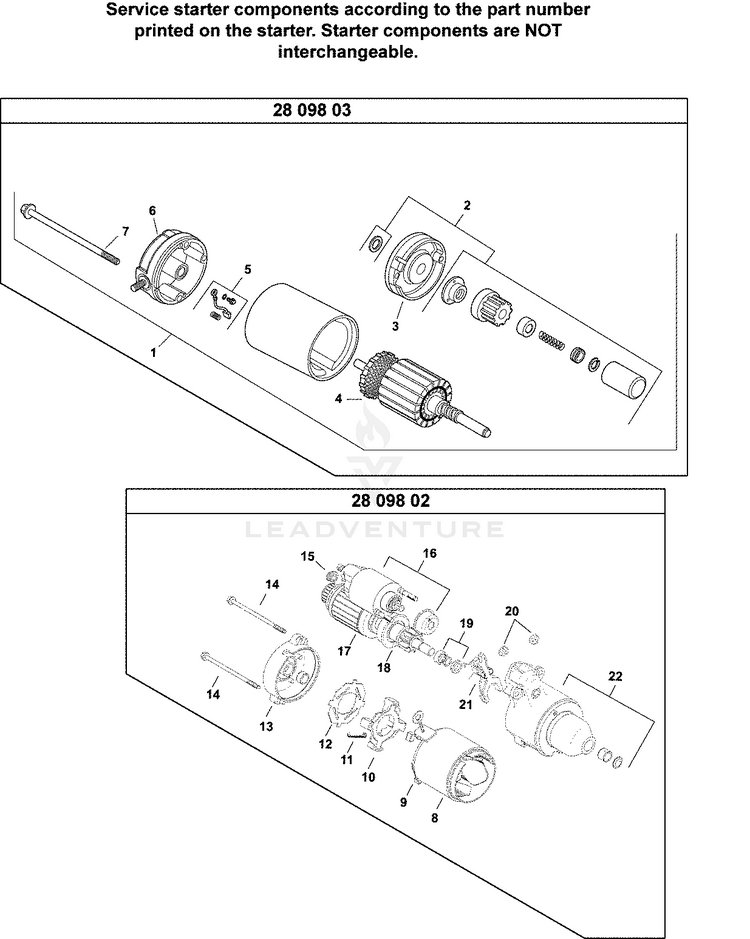

Starting System 7-28-4

...
...
1
KIT, STARTER - (#DSC) (includes 2-7) KOH-28 755 30-S
...
2
KIT, DRIVE-(#DSC) KOH-12 755 54-S
...
3
CAP, DRIVE KOH-28 227 02-S
...
4
ARMATURE ASSY - DISCONTINUED KOH-45 170 03-S
...
5
KIT, BRUSH & SPRING - DISCONTINUED KOH-82 755 28-S
...
6
CAP, COMMUTATOR (#DSC) KOH-28 227 01-S
...
7
THRU BOLT KOH-28 086 04-S
...
8
FRAME W/BRUSHES - DISCONTINUED KOH-12 471 01-S
...
9
BRUSH & SPRING KIT-(#DSC) KOH-52 221 01-S
...
10
BRUSH HOLDER KOH-52 323 03-S
...
11
SPRING, BRUSH-DISCONTINUED KOH-52 089 09-S
...
12
INSULATOR-(#DSC) KOH-52 168 01-S
...
13
CAP, COMMUTATOR END-DISCONTINUED KOH-28 173 02-S
...
14
THRU BOLT KOH-52 211 05-S
...
15
NUT-DISCONTINUED KOH-52 100 09-S
...
16
SOLENOID KOH-52 435 02-S
...
17
ARMATURE-DISCONTINUED KOH-52 170 04-S
...
18
CLUTCH ASSEMBLY-DISCONTINUED KOH-28 239 01-S
...
19
KIT, STARTER REPAIR KOH-24 755 84-S
...
20
NUT-DISCONTINUED KOH-52 100 10-S
...
21
LEVER, STARTER DRIVE KOH-28 090 14-S
...
22
HOUSING ASSEMBLY - DISC. KOH-28 081 05-S
...
M-664020-S
SCREW, THREAD FORMING NOT ILLUSTRATED KOH-25 086 403-S
