Kohler SV480-3206 MARKETING Engine

Model: SV480-3206 MARKETING

Back To Assemblies

Save Part Not Listed?
product name

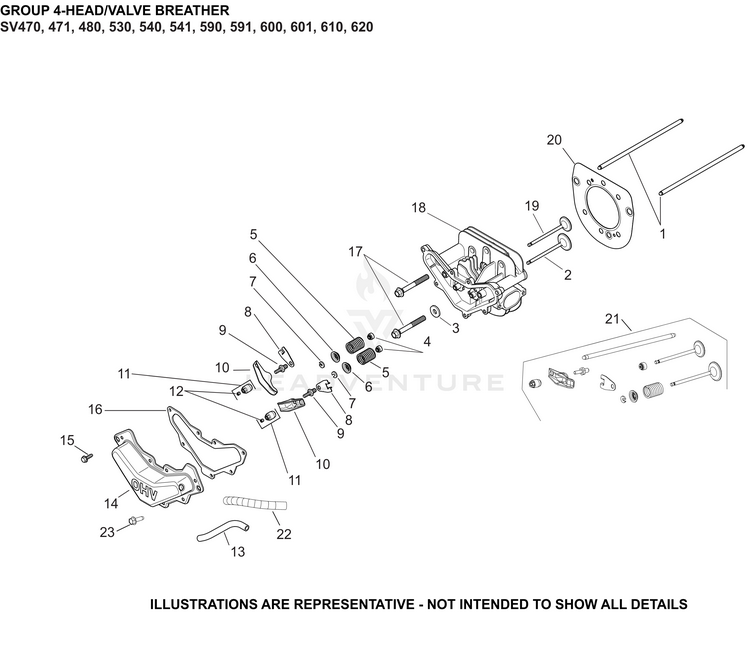

04 CylinderHead/Breather

...
...
1
ROD, PUSH KOH-20 411 05-S
...
2
VALVE, INTAKE KOH-20 017 01-S
...
3
WASHER, FLAT 13/32" KOH-12 468 05-S
...
4
SEAL, VALVE STEM KOH-20 032 10-S
...
5
SPRING, VALVE KOH-20 089 03-S
...
6
CAP, VALVE SPRING KOH-20 173 01-S
...
7
LOCK, RETAINER KOH-20 062 01-S
...
8
PLATE, PUSH ROD GUIDE KOH-20 146 03-S
...
9
STUD, ROCKER KOH-20 072 08-S
...
10
ARM, ROCKER-DISCONTINUED KOH-20 186 01-S
...
11
ROCKER PIVOT ASSY KOH-20 599 04-S
...
11
ROCKER PIVOT ASSY KOH-20 599 04-S
...
12
SCREW, SET KOH-20 086 04-S
...
14
COVER ASSEMBLY, VALVE KOH-20 096 25-S
...
17
SCREW, CYLINDER HEAD (M10 X 80) KOH-20 086 02-S
...
18
KIT, CYLINDER HEAD KOH-20 318 14-S
...
19
VALVE, EXHAUST KOH-20 016 01-S
...
20
KIT, CYLINDER HEAD GASKET KOH-20 841 01-S
...
21
KIT, CYLINDER HEAD HARDWARE-DISC. KOH-20 755 38-S
...
22
HOSE, BREATHER KOH-20 326 03-S
...
23
SCREW, THREAD FORMING KOH-25 086 396-S
Schematic Image Zoomed
