Kohler SH270-3143 FNA Engine

Model: SH270-3143 FNA

Back To Assemblies

Save Part Not Listed?
product name

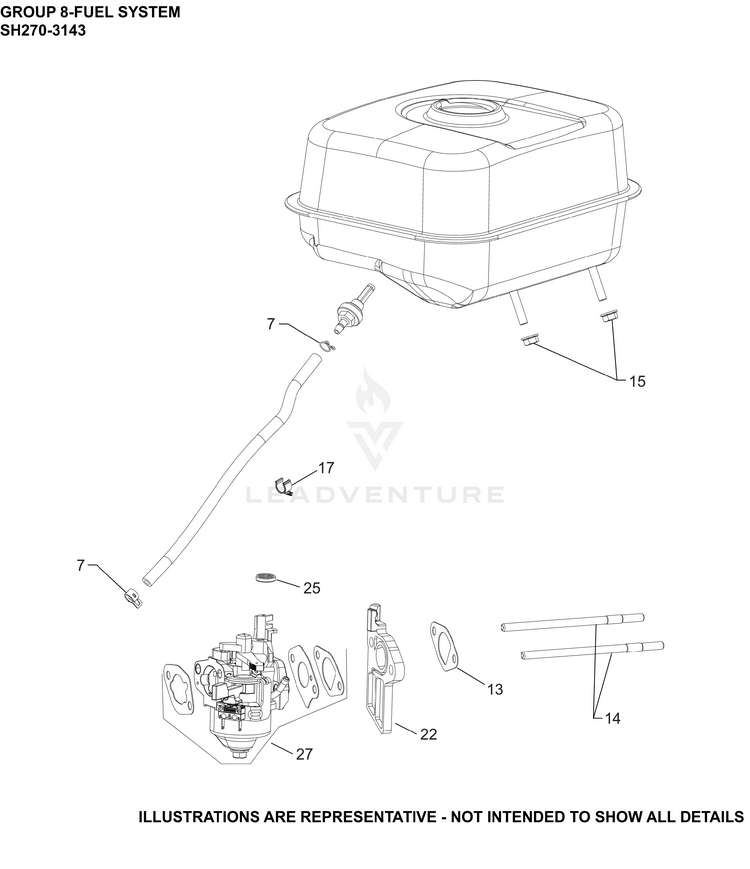

08 Fuel System

...
...
7
CLAMP, FUEL LINE KOH-14 237 01-S
...
13
KIT, INTAKE GASKET KOH-18 041 06-S
...
14
STUD, CARBURETOR KOH-18 072 06-S
...
15
NUT, HEX FLANGE (M6) KOH-14 100 16-S
...
17
CLIP, FUEL HOSE KOH-17 154 08-S
...
22
INSULATOR, CARBURETOR KOH-18 168 04-S
...
25
SEAL, INLET VALVE KOH-17 032 40-S
...
27
KIT,CARB (HUAYI) KOH-18 853 44-S
...
NI
KIT, CARBURETOR REPAIR (HUAYI) KOH-14 757 04-S
...
NI
FUEL HOSE, LOW PERMEATION KOH-17 111 36-S
...
NI
KIT, HIGH ALT (4000-8000 FT) KOH-18 755 05-S
...
NI
KIT, HIGH ALT (8,000+ FT) KOH-18 755 06-S
