Kohler SH265 ONE PAGE MODEL COMPOSITE

Model: SH265 ONE PAGE MODEL COMPOSITE

Back To Assemblies

Save Part Not Listed?
product name

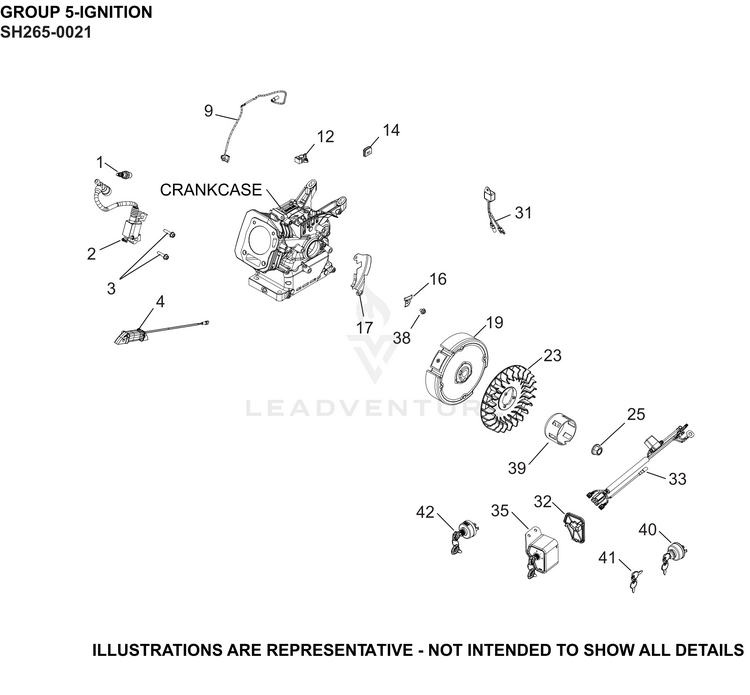

05 Ignition/Charging

...
...
1
SPARK PLUG KOH-14 132 03-S
...
2
MODULE, IGNITION KOH-18 584 01-S
...
3
SCREW, HEX FLANGE (M6) KOH-25 086 436-S
...
4
STATOR ASSEMBLY KOH-17 085 09-S
...
9
LEAD, GROUND TO KILL KOH-17 518 04-S
...
12
CLIP, WIRE HARNESS KOH-17 154 09-S
...
14
GROMMET, STATOR WIRE KOH-18 313 01-S
...
16
BRACKET, COIL WIRE RETENTION KOH-17 126 23-S
...
17
SHIELD, FLYWHEEL ASSEMBLY KOH-18 096 16-S
...
19
FLYWHEEL ASSEMBLY - 3 AMP KOH-18 025 08-S
...
23
FAN, FLYWHEEL KOH-17 157 06-S
...
23
CUP, STARTER DRIVE-(#DSC) Before S/N 4225500011 KOH-18 109 02-S
...
25
NUT, FLYWHEEL (W/SERRATIONS) KOH-14 100 10-S
...
31
CONTROL, OIL ALERT UNIT KOH-18 526 01-S
...
32
COVER, KEY BOX KOH-17 096 92-S
...
33
HARNESS, WIRING ASSEMBLY (3 AMP) NEW STYLE KOH-17 176 17-S
...
35
KIT, KEYBOX HOUSING ASSEMBLY NEW STYLE KOH-17 081 110-S
...
35
KIT, KEY BOX ASSEMBLY NEW STYLE KOH-17 081 111-S
...
38
SCREW, M6 X 8 KOH-25 086 289-S
...
39
STARTER CUP After S/N 4225500001 KOH-18 109 04-S
...
40
KEY SWITCH ASSEMBLY KOH-25 099 37-S
...
41
KEY, SET OF 2 KOH-48 340 01-S
...
42
SWITCH, KEY ASSEMBLY NEW STYLE KOH-25 099 38-S
