Kohler PCV860-3013 DIXIE CHOPPER PCV860

Model: PCV860-3013 DIXIE CHOPPER

Back To Assemblies

Save Part Not Listed?
product name

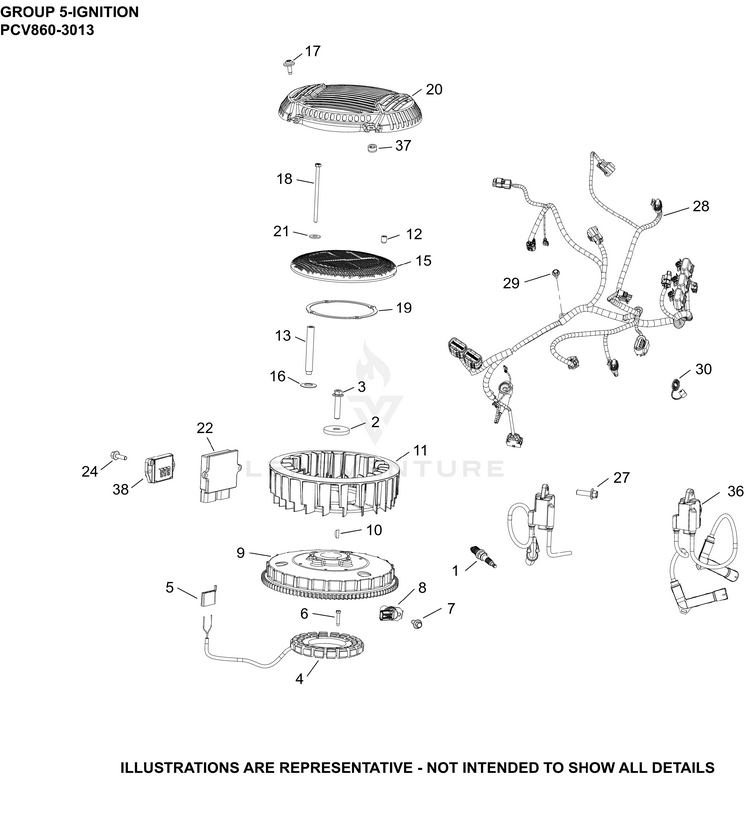

05 Ignition/Charging

...
...
1
PLUG, SPARK KOH-25 132 25-S
...
2
WASHER, FLAT 13/32" KOH-62 468 01-S
...
3
SCREW, HEX FLANGE KOH-25 086 361-S
...
4
KIT, 15 / 20 AMP STATOR KOH-237878-S
...
5
CONNECTOR KOH-25 155 41-S
...
6
SCREW, THREAD FORMING KOH-25 086 402-S
...
7
SCREW, THREAD FORMING KOH-25 086 404-S
...
8
SENSOR, SPEED KOH-25 418 01-S
...
9
FLYWHEEL, ASSEMBLY-USE 62 025 26-S KOH-62 025 17-S
...
10
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
11
FAN KOH-62 157 06-S
...
12
SCREW, SKT SET #10-24X1/4" KOH-25 086 43-S
...
13
SPACER GRASS SCREEN KOH-19 112 02-S
...
15
SCREEN, GRASS KOH-24 162 41-S
...
16
WASHER, SPRING 10 MM KOH-24 468 11-S
...
17
SCREW, SEMS KOH-25 086 160-S
...
18
SCREW, HEX HEAD KOH-25 086 599-S
...
19
RING, SUPPORT KOH-25 141 08-S
...
20
GUARD, GRASS SCREEN (METAL) KOH-25 314 04-S
...
21
WASHER, FLAT 1/4" (O.D. 5/8") KOH-X-25-53-S
...
22
MODULE, ECU KOH-19 584 47-S
...
24
SCREW, HVY FLG M5X.8X16 KOH-M-551016-S
...
27
SCREW, FLG M6x1.0x20 KOH-M-651020-S
...
28
HARNESS, WIRING ASSEMBLY - MECH KOH-19 176 04-S
...
29
SCREW, FLG M6X1.0X16 KOH-M-651016-S
...
30
CAP, CONNECTOR KOH-24 173 08-S
...
36
COIL, IGNITION (RFI) KOH-19 519 02-S
...
37
SPACER KOH-25 112 30-S
...
38
REGULATOR, RECT-(#2540349S) KOH-25 403 39-S
