Kohler LH630-0002 BASIC 22 HP

Model: LH630-0002 22 HP

Back To Assemblies

Save Part Not Listed?
product name

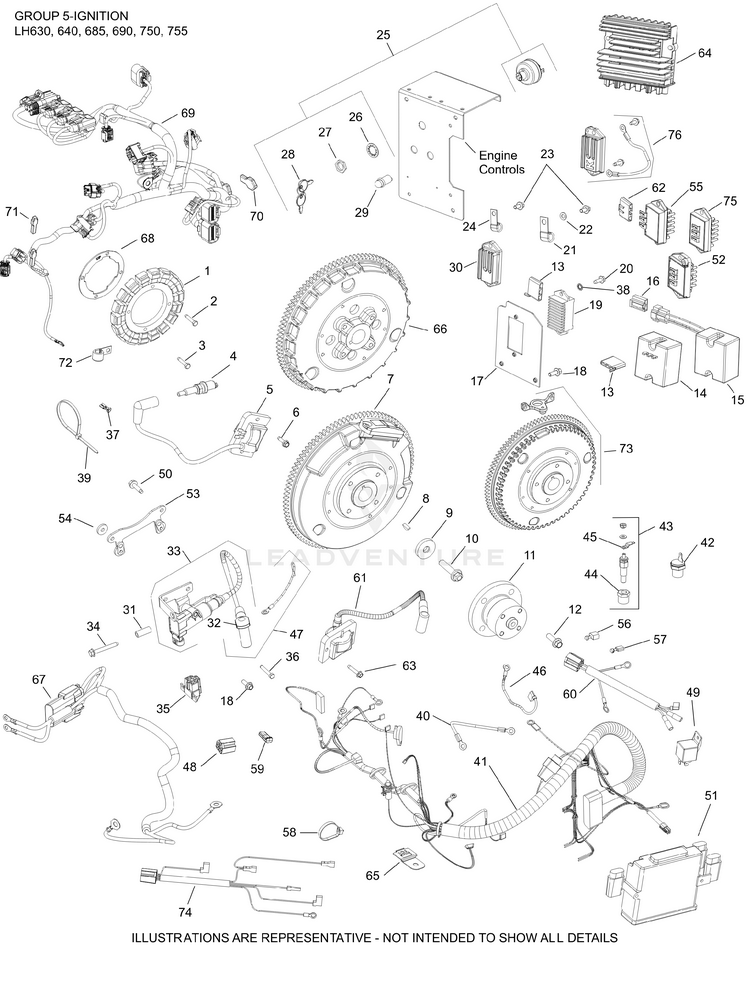

05 Ignition/Charging

...
...
1
KIT, 15 / 20 AMP STATOR KOH-237878-S
...
2
SCREW, THREAD FORMING KOH-25 086 402-S
...
4
SPARK PLUG KOH-66 132 01-S
...
7
FLYWHEEL ASSEMBLY (LW) KOH-24 025 57-S
...
8
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
9
WASHER, FLAT 13/32"-(#2546809S) KOH-12 468 03-S
...
10
SCREW, HEX FLANGE KOH-25 086 361-S
...
13
CONNECTOR KOH-25 155 41-S
...
21
CLIP, CABLE KOH-235173-S
...
22
WASHER, FLAT 1/4" (O.D. 1/2") KOH-X-25-63-S
...
35
CONNECTOR KOH-25 155 06-S
...
39
TIE KOH-25 454 04-S
...
39
TIE KOH-25 454 05-S
...
40
KIT, GROUND, LEAD KOH-24 518 12-S
...
41
HARNESS, WIRING-DISCONTINUED KOH-66 176 20-S
...
46
LEAD, 20/25 AMP B+ KOH-25 518 34-S
...
49
RELAY KOH-20 404 01-S
...
52
REGULATOR, RECTIFIER KOH-25 403 32-S
...
61
MODULE, IGNITION KOH-62 584 57-S
...
63
SCREW, THREAD FORMING KOH-25 086 472-S
...
NI
CLIP, CABLE (KM) KOH-48 154 01-S
