Kohler LH630-0002 BASIC 22 HP

Model: LH630-0002 22 HP

Back To Assemblies

Save Part Not Listed?
product name

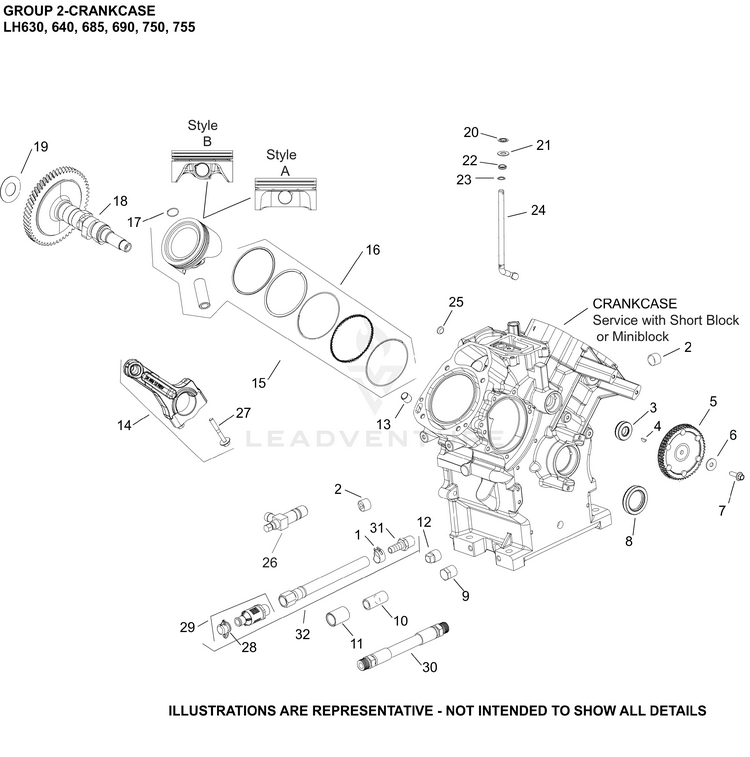

02 CrankCase

...
...
2
PLUG, PIPE CTSK 3/8" KOH-25 139 62-S
...
3
SEAL, CAMSHAFT-(#DSC) KOH-66 032 07-S
...
4
KEY, 3/32" X 3/8" KOH-X-42-2-S
...
5
SPROCKET, CAMSHAFT KOH-66 093 01-S
...
6
WASHER, FLAT 1/4" KOH-X-25-52-S
...
7
SCREW, FLG M6x1.0x20 KOH-M-651020-S
...
8
SEAL, OIL (HELIX LIP) KOH-24 032 19-S
...
9
PLUG, HD PIPE 3/8" KOH-52 139 02-S
...
13
PIN, LOCATING KOH-24 380 16-S
...
14
ROD, ASSEMBLY CONNECTING KOH-25 067 04-S
...
15
KIT,PISTON ASSY W/RING(STD)77MM-(#DSC) KOH-24 874 46-S
...
15
KIT,PISTON W/RING SET(.08)77MM-DISC. KOH-24 874 47-S
...
15
KIT,PISTON ASSY W/RING SET(.25)-(#DSC) KOH-24 874 48-S
...
15
KIT,PISTN ASSY W/RING SET(.5)77MM-(#DSC) KOH-24 874 49-S
...
16
RING SET (STD)-DISCONTINUED KOH-24 108 22-S
...
16
RING SET (.08)-DISCONTINUED KOH-24 108 23-S
...
16
RING SET-DISC. USE PISTON ASSY PER SPEC KOH-24 108 24-S
...
16
RING SET (.50) - DISCONTINUED KOH-24 108 25-S
...
17
RETAINER, PISTON PIN KOH-24 018 01-S
...
18
KIT, CAMSHAFT KOH-66 012 01-S
...
19
SHIM, CAMSHAFT (WHITE .028") KOH-12 422 07-S
...
19
SHIM, CAMSHAFT (BLUE .03") KOH-12 422 08-S
...
19
SHIM, CAMSHAFT (RED .032") KOH-12 422 09-S
...
19
SHIM, CAMSHAFT (YELLOW .034") KOH-12 422 10-S
...
19
SHIM, CAMSHAFT (GREEN .036") KOH-12 422 11-S
...
19
SHIM, CAMSHAFT (GRAY .038") KOH-12 422 12-S
...
19
SHIM, CAMSHAFT (BLACK .04") KOH-12 422 13-S
...
20
RETAINER, RING KOH-24 018 09-S
...
21
WASHER, FLAT 9 MM KOH-M-931010-S
...
22
SEAL, GOVERNOR CROSS SHAFT KOH-28 032 09-S
...
23
WASHER, FLAT 11/32" KOH-24 468 15-S
...
24
SHAFT, GOVERNOR CROSS KOH-24 144 39-S
...
25
PLUG, CUP KOH-52 139 09-S
...
NI
KIT,PISTON W/RING SET(.08)77MM-DISC. KOH-24 874 47-S
...
NI
SEALANT(LOCTITE 222 RETAIN CMPND 0.5ML) KOH-25 597 06-S
