Kohler KT735-3088 MTD Engine

Model: KT735-3088 MTD

Back To Assemblies

Save Part Not Listed?
product name

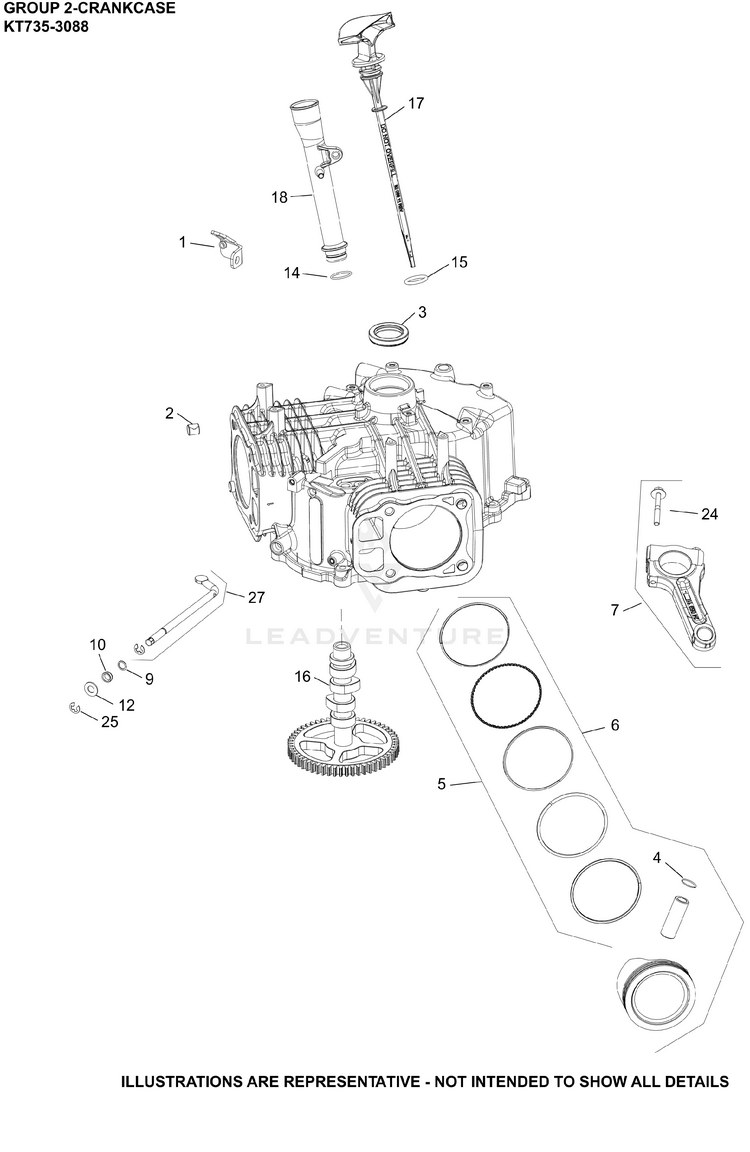

02 CrankCase

...
...
1
BRACKET, OIL FILL TUBE KOH-24 126 243-S
...
2
PIN, LOCATING KOH-24 380 16-S
...
3
SEAL, OIL (HELIX LIP) KOH-24 032 19-S
...
4
RETAINER, PISTON PIN KOH-24 018 01-S
...
5
RING SET(STD)STYLE B-1.2mm Tp RING THICK BEFORE S/N 5105100011 KOH-25 108 01-S
...
5
RING SET(.08)STYLE B-1.2mm RING THICK BEFORE S/N 5105100011 KOH-25 108 02-S
...
5
RING SET(.25)STYLE B-1.2mm Tp RING THICK BEFORE S/N 5105100011 KOH-25 108 03-S
...
5
RING SET(.50)STYLE B-1.2mm Tp RING THICK BEFORE S/N 5105100011 KOH-25 108 04-S
...
6
KIT, PISTON 725CC (STD) STYLE B KOH-25 874 13-S
...
6
KIT, PISTON 725CC (.08) STYLE B BEFORE S/N 5105100011 KOH-25 874 15-S
...
6
KIT, PISTON 725CC (.25) STYLE B BEFORE S/N 5105100011 KOH-25 874 16-S
...
6
KIT, PISTON 725CC (.50) STYLE B BEFORE S/N 5105100011 KOH-25 874 17-S
...
7
ROD, ASSEMBLY CONNECTING Before S/N 4929100011 KOH-25 067 04-S
...
7
ROD, ASSY CONNECTING .25 undersized Before S/N 4929100011 KOH-25 067 05-S
...
7
ROD, ASSEMBLY CONNECTING After S/N 4929100001 KOH-25 067 04-S
...
9
WASHER, FLAT 11/32" KOH-24 468 15-S
...
10
SEAL, GOVERNOR CROSS SHAFT KOH-28 032 09-S
...
12
WASHER, FLAT 9 MM KOH-M-931010-S
...
14
O-RING KOH-12 153 07-S
...
15
O-RING KOH-25 153 09-S
...
16
CAMSHAFT ASSY BEFORE S/N 5224400011 KOH-32 010 07-S
...
16
CAMSHAFT ASSY AFTER S/N 5224400001 KOH-32 010 07-S
...
17
DIPSTICK, ASSY Before S/N 4632700011 KOH-32 038 14-S
...
17
DIPSTICK, ASSY After S/N 4632700001 KOH-32 038 14-S
...
18
TUBE ASSEMBLY, OIL FILL KOH-32 123 14-S
...
24
KIT, ROD BOLTS Before S/N 4812900011 KOH-25 086 677-S
...
24
KIT, ROD BOLTS After S/N 4912900001 KOH-25 086 677-S
...
25
CLIP, RETAINER GOVERNOR SHAFT KOH-32 154 03-S
...
27
KIT, CROSS SHAFT KOH-32 755 22-S
