Kohler K662-33504 POWER RIG 24 HP (17KW) SPECS 2954-45619

Model: K662-33504 24 HP (17KW) SPECS 2954-45619

Back To Assemblies

Save Part Not Listed?
product name

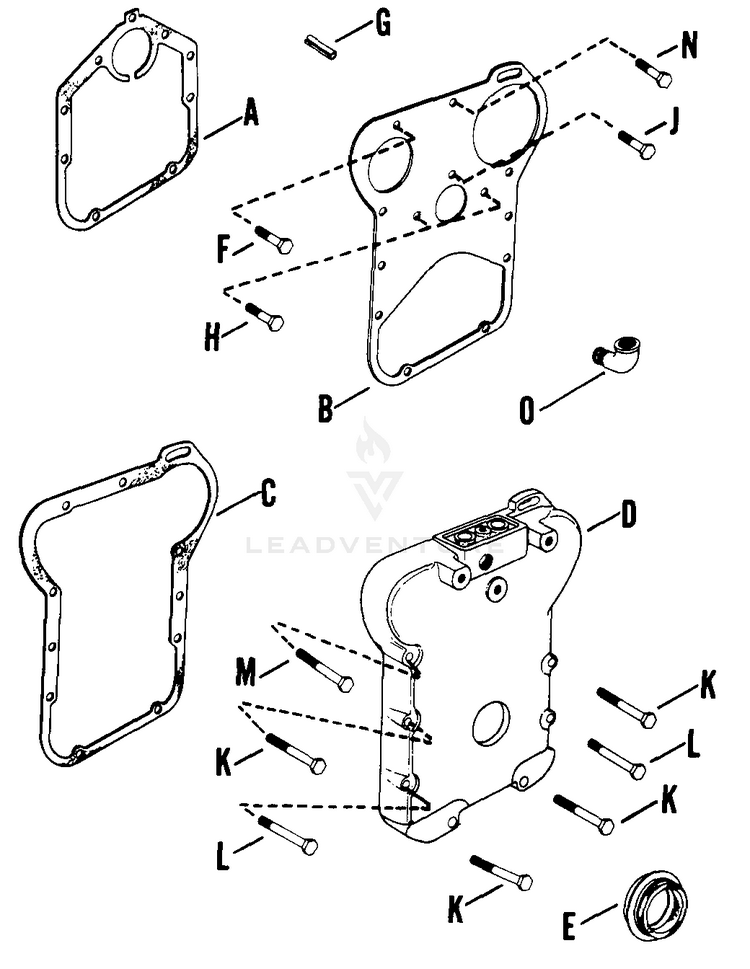

Gear Cover 022500932

...
...
A
GASKET - DISCONTINUED KOH-270127-S
...
B
PLATE - DISCONTINUED KOH-270128
...
C
GASKET - DISCONTINUED KOH-270140-S
...
D
DISCONTINUED KOH-270141
...
E
SEAL - DISCONTINUED KOH-270143
...
F
SCREW, CAP HD 5/16-18x3/4"-DISCONTINUED KOH-X-6-11-S
...
H
SCREW KOH-X-154-1-S
...
J
SCREW,CAP HD 5/16-18x1/2"-DISC. KOH-X-6-1-S
...
K
Screw, hex. hd. 5/16 - 18 x 2-1/4 KOH-X-6-3
...
L
Screw, hex. hd. 5/16 - 18 x 2-1/4 KOH-X-6-3
...
M
SCREW, CAP HD - DISC. KOH-X-125-11-S
...
N
SCREW - DISCONTINUED KOH-X-154-5-S
