Kohler HD775-3088 BEIJING GREENMAN Engine

Model: HD775-3088 BEIJING GREENMAN

Back To Assemblies

Save Part Not Listed?
product name

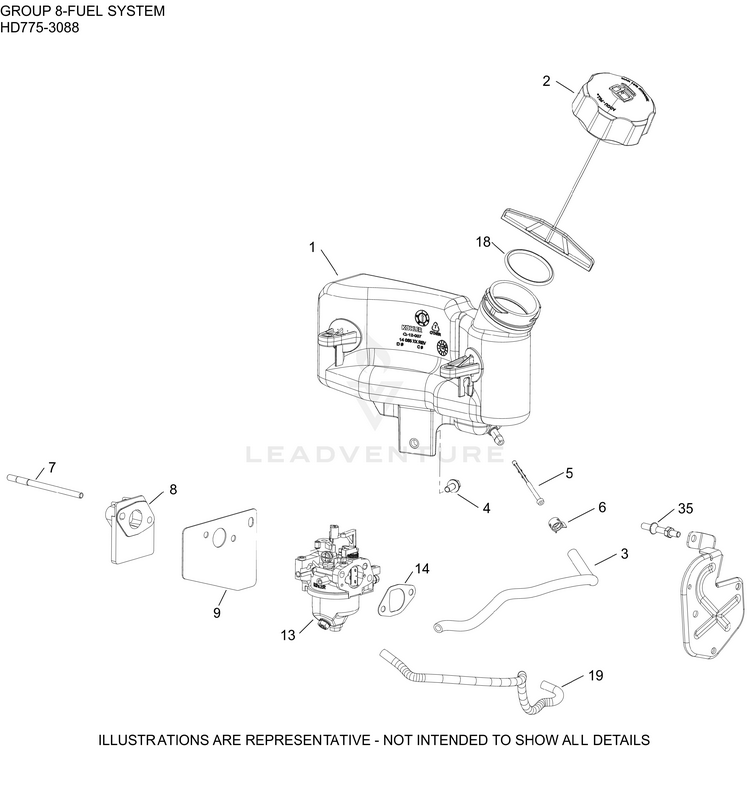

08 Fuel System

...
...
1
TANK, FUEL 1.4L FOR EUROPE ONLY KOH-14 065 61-S
...
2
CAP ASSEMBLY, FUEL KOH-14 227 20-S
...
3
HOSE, FUEL LOW-PERMEATION KOH-25 111 102-S
...
4
SCREW, HEX FLANGE (M6) KOH-25 086 459-S
...
5
FILTER, FUEL IN-NIPPLE KOH-14 050 14-S
...
6
CLAMP, HOSE KOH-14 237 10-S
...
7
STUD,M6X1.0X100.2MM KOH-14 072 23-S
...
8
KIT, SPACER KOH-14 112 09-S
...
9
KIT, CARBURETOR HEAT SHIELD GASKET KOH-14 041 31-S
...
13
KIT, CARBURETOR 13 MM STD CHOKE KOH-14 853 60-S
...
14
KIT, INTAKE GASKET KOH-17 041 03-S
...
18
SEAL, FUEL CAP- (#DSC) KOH-14 032 10-S
...
19
HOSE, EVAPORATIVE KOH-25 326 28-S
...
35
STUD KOH-14 072 31-S
...
NI
TOOL, SPARK PLUG WRENCH ASSY KOH-14 455 03-S
...
NI
KIT, HIGH ALTITUDE (4,000 - 8,000 FT) KOH-14 755 04-S
...
NI
KIT, CARBURETOR REPAIR (RUIXING) KOH-14 757 03-S
