Kohler HD675-3018 Lombardini Engine

Model: HD675-3018 Lombardini

Back To Assemblies


product name

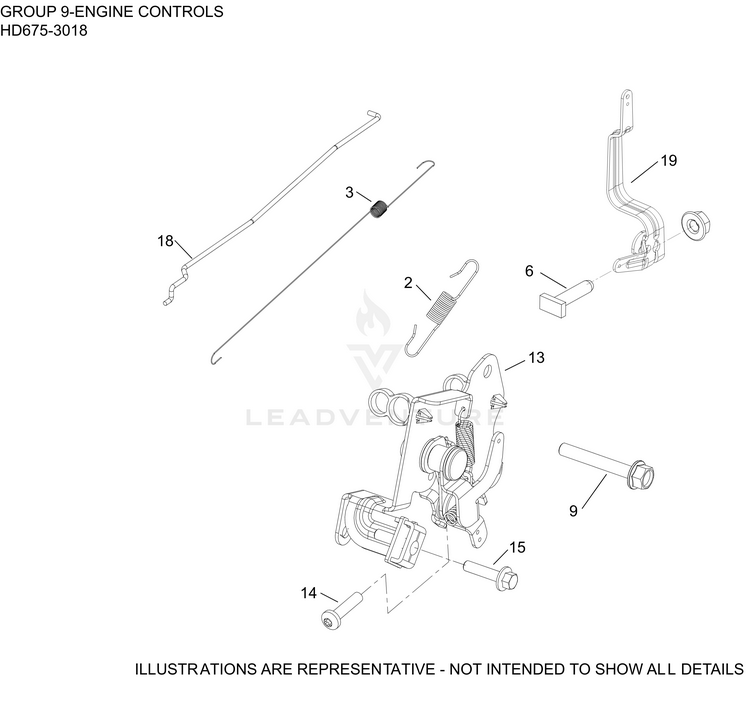

09 Engine Controls

...
...
2
SPRING, GOV (2800-3300 RPM) KOH-14 089 14-S

...
3
SPRING, LINKAGE KOH-14 089 63-S

...
6
SCREW, RECTANGLE HEAD (M6) KOH-25 086 166-S

...
9
SCREW, HEX FLANGE (M6) KOH-25 086 307-S

...
13
CONTROL ASSEMBLY (VAR. SPEED) KOH-14 536 08-S

...
14
SCREW, #25 6-LOBE PAN HD (M5) KOH-25 086 165-S

...
15
SCREW, (M5) HEX FLANGE KOH-25 086 232-S

...
18
LINKAGE, GOVERNOR KOH-14 079 27-S

...
19
LEVER, GOVERNOR KOH-14 090 47-S
Schematic Image Zoomed
