Kohler HD675-3002 MARKETING BASIC Engine

Model: HD675-3002 MARKETING BASIC

Back To Assemblies

Save Part Not Listed?
product name

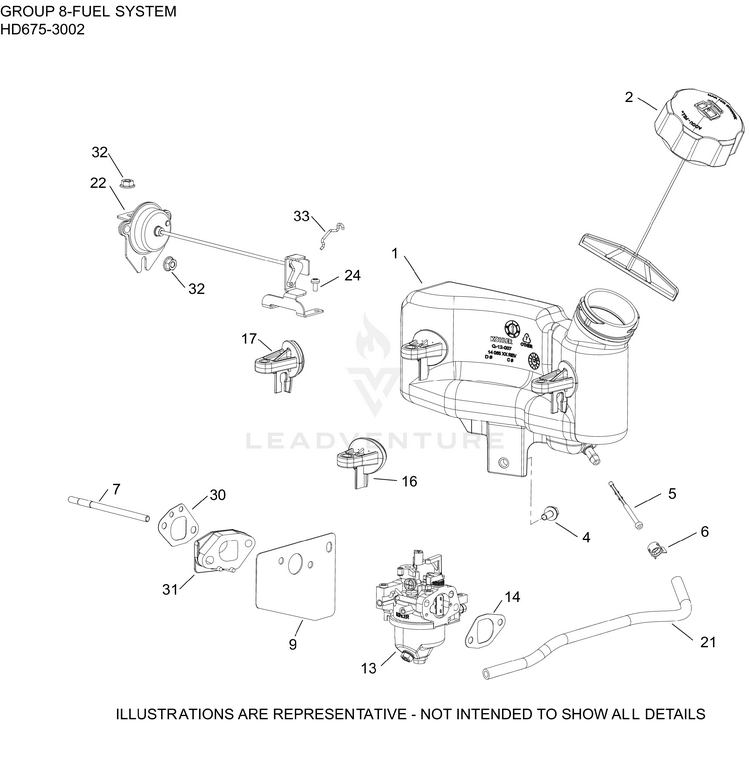

08 Fuel System

...
...
1
TANK, FUEL KOH-14 065 72-S
...
2
FUEL CAP ASSEMBLY KOH-14 227 26-S
...
4
SCREW, THREAD FORMING KOH-25 086 472-S
...
5
FILTER, FUEL IN-NIPPLE KOH-14 050 14-S
...
6
CLAMP, HOSE KOH-14 237 10-S
...
7
STUD,M6X1.0X100.2MM KOH-14 072 27-S
...
9
KIT, CARBURETOR HEAT SHIELD GASKET KOH-14 041 31-S
...
13
KIT, CARBURETOR COMPLETE KOH-14 853 114-S
...
13
KIT,CARB (HUAYI) KOH-14 853 55-S
...
14
KIT, INTAKE GASKET KOH-17 041 03-S
...
16
BRACKET, FUEL TANK-DISCONTINUED KOH-14 126 78-S
...
17
BRACKET, FUEL TANK-DISCONTINUED KOH-14 126 79-S
...
21
HOSE, FUEL LOW-PERMEATION (CKY) KOH-25 111 69-S
...
22
ARM ASSEMBLY, AUTO CHOKE KOH-14 187 17-S
...
24
SCREW, M4 THREAD FORMING KOH-25 086 439-S
...
30
KIT, CARBURETOR HEAT SHIELD GASKET KOH-14 041 31-S
...
31
SPACER, CARBURETOR KOH-14 112 27-S
...
32
NUT, HEX FLANGE (M6) KOH-14 100 16-S
...
33
LINKAGE, AUTO CHOKE KOH-14 079 26-S
...
NI
KIT, HIGH ALT (4000-8000 FT) KOH-14 755 08-S
