Kohler HD1100-3000 MARKETING BASIC Engine

Model: HD1100-3000 BASIC

Save Part Not Listed?

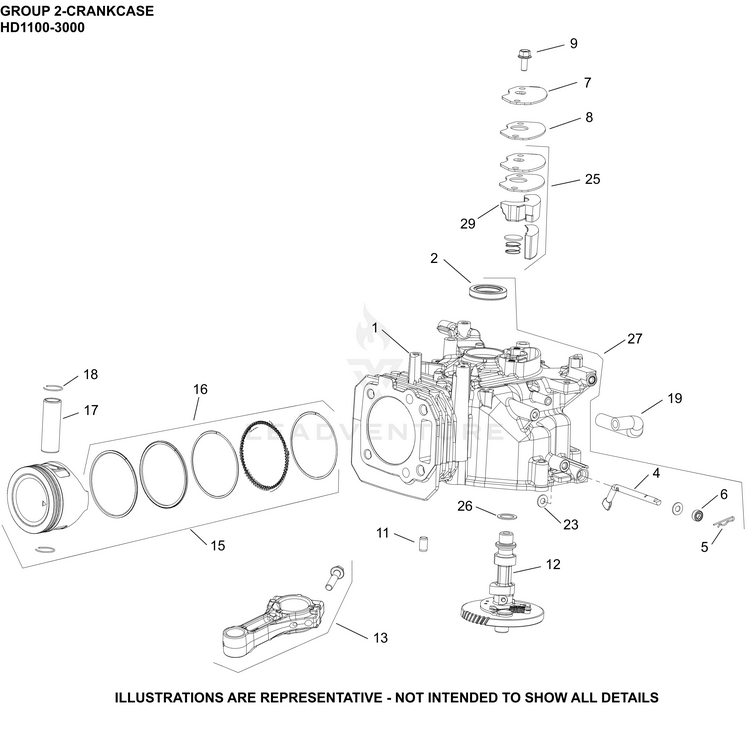

02 CrankCase

KIT, CRANKCASE After S/N 5119100001 KOH-14 561 26-S

SEAL, OIL KOH-17 032 30-S

SHAFT, GOVERNOR CROSS KOH-14 144 02-S

CLIP, GOVERNOR SHAFT KOH-14 154 01-S

SEAL, OIL KOH-14 032 04-S

COVER, BREATHER KOH-14 096 125-S

GASKET, BREATHER COVER KOH-14 041 30-S

SCREW, HEX FLANGE (M6)-USE 25 086 159-S KOH-25 086 433-S

PIN, DOWEL (8mm) KOH-14 380 12-S

CAMSHAFT ASSEMBLY KOH-14 010 20-S

ROD, CONNECTING ASSEMBLY KOH-14 067 03-S

KIT, PISTON KOH-14 874 09-S

RING SET KOH-14 108 07-S

PIN, PISTON KOH-14 380 04-S

RETAINER, PISTON PIN KOH-14 018 03-S

HOSE, BREATHER KOH-14 123 05-S

WASHER, FLAT (DIA 13mm O.D.) KOH-14 468 30-S

KIT, BREATHER FILTER KOH-14 050 31-S

WASHER, CAMSHAFT KOH-25 468 53-S

KIT, CRANKCASE-(#1456126S) Before S/N 5119100011 KOH-14 561 25-S

FILTER, BREATHER MEDIA-USE 14 050 31-S KOH-14 050 32-S

Model: 1AHF08390

$16.00

In Stock
