Kohler Ecv740-3064 Kohler Engines Command Pro Ef Hop

Model: ECV740-3064 HOP 27HP(20.1 kw)

Back To Assemblies

Save Part Not Listed?
product name

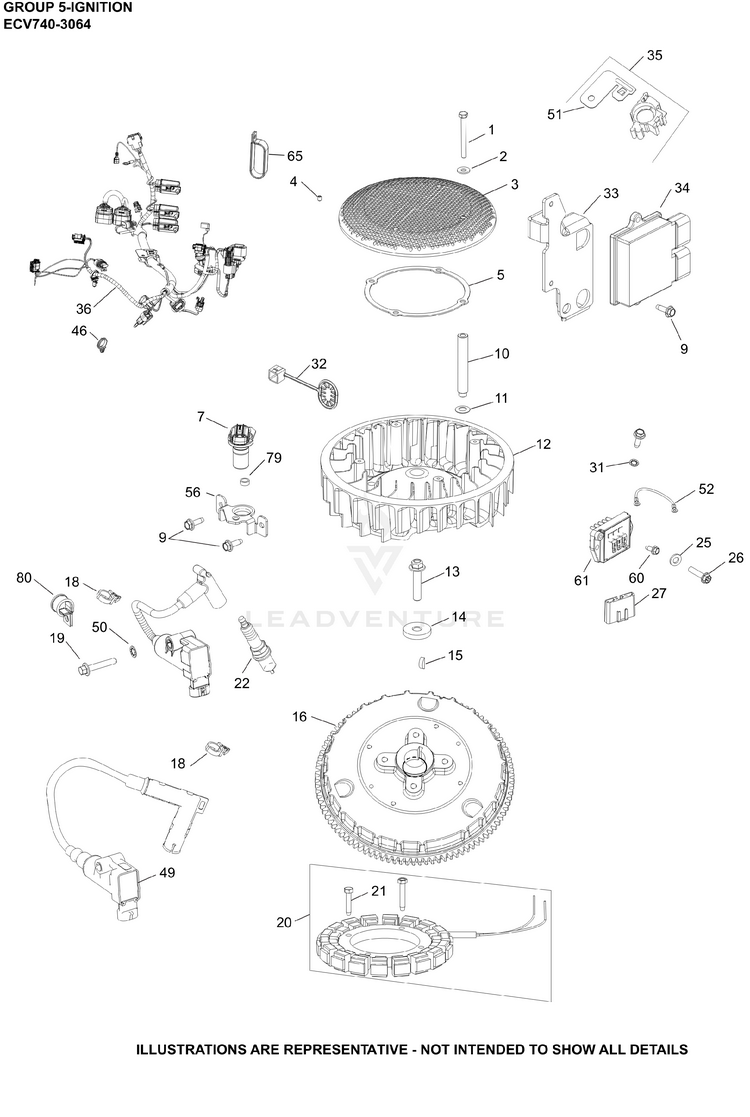

05 Ignition/Charging

...
...
1
SCREW, CAP M6X1.0X99.5 KOH-M-603100-S
...
2
WASHER, FLAT 1/4" (O.D. 5/8") KOH-X-25-53-S
...
3
SCREEN, GRASS KOH-24 162 41-S
...
4
SCREW, SKT SET #10-24X1/4" KOH-25 086 43-S
...
5
RING, SUPPORT KOH-25 141 08-S
...
7
SENSOR, SPEED KOH-25 418 01-S
...
9
SCREW, THREAD FORMING KOH-25 086 398-S
...
10
SPACER KOH-24 112 14-S
...
11
WASHER, SPRING 10 MM KOH-24 468 11-S
...
12
FAN KOH-24 157 12-S
...
13
SCREW, HEX FLANGE KOH-25 086 361-S
...
14
WASHER, FLAT 13/32"-(#2546809S) KOH-12 468 03-S
...
15
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
16

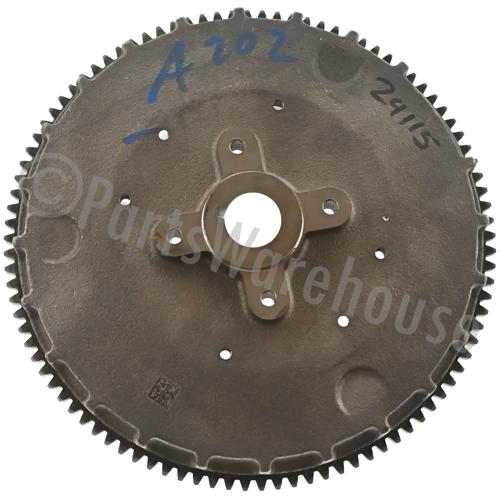

FLYWHEEL, ASSEMBLY KOH-24 025 115-S
...
18
CLIP, SNAP-IN-USE 25 018 05-S Before S/N 4924100011 KOH-25 154 27-S
...
18
CLIP KOH-62 154 05-S
...
19
SCREW, HEX FLANGE KOH-25 086 786-S
...
20
KIT, 15 / 20 AMP STATOR KOH-237878-S
...
21
SCREW, THREAD FORMING KOH-25 086 402-S
...
22
SPARK PLUG, RFI KOH-25 132 14-S
...
25
WASHER, FLAT 1/4" (O.D. 1/2") KOH-X-25-63-S
...
26
SCREW, HEX FLANGE HI-LO-USE 25 086 785-S KOH-25 086 157-S
...
27
CONNECTOR KOH-25 155 41-S
...
31
WASHER, INT TOOTH LOCK #10 KOH-X-22-9-S
...
32
CAP, CONNECTOR KOH-24 173 08-S
...
33
BRACKET, ECU KOH-24 126 197-S
...
34
MODULE, ECU ECV740 KOH-24 584 211-S
...
35
CLAMP, INSULATED KOH-25 237 35-S
...
36
HARNESS, WIRING ASSEMBLY KOH-24 176 258-S
...
46
RETAINER, WIRE HARNESS After S/N 4924100001 KOH-25 018 05-S
...
49
COIL, IGNITION - EFI (RFI/EMC) KOH-25 519 04-S
...
50
WASHER, INT TOOTH LOCK 1/4" KOH-X-22-11-S
...
51
CLAMP, INSULATED KOH-25 237 35-S
...
52
LEAD KOH-24 518 43-S
...
56
BRACKET, SENSOR KOH-25 126 18-S
...
60
SCREW, THREAD FORMING KOH-25 086 693-S
...
61
REGULATOR, RECT-(#2540349S) KOH-25 403 39-S
...
65
CLAMP, INSULATED DOUBLE KOH-25 237 45-S
...
79
SPACER KOH-25 112 27-S
...
80
CLAMP KOH-25 237 36-S
