Kohler EZT740-3000 BASIC 25 HP

Model: EZT740-3000 25 HP

Back To Assemblies

Save Part Not Listed?
product name

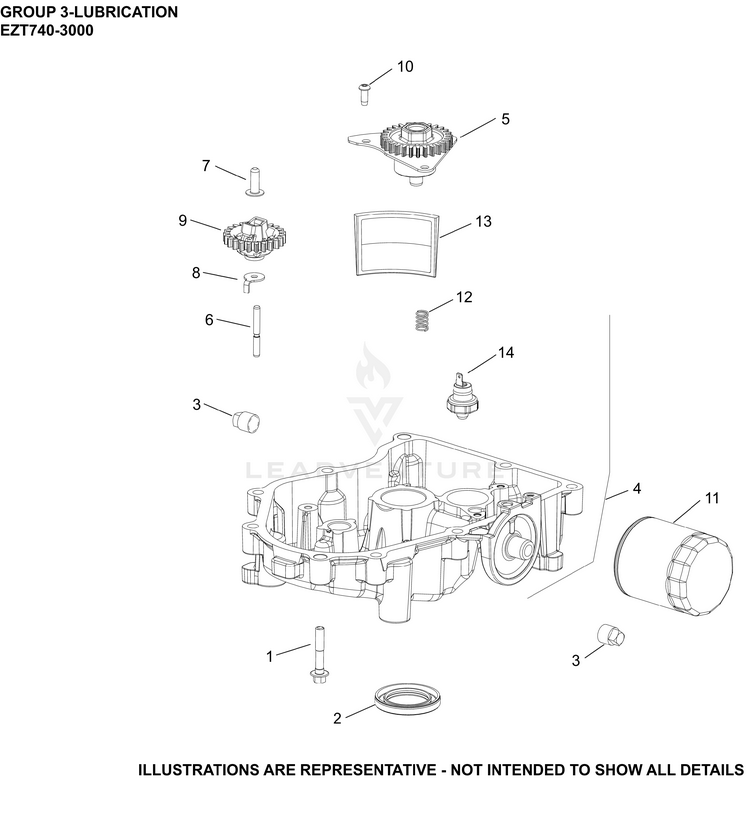

03 Lubrication

...
...
1
SCREW, FLG M8X1.25X45 KOH-24 086 17-S
...
2
OIL SEAL KOH-25 032 06-S
...
3
PLUG, SQ HD PIPE 3/8" KOH-25 139 57-S
...
4
OIL PAN ASSEMBLY, (ROLLER BURNISHED) KOH-32 199 34-S
...
5
PUMP ASSEMBLY, OIL KOH-32 393 18-S
...
6
SHAFT, GOVERNOR GEAR KOH-12 144 02-S
...
7
PIN, GOVERNOR REGULATING KOH-12 380 01-S
...
8
TAB, LOCKING KOH-24 448 02-S
...
9
KIT, GOVERNOR GEAR KOH-32 310 02-S
...
10
SCREW, BUTTON HEAD KOH-25 086 792-S
...
11
OIL FILTER KOH-52 050 02-S
...
12
SPRING, COMPRESSION KOH-24 089 74-S
...
13
SCREEN, OIL KOH-32 162 06-S
...
14
SENSOR, OIL PSI BEFORE S/N 5205600011 KOH-25 099 27-S
...
NI
SWITCH, OIL PRESSURE(NC 3-6 PSI TO OPEN) AFTER S/N 5205600001 KOH-25 099 42-S
