Kohler ECV980-2012 TORO 37 HP

Model: ECV980-2012 37 HP

Back To Assemblies

Save Part Not Listed?
product name

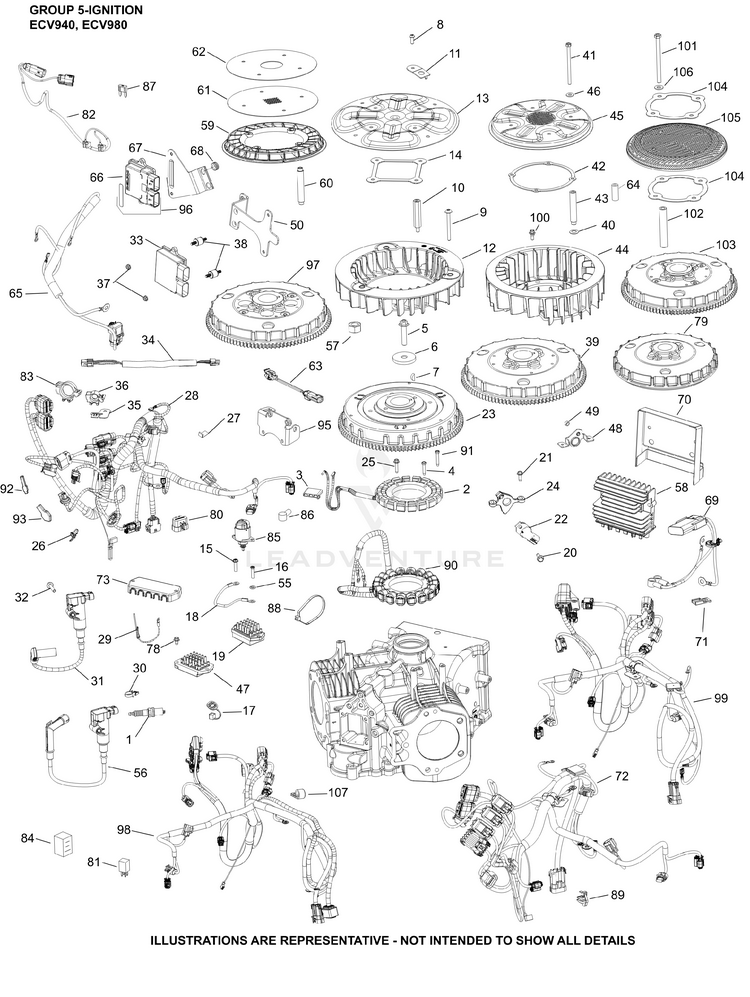

05 Ignition/Charging

...
...
1
PLUG, SPARK KOH-62 132 04-S
...
2
KIT, 15 / 20 AMP STATOR KOH-237878-S
...
3
CONNECTOR KOH-25 155 41-S
...
4
SCREW, THREAD FORMING KOH-25 086 402-S
...
5
SCREW, HEX FLANGE KOH-25 086 361-S
...
6
WASHER, FLAT 13/32" KOH-62 468 01-S
...
7
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
9
SCREW, TRS HD M6X1.0X65 KOH-25 086 132-S
...
10
STUD, GRASS SCREEN KOH-62 072 01-S
...
11
PLATE, GRASS SCREEN WASHER KOH-62 146 15-S
...
12
KIT, FAN AND SPACERS KOH-62 157 02-S
...
13
KIT, GRASS SCREEN KOH-62 162 08-S
...
14
STIFFENER, GRASS SCREEN KOH-62 442 01-S
...
15
SCREW, HEX FLANGE HI-LO-USE 25 086 785-S KOH-25 086 157-S
...
17
CAP, CONNECTOR KOH-24 173 08-S
...
18
KIT, GROUND, LEAD KOH-24 518 12-S
...
20
SCREW, THREAD FORMING KOH-25 086 396-S
...
21
SCREW, THREAD FORMING KOH-25 086 398-S
...
22
SENSOR, SPEED KOH-25 418 01-S
...
23
FLYWHEEL ASSEMBLY KOH-62 025 12-S
...
24
BRACKET, SENSOR SPEED KOH-25 126 16-S
...
25
SCREW, THREAD FORMING KOH-25 086 472-S
...
25
SCREW, THREAD FORMING KOH-25 086 473-S
...
26
TIE, WIRE KOH-25 454 09-S
...
27
CLIP, BLOWER HOUSING KOH-62 154 09-S
...
28
HARNESS, WIRING ASSEMBLY - EFI KOH-62 176 19-S
...
30
CLIP KOH-62 154 05-S
...
31
COIL, IGNITION - EFI KOH-25 519 02-S
...
32
SCREW, HEX FLANGE KOH-25 086 786-S
...
33
MODULE, ECU ECV980 KOH-62 584 59-S
...
34
HARNESS, EFI DIAGNOSTIC EXTENSION KOH-25 176 17-S
...
47
REGULATOR, RECTIFIER KOH-25 403 32-S
