Kohler ECV940-3016 SCAG 33 HP

Model: ECV940-3016 SCAG 33 HP

Back To Assemblies

Save Part Not Listed?
product name

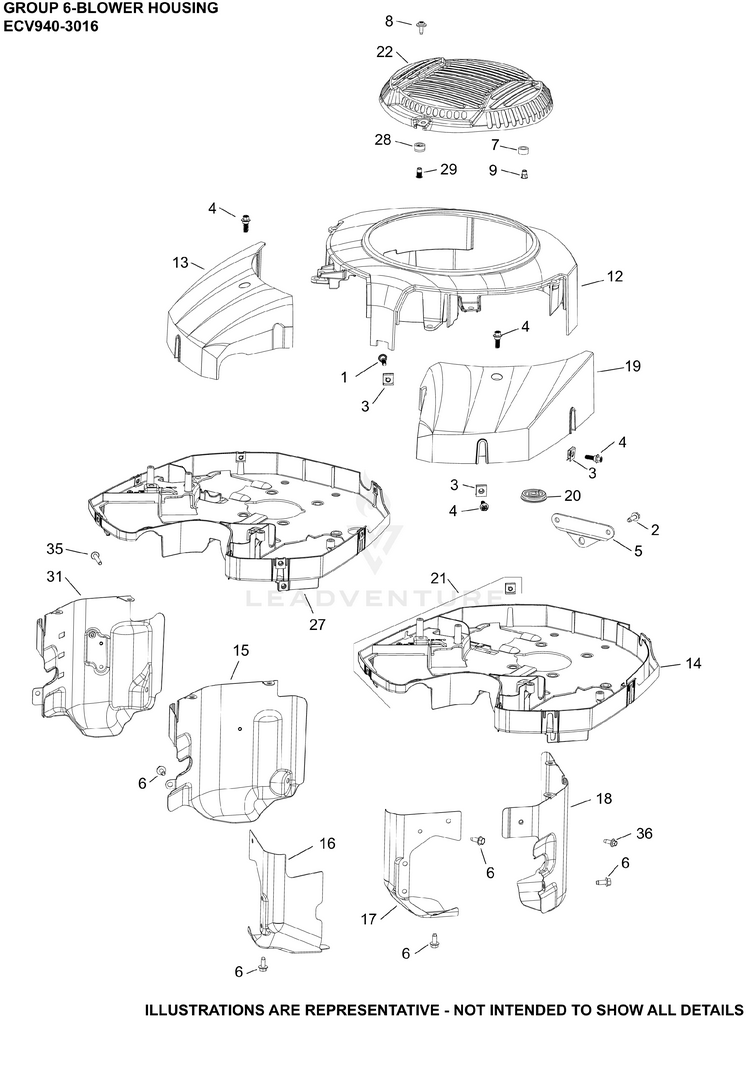

06 Blower Housing

...
...
1
SCREW, SHD THD FRM M6X1X26 KOH-20 086 06-S
...
2
SCREW, THREAD FORMING KOH-25 086 396-S
...
3
CLIP, BAFFLE MOUNTING KOH-25 154 37-S
...
4
SCREW, SHD THD FRM KOH-62 086 10-S
...
5
STRAP, LIFTING KOH-62 445 05-S
...
6
SCREW, THREAD FORMING KOH-25 086 397-S
...
7
SPACER Before S/N 4704100011 KOH-25 112 30-S
...
8
SCREW, SEMS KOH-25 086 160-S
...
9
INSERT, THREADED (M5) Before S/N 4730500011 KOH-25 332 19-S
...
12
KIT, BLOWER HOUSING KOH-62 027 19-S
...
13
SHROUD, #1 CYLINDER KOH-62 424 17-S
...
14
SHROUD AND CLIP ASSEMBLY Before S/N 4528600011 KOH-62 424 20-S
...
14
SHROUD AND CLIP ASSEMBLY KOH-62 424 29-S
...
15
BAFFLE, BARREL (#1 CYL)-USE 62 063 64-S KOH-62 063 48-S
...
16
BAFFLE, VALLEY #1 CYLINDER KOH-62 063 37-S
...
17
BAFFLE, VALLEY #2 CYLINDER KOH-62 063 40-S
...
18
BAFFLE, BARREL (#2 CYL) KOH-62 063 32-S
...
19
SHROUD, #2 CYLINDER KOH-62 424 18-S
...
20
CGROMMET, WIRING HARNESS KOH-62 313 09-S
...
21
SHROUD AND CLIP ASSEMBLY After S/N 4528600001 & Before S/N 4813100011 KOH-62 424 20-S
...
22
GUARD, GRASS SCREEN (METAL) KOH-25 314 04-S
...
27
SHROUD AND CLIP ASSEMBLY After S/N 4813100001 KOH-62 424 30-S
...
28
SPACER After S/N 4704100001 KOH-25 112 30-S
...
29
INSERT, THREADED (M5) After S/N 4730500001 KOH-25 332 19-S
...
31
BAFFLE, BARREL (#1 CYL)-USE 62 063 64-S After S/N 4813100001 KOH-62 063 48-S
...
35
SCREW, HEX FLANGE-USE 25 086 786-S KOH-25 086 679-S
...
36
SCREW, THREAD FORMING KOH-25 086 404-S
