Kohler ECV940-3016 SCAG 33 HP

Model: ECV940-3016 SCAG 33 HP

Back To Assemblies

Save Part Not Listed?
product name

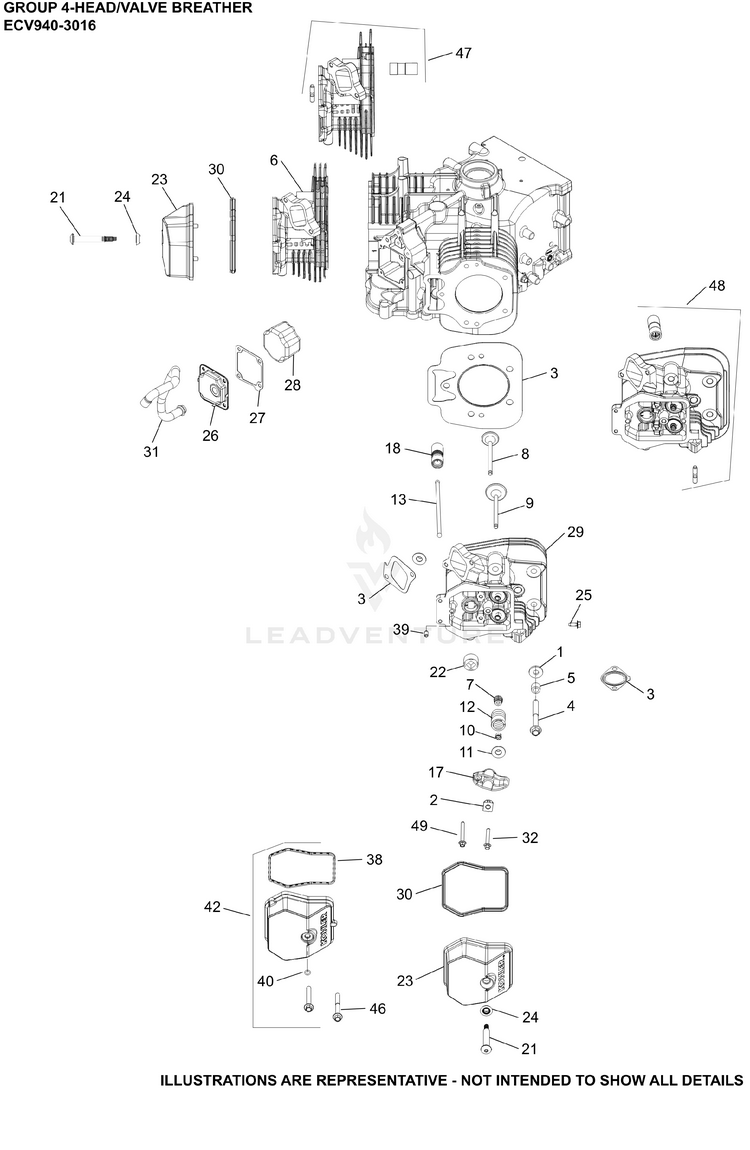

04 CylinderHead/Breather

...
...
1
WASHER, FLAT 13/32" KOH-12 468 05-S
...
2
PIVOT, ROCKER ARM KOH-24 599 02-S
...
3
KIT, CYLINDER HEAD GASKET KOH-62 841 01-S
...
4
SCREW, FLG M10X1.5X90 KOH-62 086 08-S
...
5
SPACER KOH-62 112 03-S
...
6
KIT, #1 CYLINDER HEAD COMPLETE Before S/N 4904200011 KOH-62 818 01-S
...
6
KIT, #1 CYLINDER HEAD COMPLETE After S/N 4904200001 & Before S/N 5030600011 KOH-62 818 01-S
...
7
SEAL, VALVE BAND KOH-25 032 14-S
...
8
VALVE, EXHAUST KOH-62 016 02-S
...
9
VALVE, INTAKE KOH-62 017 01-S
...
10
KIT, RETAINER KOH-12 755 03-S
...
11
CAP, VALVE SPRING KOH-25 173 28-S
...
12
SPRING, VALVE KOH-62 089 54-S
...
13
ROD, PUSH KOH-12 411 04-S
...
17
ARM, ROCKER KOH-25 186 01-S
...
18
KIT, LIFTER KOH-25 351 11-S
...
21
SCREW, SHOULDER KOH-25 086 272-S
...
22
PLUG, PIPE 3/4 NPTF SQUARE Before S/N 4708900011 KOH-25 139 89-S
...
22
PLUG, PIPE 3/4 NPTF SQUARE After S/N 4708900001 KOH-25 139 89-S
...
23
KIT, VALVE COVER ASSEMBLY Before S/N 4904200011 KOH-62 096 50-S
...
24
GROMMET, VALVE COVER SCREW KOH-62 313 07-S
...
25
SCREW, THREAD FORMING KOH-25 086 397-S
...
26
KIT, BREATHER ASSEMBLY KOH-62 033 06-S
...
27
GASKET, BREATHER KOH-62 041 27-S
...
28
FILTER, BREATHER KOH-62 050 11-S
...
29
KIT, #2 CYLINDER HEAD COMPLETE Before S/N 4904200011 KOH-62 818 02-S
...
29
KIT, #2 CYLINDER HEAD COMPLETE After S/N 4904200001 & Before S/N 5030600011 KOH-62 818 02-S
...
30
SEAL, PLASTIC VALVE COVER (BLACK) KOH-62 032 20-S
...
31
HOSE, BREATHER KOH-62 326 32-S
...
32
SCREW, HEX FLANGE Before S/N 4901800011 KOH-25 086 777-S
...
38
SEAL, ALUMINUM VALVE COVER (BLUE) KOH-62 032 22-S
...
39
PIN, ROLL After S/N 4904200001 KOH-25 380 23-S
...
40
O-RING, VALVE COVER SCREW After S/N 4904200001 KOH-25 153 23-S
...
42
KIT, VALVE COVER ASSEMBLY After S/N 4904200001 KOH-62 096 50-S
...
42
KIT, VALVE COVER ASSEMBLY After S/N 4904200001 KOH-62 096 50-S
...
46
SCREW, HEX FLANGE After S/N 4904200001 KOH-25 086 728-S
...
47
KIT, #1 CYLINDER HEAD COMPLETE After S/N 5030600001 KOH-62 818 01-S
...
48
KIT, #2 CYLINDER HEAD COMPLETE After S/N 5030600001 KOH-62 818 02-S
...
49
SCREW, HEX FLANGE After S/N 5104600001 KOH-25 086 777-S
...
NI
SCREW, HEX FLANGE After S/N 4901800001 & Before S/N 5104600011 KOH-25 086 777-S
