Kohler ECV749-3042 MTD

Model: ECV749-3042 MTD

Back To Assemblies

Save Part Not Listed?
product name

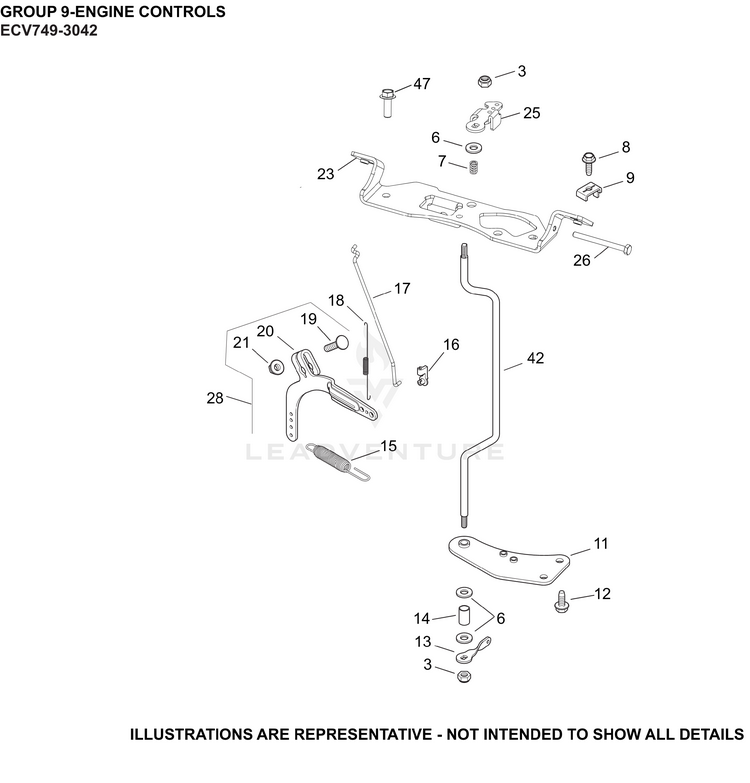

09 Engine Controls

...
...
3
NUT, LOCK M6X1.0 KOH-M-647060-S
...
6
WASHER, FLAT 1/4" KOH-X-25-72-S
...
7
SPRING, THROTTLE SHAFT KOH-24 089 20-S
...
9
CLAMP, CABLE KOH-25 237 41-S
...
11
BRACKET, THROTTLE SHAFT KOH-24 126 162-S
...
12
SCREW, THREAD FORMING KOH-25 086 396-S
...
13
LEVER, THROTTLE CONTROL KOH-24 090 12-S
...
14
SPACER KOH-24 112 10-S
...
15
SPRING, GOVERNOR (CLEAR) KOH-24 089 50-S
...
16
BUSHING, THROTTLE LINKAGE KOH-25 158 11-S
...
17
LINKAGE, THROTTLE KOH-24 079 33-S
...
18
SPRING, LINKAGE KOH-24 089 01-S
...
19
BOLT, RD HD SQ NECK M6X1.0X25 KOH-24 211 03-S
...
20
LEVER, GOVERNOR ASSEMBLY KOH-24 090 69-S
...
21
NUT, FLG M6X1.0 KOH-M-641060-S
...
23
BRACKET, CONTROL KOH-24 126 231-S
...
25
LEVER, THROTTLE CONTROL KOH-24 090 71-S
...
26
SCREW, HEX HEAD KOH-25 086 428-S
...
28
LEVER, GOVERNOR ASSEMBLY KOH-24 090 69-S
...
42
THROTTLE CONTROL SHAFT KOH-24 144 56-S
...
52
SCREW, THREAD FORMING-(#DSC) KOH-25 086 651-S
...
53
SCREW, HI-LOW KOH-25 086 787-S
