Kohler ECV749-3042 MTD

Model: ECV749-3042 MTD

Back To Assemblies

Save Part Not Listed?
product name

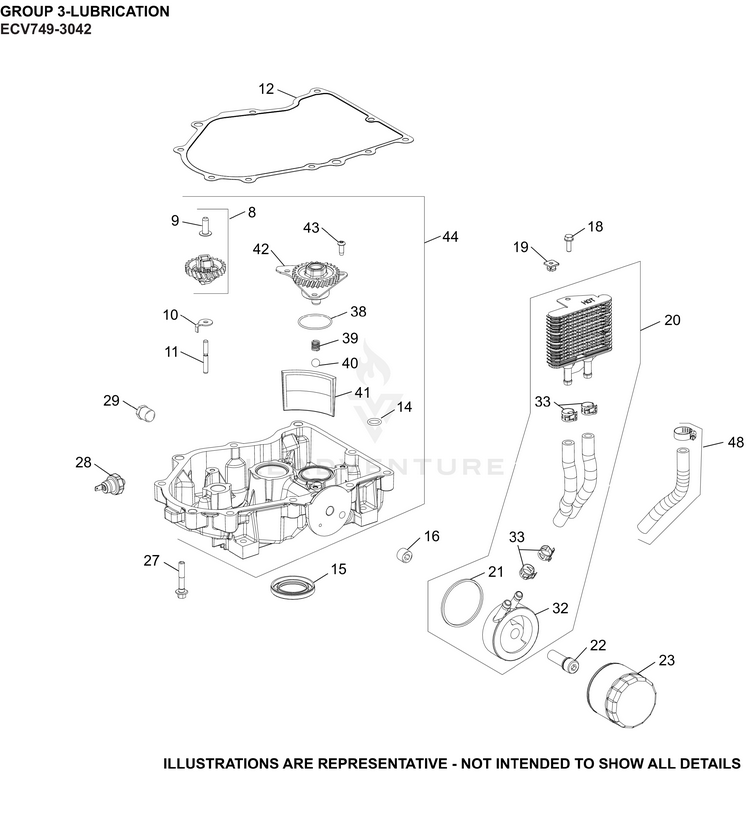

03 Lubrication

...
...
8
KIT, GOVERNOR GEAR W/PIN KOH-24 043 12-S
...
9
PIN, GOVERNOR REGULATING KOH-12 380 01-S
...
10
TAB, LOCKING KOH-24 448 02-S
...
11
SHAFT, GOVERNOR GEAR KOH-12 144 02-S
...
12
GASKET, OIL PAN Before S/N 4923000011 KOH-24 041 66-S
...
12
KIT, OIL PAN GASKET After S/N 4923000001 KOH-24 041 94-S
...
15
OIL SEAL KOH-25 032 06-S
...
16
PLUG, PIPE CTSK 3/8" KOH-25 139 62-S
...
19
NUT, PLASTIC - BLACK KOH-25 100 37-S
...
20
KIT, OIL COOLER KOH-24 594 69-S
...
21
O-RING, OIL COOLER KOH-24 153 21-S
...
23
OIL FILTER KOH-12 050 01-S
...
24
O-RING (.5" DIA) KOH-12 153 04-S
...
26
SCREW, HEX FLANGE KOH-25 086 317-S
...
27
SCREW, FLG M8X1.25X45 KOH-24 086 17-S
...
28
SENSOR, OIL PSI KOH-25 099 27-S
...
29
PLUG, HD PIPE 3/8" KOH-52 139 02-S
...
32
ADAPTER,OIL FILTER (CV EFI)-(#DSC) KOH-24 029 80-S
...
33
CLAMP, HOSE LOW PROFILE KOH-24 237 16-S
...
38
O-RING (1.78" DIA) KOH-12 153 05-S
...
39
SPRING, COMPRESSION KOH-24 089 74-S
...
40
PRESSURE RELIEF BALL KOH-25 194 03-S
...
41
SCREEN, OIL KOH-32 162 06-S
...
42
PUMP, OIL ASSEMBLY KOH-24 393 89-S
...
43
SCREW, BUTTON HEAD KOH-25 086 792-S
...
44
KIT, OIL PAN ASSEMBLY-USE 24 199 41-S Before S/N 4923000011 KOH-24 199 35-S
...
44
PAN, ASSEMBLY OIL (SERVICE)-(#2419943S) After S/N 4923000001 KOH-24 199 39-S
...
48
KIT, HOSE 140MM KOH-24 326 17-S
...
67
KIT, OIL FILTER NIPPLE KOH-24 136 10-S
...
68
SCREW, HEX HEAD KOH-25 086 784-S
