Kohler ECH940-3000 BASIC (HDAC) 33 HP

Model: ECH940-3000 (HDAC) 33 HP

Back To Assemblies

Save Part Not Listed?
product name

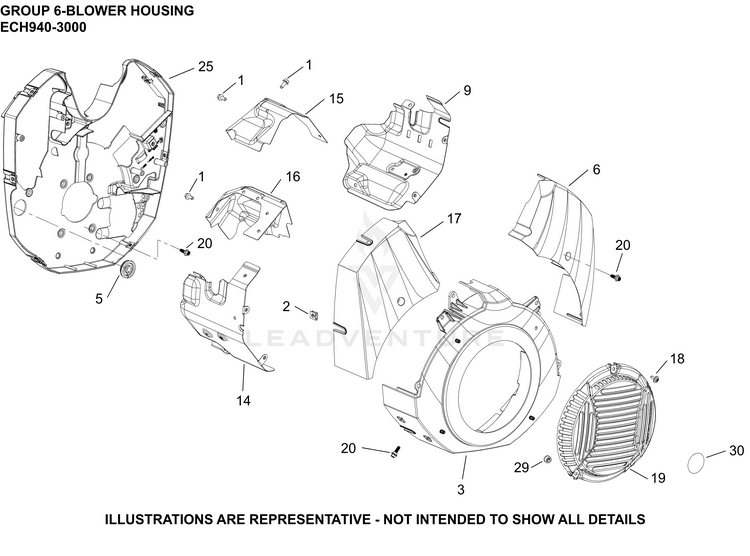

06 Blower Housing

...
...
1
SCREW, THREAD FORMING KOH-25 086 397-S
...
2
CLIP, BAFFLE MOUNTING KOH-25 154 37-S
...
3
KIT, BLOWER HOUSING KOH-62 027 19-S
...
5
CGROMMET, WIRING HARNESS KOH-62 313 09-S
...
6
SHROUD, #1 CYLINDER KOH-62 424 17-S
...
9
BAFFLE, BARREL (#1 CYL)-USE 62 063 64-S KOH-62 063 48-S
...
14
BAFFLE, BARREL (#2 CYL) KOH-62 063 32-S
...
15
BAFFLE, VALLEY #1 CYLINDER KOH-62 063 37-S
...
16
BAFFLE, VALLEY #2 CYLINDER KOH-62 063 40-S
...
17
SHROUD, #2 CYLINDER KOH-62 424 18-S
...
18
SCREW, SEMS KOH-25 086 160-S
...
19
GUARD, GRASS SCREEN (METAL) KOH-25 314 04-S
...
20
SCREW, SHD THD FRM KOH-62 086 10-S
...
25
SHROUD AND CLIP ASSEMBLY KOH-62 424 30-S
...
29
SPACER KOH-25 112 30-S
...
30
INSERT, THREADED (M5) KOH-25 332 19-S
