Kohler ECH730-3084 MILLER ELECTRIC Command Pro EFI

Model: ECH730-3084 MILLER ELECTRIC

Back To Assemblies

Save Part Not Listed?
product name

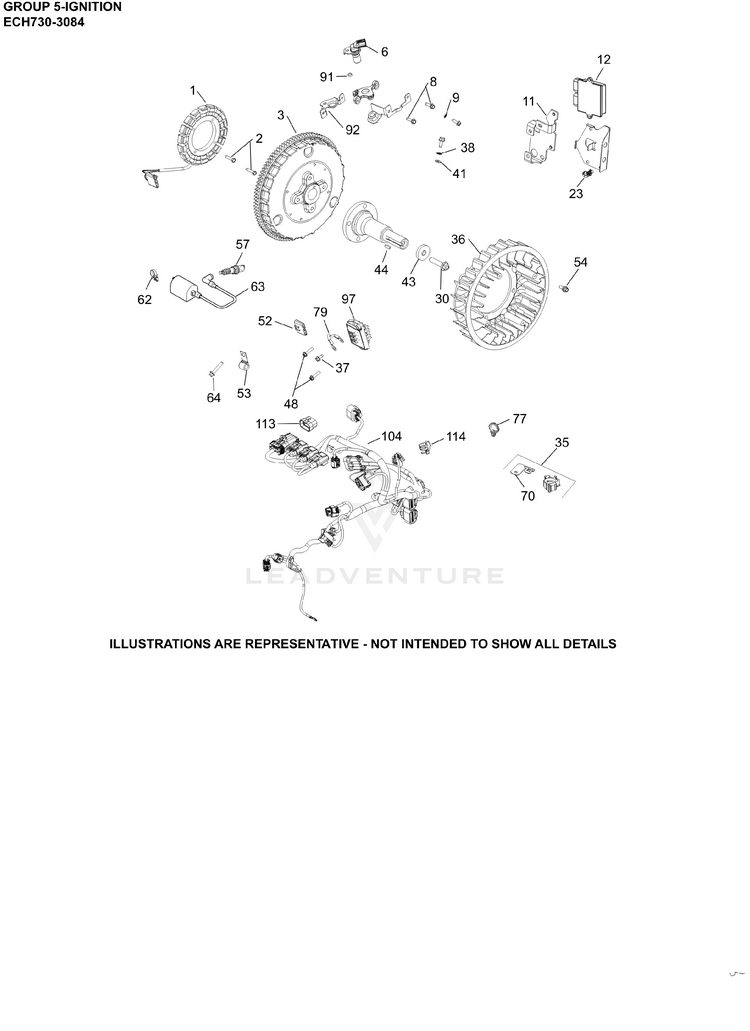

05 Ignition/Charging

...
...
1
KIT, 15 / 20 AMP STATOR KOH-237878-S
...
2
SCREW, THREAD FORMING KOH-25 086 402-S
...
3
FLYWHEEL, ASSEMBLY KOH-24 025 115-S
...
6
SENSOR, SPEED KOH-25 418 01-S
...
8
SCREW, THREAD FORMING KOH-25 086 398-S
...
9
WASHER, INT TOOTH LOCK #10 KOH-X-22-9-S
...
11
BRACKET, ECU KOH-24 126 197-S
...
12
MODULE, ECU MT05.3 SERVICE KOH-25 584 33-S
...
23
TIE, WIRE KOH-25 454 09-S
...
30
SCREW, HEX FLANGE KOH-25 086 361-S
...
35
CLAMP, INSULATED KOH-25 237 35-S
...
36
KIT, FLYWHEEL FAN KOH-24 755 253-S
...
37
SCREW, THREAD FORMING KOH-25 086 693-S
...
38
WASHER, INT TOOTH LOCK 1/4" KOH-X-22-11-S
...
41
WASHER, FLAT 1/4" (O.D. 1/2") KOH-X-25-63-S
...
43
WASHER, FLAT 13/32"-(#2546809S) KOH-12 468 03-S
...
44
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
48
SCREW, HEX FLANGE HI-LO-USE 25 086 785-S KOH-25 086 157-S
...
52
CONNECTOR KOH-25 155 41-S
...
53
CLAMP KOH-25 237 36-S
...
54
BOLT, SHOULDER KOH-25 086 47-S
...
57
PLUG, SPARK (STD) KOH-12 132 02-S
...
62
CLIP, SNAP-IN-USE 25 018 05-S Before S/N 4924100011 KOH-25 154 27-S
...
62
CLIP KOH-62 154 05-S
...
63
COIL, IGNITION - EFI KOH-25 519 02-S
...
64
SCREW, HEX FLANGE KOH-25 086 786-S
...
70
CLAMP, INSULATED KOH-25 237 35-S
...
77
RETAINER, WIRE HARNESS After S/N 4924100001 KOH-25 018 05-S
...
79
LEAD KOH-24 518 43-S
...
91
SPACER KOH-25 112 27-S
...
92
BRACKET, SENSOR KOH-25 126 18-S
...
97
REGULATOR, RECT-(#2540349S) BEFORE S/N 5224300011 KOH-25 403 39-S
...
104
HARNESS, WIRING (B-BAY, EFI-ETB) KOH-24 176 278-S
...
113
CAP, DIAGNOSTIC (8-WAY) KOH-25 173 57-S
...
114
TIE, WIRE EDGE FIXED KOH-25 454 14-S
...
97
REGULATOR, RECTIFIER (20-30AMP,FW W/OVP) AFTER S/N 5224300001 KOH-25 403 48-S
