Kohler ECH630-3052 John Deere Engine

Model: ECH630-3052 John Deere

Back To Assemblies

Save Part Not Listed?
product name

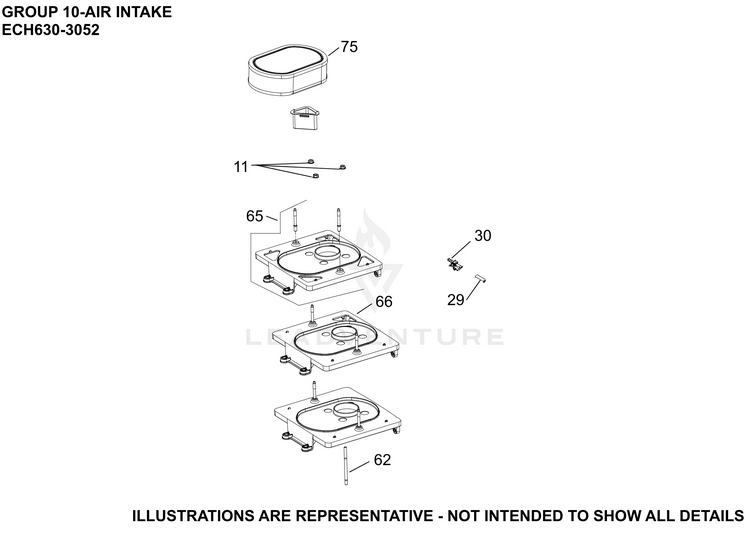

10 Air Intake

...
...
11
NUT, FLG M6X1.0 KOH-M-641060-S
...
29
CAP, MASKING KOH-25 173 33-S
...
30
CONNECTOR, EVAPORATIVE KOH-25 155 51-S
...
62
STUD KOH-25 072 35-S
...
65
BASE, AIR CLEANER ASSEMBLY (LPAC-ETB) KOH-24 094 128-S
...
66
BASE, AIR CLEANER ASSEMBLY (LPAC-ETB) KOH-24 094 129-S
...
75
ELEMENT, AIR FILTER (ETB) KOH-24 083 17-S
