Kohler ECH630-3052 John Deere Engine

Model: ECH630-3052 John Deere

Back To Assemblies

Save Part Not Listed?
product name

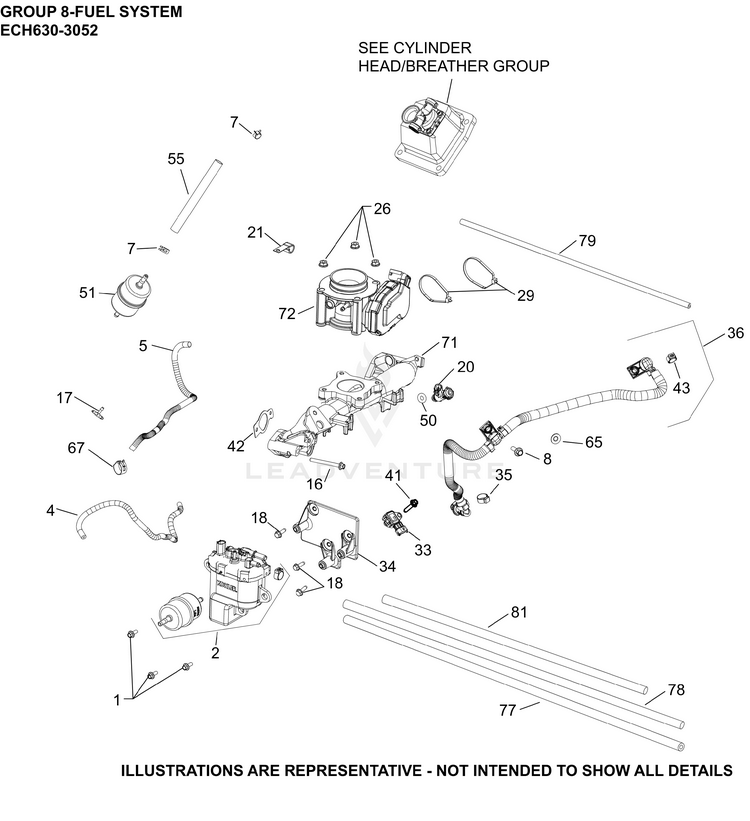

08 Fuel System

...
...
1
SCREW, FLG M6X1.0X16 KOH-M-639016-S
...
2
KIT, FUEL PUMP MODULE KOH-25 393 19-S
...
4
HOSE, EVAPORATIVE (15.0) KOH-24 326 119-S
...
5
SLEEVE, ANTI-ABRASION KOH-25 431 22-S
...
7
CLAMP, HOSE KOH-25 237 31-S
...
8
SCREW, FLG M6x1.0x20 KOH-M-651020-S
...
16
SCREW, FLG M6X1.0X60 KOH-M-651060-S
...
17
TEE CONNECTOR KOH-25 155 56-S
...
18
SCREW, THREAD FORMING KOH-25 086 413-S
...
20
INJECTOR, FUEL KOH-25 331 01-S
...
21
CLIP, CABLE KOH-25 154 04-S
...
26
NUT, FLG M6X1.0 KOH-M-641060-S
...
29
TIE KOH-25 454 07-S
...
33
SENSOR, T-MAP KOH-25 418 13-S
...
34
BAFFLE, FUEL MODULE KOH-24 063 107-S
...
35
CLAMP, HOSE KOH-24 237 17-S
...
36
FUEL HOSE ASSEMBLY,ECH680-ECH749 KOH-24 399 35-S
...
41
SCREW, FLG M6X1.0X25 KOH-25 086 124-S
...
42
KIT, INTAKE MANIFOLD GASKET-(#24755452S) KOH-24 041 79-S
...
43
CLAMP, OETIKER KOH-25 237 28-S
...
50
KIT, FUEL INJECTOR O-RING KOH-25 755 41-S
...
51
FILTER, FUEL KOH-24 050 13-S
...
55
SLEEVE, FUEL LINE KOH-25 431 12-S
...
65
CLIP, RETAINER KOH-25 154 31-S
...
67
CLAMP, SPRING HOSE KOH-25 237 18-S
...
71
MANIFOLD, INTAKE - ETB HORIZONTAL KOH-24 164 286-S
...
72
BODY, ELECTRONIC THROTTLE ASM 30 DIA KOH-25 583 26-S
...
77
HOSE, FUEL LOW-PERMEATION KOH-25 111 162-S
...
78
SLEEVE, ANTI ABRASION KOH-25 431 44-S
...
79
HOSE, EVAPORATIVE KOH-25 326 108-S
...
81
SLEEVE, ANTI ABRASION KOH-25 431 32-S
