Kohler ECH630-3052 John Deere Engine

Model: ECH630-3052 John Deere

Back To Assemblies

Save Part Not Listed?
product name

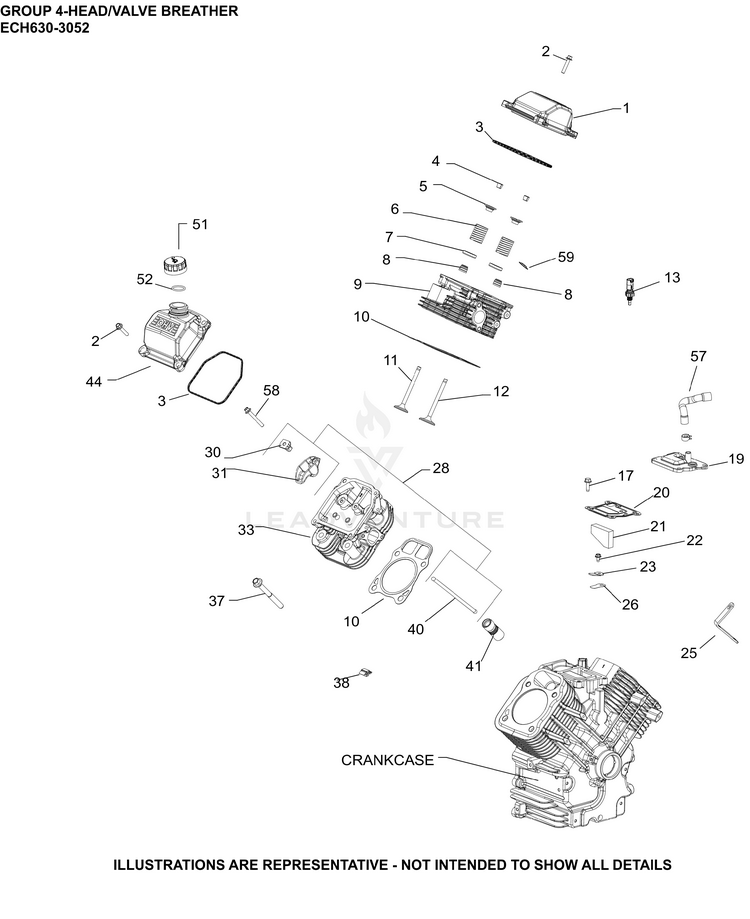

04 CylinderHead/Breather

...
...
1
KIT, VALVE COVER-PLAIN (PLASTIC) KOH-24 755 141-S
...
2
SCREW, HEX FLANGE (M6 X 31.625 DOG PT) KOH-25 086 797-S
...
3
O-RING (YELLOW), VALVE CO-(#2515324S) KOH-24 153 30-S
...
4
KIT, RETAINER KOH-12 755 03-S
...
5
CAP, VALVE SPRING KOH-25 173 28-S
...
6
SPRING, VALVE KOH-24 089 02-S
...
7
RETAINER, SPRING KOH-235011-S
...
8
SEAL, VALVE BAND KOH-25 032 14-S
...
9
KIT, CYLINDER HEAD COMPLETE (#1) KOH-24 818 03-S
...
10
KIT,GSKT CYL HD(C22-23674CC)-(#2484106S) KOH-24 841 02-S
...
11
VALVE, EXHAUST KOH-32 016 01-S
...
11
VALVE, EXHAUST (.25) KOH-32 016 02-S
...
12
VALVE, INTAKE (STD) KOH-24 017 01-S
...
12
VALVE, INTAKE (.25)-(#DSC) KOH-24 017 02-S
...
13
SENSOR, TEMPERATURE KOH-25 418 02-S
...
17
SCREW, THREAD FORMING KOH-25 086 758-S
...
19
COVER, BREATHER KOH-24 096 165-S
...
20
GASKET, BREATHER KOH-24 041 67-S
...
21
FILTER, BREATHER KOH-24 050 11-S
...
22
SCREW, FLG THD FRM M5X.8X10 KOH-M-545010-S
...
23
RETAINER, REED KOH-66 018 04-S
...
25
STRAP, LIFTING KOH-25 445 06-S
...
26
REED, BREATHER KOH-24 402 06-S
...
28
KIT, VALVE TRAIN KOH-24 755 66-S
...
30
PIVOT, ROCKER ARM KOH-24 599 02-S
...
31
ARM, ROCKER KOH-25 186 01-S
...
33
KIT, CYLINDER HEAD COMPLETE (#2) KOH-24 818 04-S
...
37
SCREW, FLG M10X1.5X90 KOH-62 086 08-S
...
38
CLIP, O2 SENSOR KOH-25 154 22-S
...
40
ROD, PUSH KOH-24 411 05-S
...
41
KIT, LIFTER KOH-25 351 11-S
...
44
KIT, VALVE COVER-OIL FILL KOH-24 755 140-S
...
51
KIT, OIL FILL CAP (YELLOW) KOH-24 755 46-S
...
52
O-RING, DIPSTICK KOH-25 153 02-S
...
57
HOSE, BREATHER (ETB HORIZONTAL) KOH-24 326 160-S
...
58
SCREW, HEX FLANGE KOH-25 086 777-S
...
59
RETAINER, VALVE GUIDE (KM) KOH-24 018 05-S
