Kohler ECH630-3052 John Deere Engine

Model: ECH630-3052 John Deere

Back To Assemblies

Save Part Not Listed?
product name

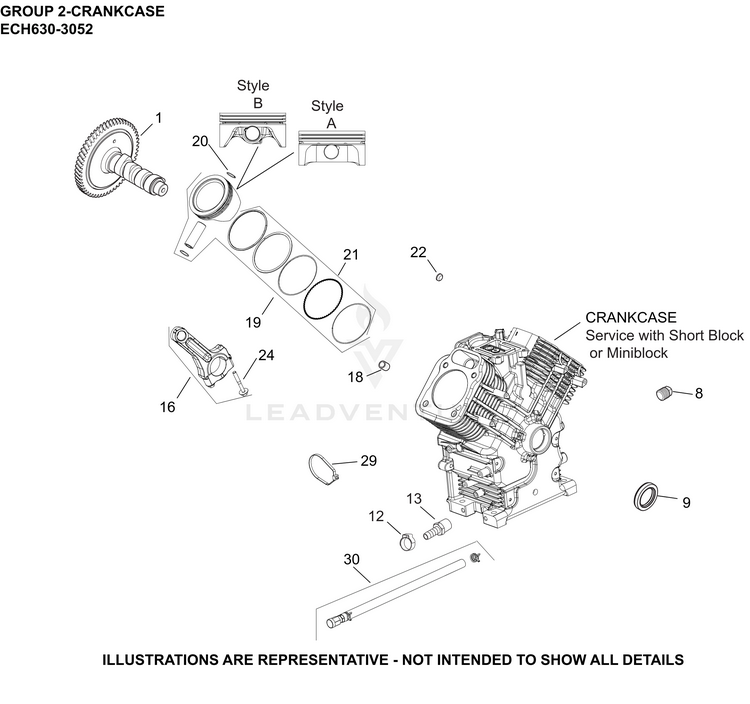

02 CrankCase

...
...
1
KIT, CAMSHAFT-USE 24 012 35-S KOH-24 012 29-S
...
8
PLUG, SQ HD PIPE 3/8" KOH-25 139 57-S
...
9
SEAL, OIL (HELIX LIP) KOH-24 032 19-S
...
12
CLAMP KOH-25 237 02-S
...
13
FITTING, BARBED KOH-24 294 22-S
...
16
ROD, ASSEMBLY CONNECTING KOH-25 067 04-S
...
18
PIN, LOCATING KOH-24 380 16-S
...
19
KIT, PISTON (STD) STYLE B KOH-24 874 58-S
...
19
KIT, PISTON (.08) STYLE B KOH-24 874 59-S
...
19
KIT, PISTON (.25) STYLE B KOH-24 874 60-S
...
19
KIT, PISTON (.50) STYLE B KOH-24 874 61-S
...
20
RETAINER, PISTON PIN KOH-24 018 01-S
...
21
RING SET (STD) STYLE B KOH-24 108 26-S
...
21
RING SET (.08) STYLE B KOH-24 108 27-S
...
21
RING SET (.25) STYLE B KOH-24 108 28-S
...
21
RING SET (.50) STYLE B KOH-24 108 29-S
...
22
PLUG, CUP KOH-52 139 09-S
...
24
KIT, ROD BOLTS KOH-25 086 677-S
...
29
TIE KOH-25 454 07-S
...
30
HOSE, OIL ASSEMBLY KOH-25 326 116-S
