Kohler ECH630-3036 JOHN DEERE

Model: ECH630-3036 19HP (14.2 kw)

Back To Assemblies

Save Part Not Listed?
product name

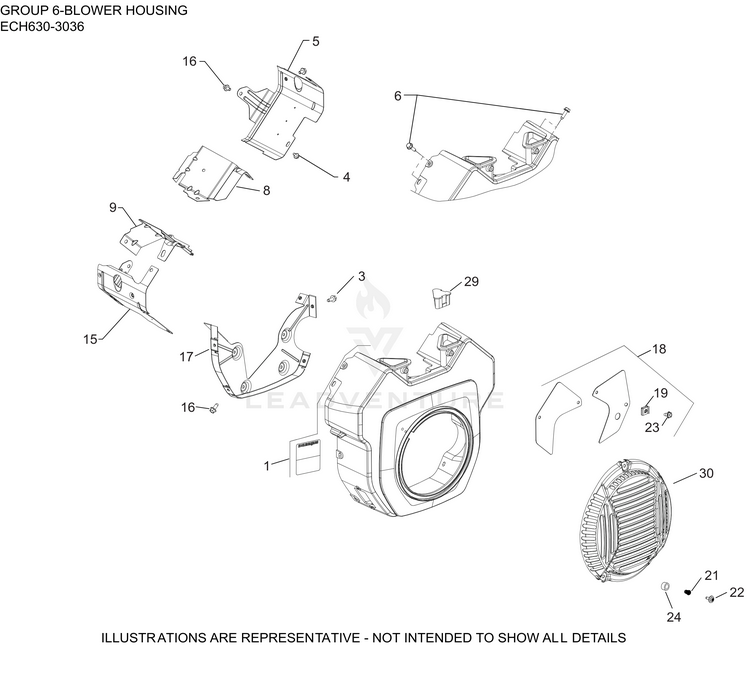

06 Blower Housing

...
...
1
KIT, BLOWER HOUSING KOH-24 027 439-S
...
3
SCREW, THREAD FORMING KOH-25 086 398-S
...
3
SCREW, THREAD FORMING-(#25086398S) KOH-25 086 426-S
...
4
SCREW, THREAD FORMING KOH-25 086 400-S
...
5
KIT, RIGHT BARREL KOH-24 063 111-S
...
6
SCREW, THREAD FORMING KOH-25 086 396-S
...
8
BAFFLE, VALLEY #1 CYLINDER KOH-24 063 114-S
...
9
BAFFLE, VALLEY #2 CYLINDER KOH-24 063 94-S
...
15
BAFFLE LEFT BARREL KOH-24 063 112-S
...
16
SCREW, THREAD FORMING KOH-25 086 397-S
...
17
PLATE, BACKING KOH-24 146 57-S
...
17
KIT, BACKING PLATE KOH-24 146 59-S
...
18
KIT, ACCESS PANEL KOH-25 755 20-S
...
19
CLIP, BAFFLE MOUNTING KOH-25 154 37-S
...
21
INSERT, THREADED (M5) KOH-25 332 19-S
...
22
SCREW, SEMS KOH-25 086 160-S
...
23
SCREW, THREAD FORMING KOH-25 086 406-S
...
24
SPACER KOH-25 112 30-S
...
29
COVER, BLOWER HOUSING KOH-24 096 160-S
...
30
GUARD, GRASS SCREEN (METAL) KOH-25 314 04-S
