Kohler CV752-3025 SPARTAN MOWERS CV752

Model: CV752-3025 SPARTAN MOWERS

Back To Assemblies

Save Part Not Listed?
product name

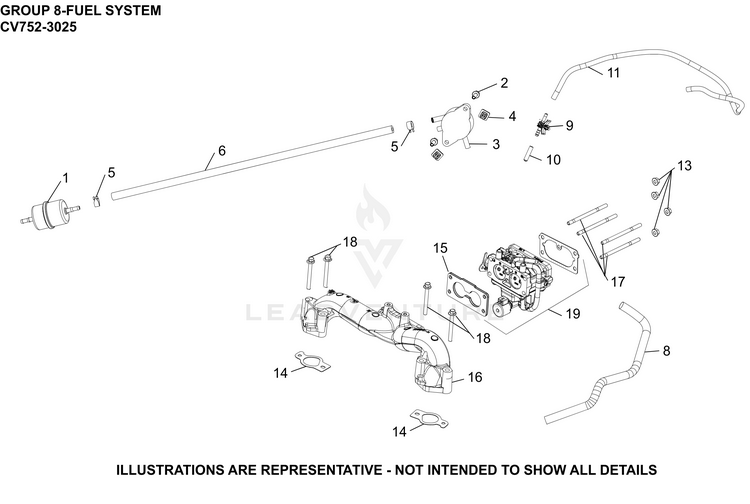

08 Fuel System

...
...
1
FILTER, FUEL KOH-24 050 13-S
...
2
SCREW, HEX FLANGE KOH-25 086 786-S
...
3
PUMP, FUEL KOH-24 393 16-S
...
4
NUT, PLASTIC - BLACK KOH-25 100 37-S
...
5
CLAMP, HOSE KOH-25 237 31-S
...
5
SPRING CLAMP, HOSE KOH-25 237 37-S
...
6
HOSE, FUEL LOW PERMEATION 39" KOH-25 111 81-S
...
8
SLEEVE, INSULATING 14" KOH-24 431 02-S
...
8
SLEEVE, ANTI-ABRASION KOH-25 431 22-S
...
9
CONNECTOR, EVAPORATIVE KOH-25 155 51-S
...
10
CAP, MASKING KOH-25 173 33-S
...
11
HOSE, EVAPORATIVE KOH-25 326 28-S
...
13
NUT, FLG M6X1.0 KOH-M-641060-S
...
14
KIT, INTAKE MANIFOLD GASKET-(#24755452S) KOH-24 041 79-S
...
15
GASKET, CARBURETOR KOH-24 041 84-S
...
16
KIT,MANIFOLD INTAKE-USE 24 164 384-S KOH-24 164 138-S
...
17
STUD,M6X1.0X96 KOH-M-629095-S
...
18
SCREW, HEX FLANGE KOH-25 086 766-S
...
19
KIT, CARBURETOR COMPLETE KOH-24 853 276-S
