Kohler CV752-3025 SPARTAN MOWERS CV752

Model: CV752-3025 SPARTAN MOWERS

Back To Assemblies

Save Part Not Listed?
product name

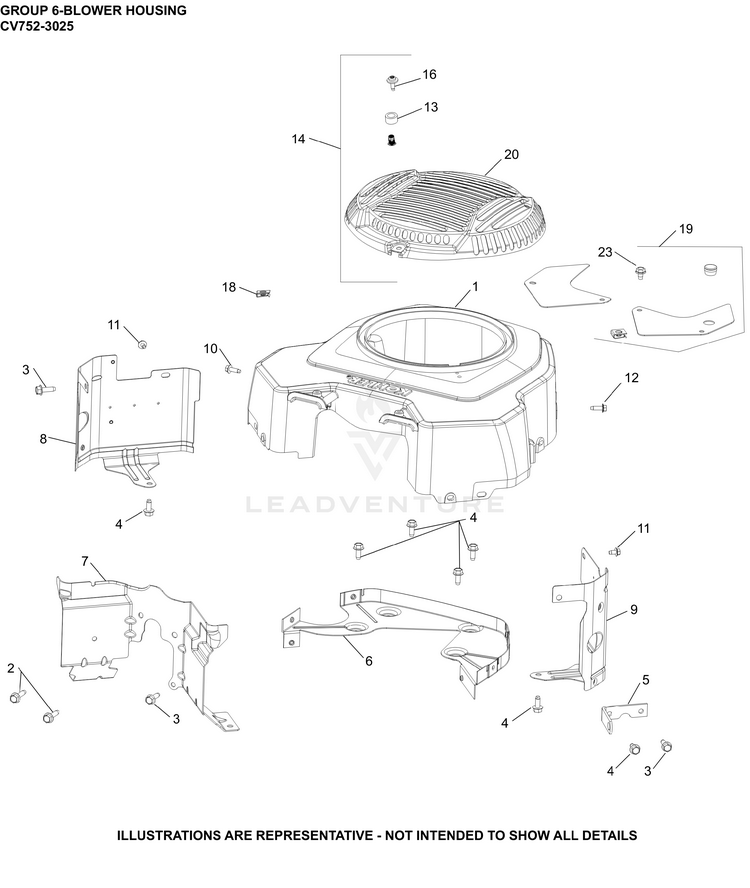

06 Blower Housing

...
...
1
KIT, BLOWER HOUSING KOH-24 027 428-S
...
2
SCREW, THREAD FORMING KOH-25 086 395-S
...
3
SCREW, THREAD FORMING KOH-25 086 396-S
...
4
SCREW, THREAD FORMING KOH-25 086 397-S
...
5
STRAP, LIFTING KOH-25 445 06-S
...
6
KIT, BACKING PLATE KOH-24 146 59-S
...
7
BAFFLE KOH-24 063 108-S
...
8
KIT, CYL BAFFEL #1 SIDE KOH-24 063 85-S
...
9
BAFFLE, LEFT BARREL KOH-24 063 88-S
...
10
SCREW, THREAD FORMING KOH-25 086 398-S
...
11
SCREW, THREAD FORMING KOH-25 086 400-S
...
12
SCREW, THREAD FORMING-(#25086398S) KOH-25 086 426-S
...
13
SPACER KOH-25 112 30-S
...
14
INSERT, THREADED (M5) KOH-25 332 19-S
...
16
SCREW, SEMS KOH-25 086 160-S
...
18
CLIP, BAFFLE MOUNTING KOH-25 154 37-S
...
19
KIT, ACCESS PANEL KOH-25 755 20-S
...
20
GUARD, GRASS SCREEN (METAL) KOH-25 314 04-S
...
23
SCREW, THREAD FORMING KOH-25 086 406-S
