Kohler CV745-3010 BUSH HOG 28 HP

Model: CV745-3010 BUSH HOG 28 HP

Back To Assemblies

Save Part Not Listed?
product name

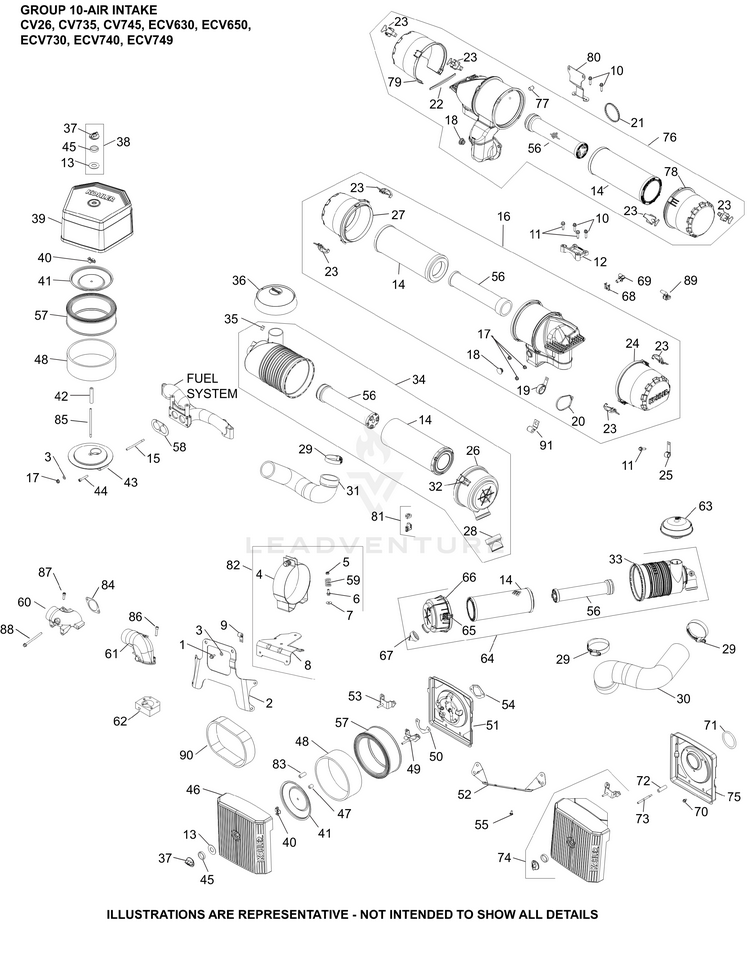

10 Air Intake

...
...
2
BRACKET, MAIN SUPPORT KOH-24 126 118-S
...
3
WASHER KOH-25 468 01-S
...
3
WASHER, FLAT 1/4" (O.D. 1") KOH-X-25-73-S
...
4
BRACKET, AIR CLEANER KOH-24 126 191-S
...
5
NUT, LOCK M6X1.0 KOH-M-647060-S
...
6
SCREW, FLG M6X1.0X16 KOH-M-639016-S
...
7
WASHER, FLAT 1/4" KOH-X-25-52-S
...
8
BRACKET, AIR CLEANER MOUNTING KOH-24 126 184-S
...
14
ELEMENT, AIR FILTER - PRIMARY KOH-25 083 01-S
...
17
NUT, FLG M6X1.0 KOH-M-641060-S
...
20
TIE KOH-25 454 04-S
...
29
CLAMP, HOSE KOH-25 237 21-S
...
31
HOSE, AIR CLEANER KOH-24 326 53-S
...
33
HOUSING, HD AIR CLEANER KOH-25 081 01-S
...
35
PLUG, PIPE KOH-25 139 20-S
...
36
HOOD, INLET KOH-25 324 04-S
...
56
ELEMENT, AIR FILTER - SAFETY KOH-25 083 04-S
...
58
GASKET, AIR CLEANER BASE KOH-24 041 36-S
...
59
SPRING, AIR CLEANER BRACKET KOH-24 089 73-S
...
62
KIT, ADAPTER-DISCONTINUED KOH-24 029 89-S
...
64
AIR CLEANER ASSY KOH-25 048 17-S
...
65
CLIP ASSEMBLY KOH-62 154 07-S
...
66
COVER ASSEMBLY, AIR CLEANER KOH-25 096 06-S
...
67
VALVE, DUST EJECTOR KOH-24 462 07-S
...
82
BRACKET, AIR CLEANER SUB ASSY KOH-24 126 186-S
...
85
STUD,M6X1.0X122 KOH-M-629122-S
...
86
SCREW, HEX SCKT CAP M6X1.0X25 KOH-M-644025-S
