Kohler CV730-0031 RANSOMES 23.5 HP (17.5 kW)

Model: CV730-0031 23.5 HP (17.5 kW)

Back To Assemblies

Save Part Not Listed?
product name

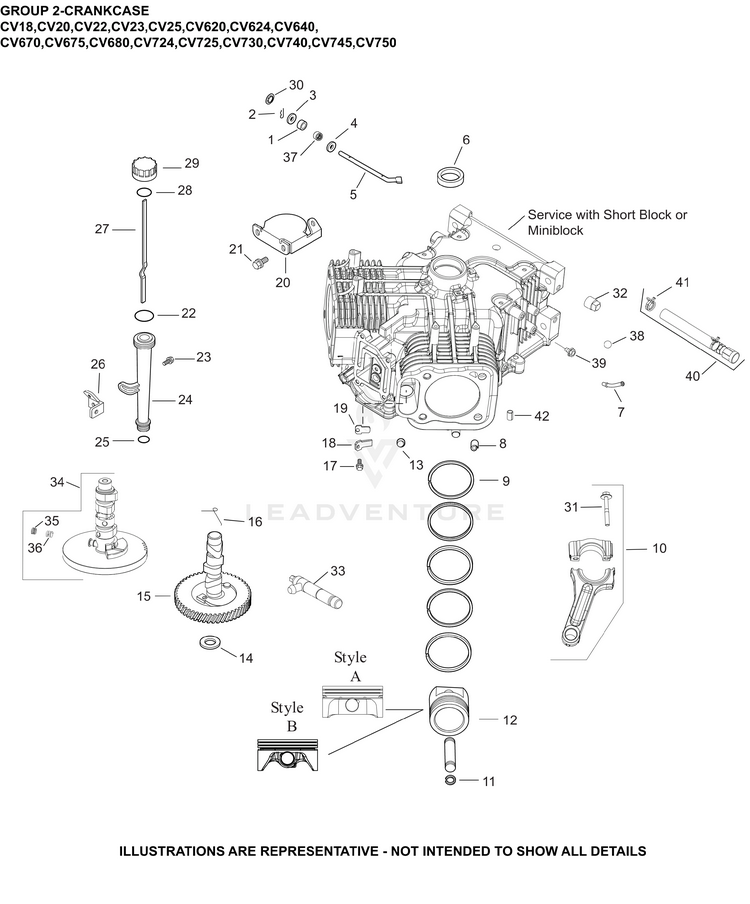

02 CrankCase

...
...
1
SEAL, GOVERNOR CROSS SHAFT KOH-28 032 09-S
...
3
WASHER, FLAT 9 MM KOH-M-931010-S
...
4
WASHER, FLAT 11/32" KOH-24 468 15-S
...
5
SHAFT, GOVERNOR CROSS KOH-24 144 39-S
...
6
SEAL, OIL (HELIX LIP) KOH-24 032 19-S
...
7
FITTING KOH-24 294 13-S
...
8
PIN, LOCATING KOH-24 380 16-S
...
9
RING SET(STD)STYLE B-1.2mm Tp RING THICK KOH-25 108 01-S
...
9
RING SET(.08)STYLE B-1.2mm RING THICK KOH-25 108 02-S
...
9
RING SET(.25)STYLE B-1.2mm Tp RING THICK KOH-25 108 03-S
...
9
RING SET(.50)STYLE B-1.2mm Tp RING THICK KOH-25 108 04-S
...
11
RETAINER, PISTON PIN KOH-24 018 01-S
...
12
KIT, PISTON 725CC (STD) STYLE B KOH-25 874 13-S
...
12
KIT, PISTON 725CC (.08) STYLE B KOH-25 874 15-S
...
12
KIT, PISTON 725CC (.25) STYLE B KOH-25 874 16-S
...
12
KIT, PISTON 725CC (.50) STYLE B KOH-25 874 17-S
...
13
PLUG, CUP KOH-52 139 09-S
...
15
KIT, CAMSHAFT KOH-24 012 33-S
...
17
SCREW, FLG THD FRM M5X.8X10 KOH-M-545010-S
...
18
RETAINER, BREATHER REED KOH-24 018 04-S
...
19
REED, BREATHER KOH-24 402 07-S
...
22
O-RING, UPPER OIL FILL TUBE KOH-12 153 02-S
...
24
TUBE ASSEMBLY KOH-25 123 07-S
...
25
O-RING, LOWER OIL FILL TUBE KOH-12 153 01-S
...
26
BRACKET, OIL FILL TUBE KOH-24 126 257-S
...
27
DIPSTICK, ASSY KOH-24 038 04-S
...
28
O-RING, DIPSTICK KOH-25 153 02-S
...
29
KIT, OIL FILL CAP (BLACK) KOH-25 755 13-S
...
30
RETAINER, RING KOH-24 018 09-S
...
31
KIT, ROD BOLTS KOH-25 086 677-S
...
39
SCREW, THREAD FORMING KOH-25 086 736-S
...
NI
ROD, ASSEMBLY CONNECTING KOH-25 067 04-S
...
NI
SCREW, FLG THD FRM M5X0.8X13 KOH-M-545013-S
