Kohler CV680-3048 MARKETING Engine

Model: CV680-3048 MARKETING

Back To Assemblies

Save Part Not Listed?
product name

10 Air Intake

...
...
1
KNOB, COVER KOH-25 341 04-S
...
2
KIT, KNOB W/SEAL KOH-54 755 01-S
...
3
COVER, AIR CLEANER KOH-24 096 67-S
...
4
NUT, WING KOH-12 100 01-S
...
7
COVER, INNER AIR CLEANER KOH-24 096 01-S
...
8
SEAL, INNER AIR CLEANER KOH-24 032 03-S
...
11
ELEMENT, AIR CLEANER KOH-47 083 03-S
...
13
CUP, SPIT-BACK W/STUD KOH-24 109 30-S
...
15
GASKET, FUEL SPITBACK CUP KOH-24 041 13-S
...
16
KIT, AIR CLEANER BASE KOH-24 094 87-S
...
18
GASKET, AIR CLEANER BASE KOH-24 041 14-S
...
19

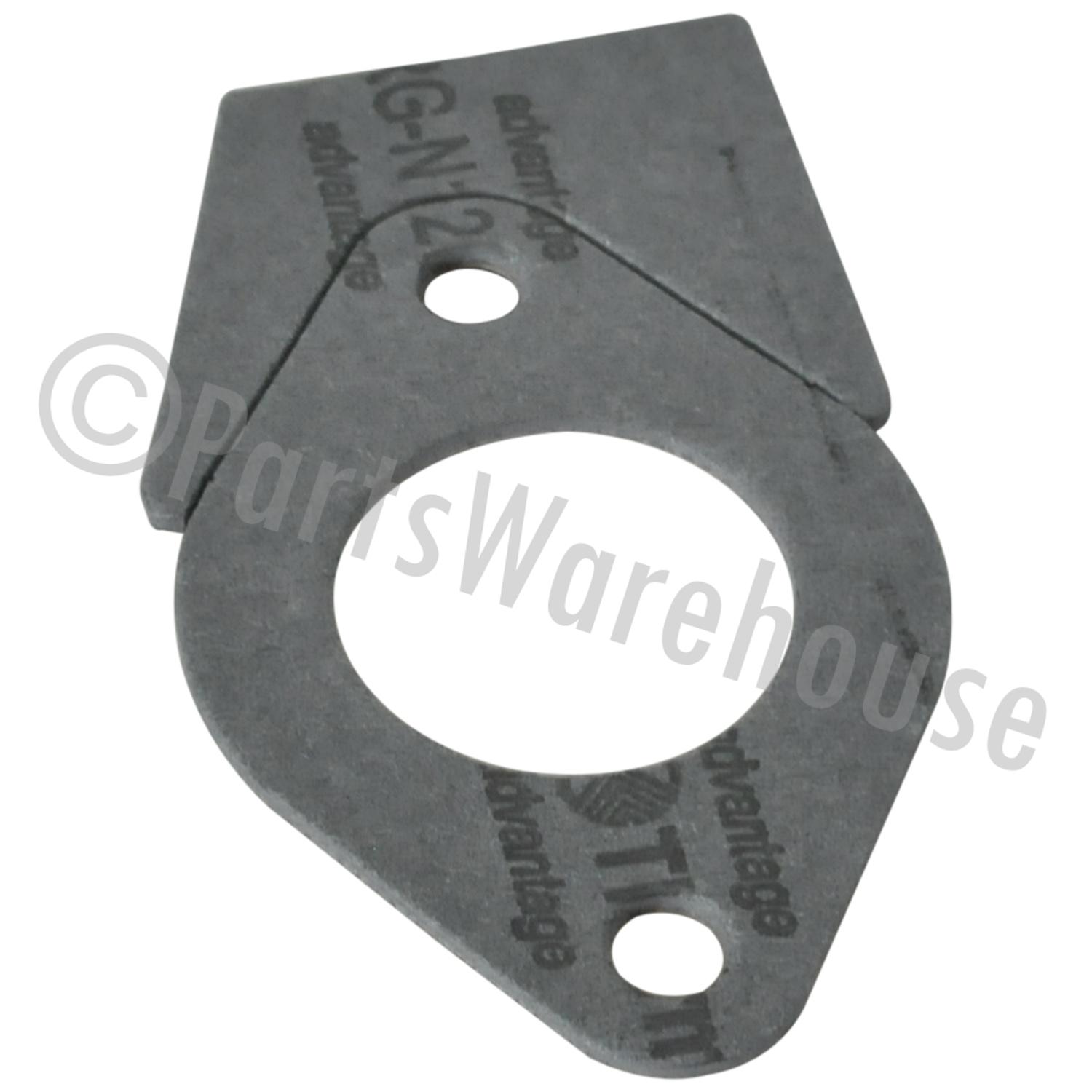

GASKET, CARBURETOR (PIM, CV) KOH-24 041 91-S
...
62
NUT, FLG M6X1.0 KOH-M-641060-S
...
68
HOSE, EVAP KOH-24 326 131-S
...
69
CONNECTOR, EVAPORATIVE HOSE KOH-24 294 27-S
...
70
SCREW, THREAD FORMING KOH-25 086 400-S
...
71
O-RING, INTAKE PORT KOH-24 153 27-S
...
72
KIT, INTAKE MANIFOLD KOH-24 164 278-S
...
73
SCREW, FLG M6X1.0X40 KOH-M-651040-S
...
74
AIR CLEANER BRACKET KOH-24 126 130-S
...
105
O-RING KOH-24 153 20-S
...
106
KIT, AIR CLEANER COVER KOH-24 743 05-S
