Kohler CV23-75585 METALCRAFT Engine

Model: CV23-75585 METALCRAFT

Back To Assemblies

Save Part Not Listed?
product name

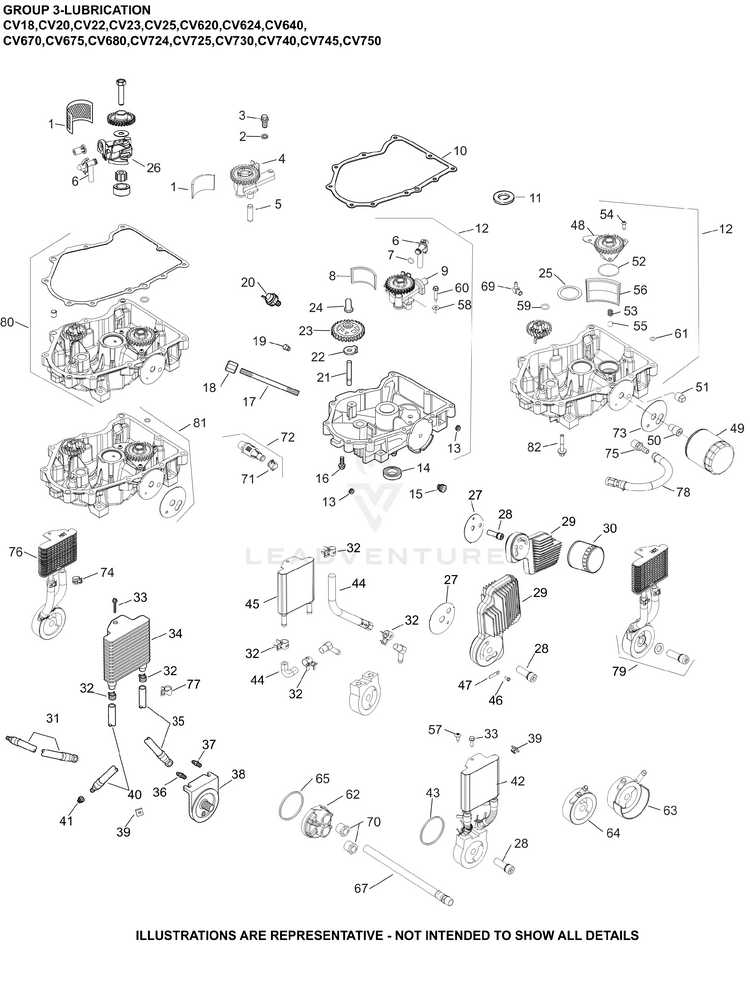

03 Lubrication

...
...
6
KIT, OIL PICK-UP TUBE-(#DSC) KOH-24 381 11-S
...
7
O-RING, OIL PICK-UP KOH-24 153 01-S
...
8
SCREEN, OIL KOH-24 162 26-S
...
9
KIT, OIL PUMP ASSEMBLY-(#DSC) PUMP DISCONTINUED ORDER OIL PAN KOH-24 393 53-S
...
10
GASKET, OIL PAN KOH-24 041 66-S
...
12
KIT, OIL PAN ASSEMBLY-USE 24 199 41-S KOH-24 199 35-S
...
13
PLUG, PIPE CTSK 3/8" KOH-25 139 62-S
...
14
OIL SEAL KOH-25 032 06-S
...
16
SCREW, FLG M8X1.25X45 KOH-24 086 17-S
...
21
SHAFT, GOVERNOR GEAR KOH-12 144 02-S
...
22
TAB, LOCKING KOH-24 448 02-S
...
23
KIT, GOVERNOR GEAR W/PIN KOH-24 043 12-S
...
24
PIN, GOVERNOR REGULATING KOH-12 380 01-S
...
31
HOSE KOH-12 326 05-S
...
33
SCREW, HEX FLANGE KOH-25 086 786-S
...
35
HOSE, OIL KOH-24 326 11-S
...
36
CONNECTOR KOH-52 155 03-S
...
37
NIPPLE KOH-52 136 02-S
...
38
ADAPTER KOH-25 029 01-S
...
39
NUT, PLASTIC - BLACK KOH-25 100 37-S
...
49
OIL FILTER KOH-52 050 02-S
...
50
NIPPLE, OIL FILTER KOH-24 136 09-S
...
51
PLUG, SQ HD PIPE 3/8" KOH-25 139 57-S
...
58
WASHER, FLAT 1/4" (O.D. 5/8") KOH-X-25-53-S
...
59
O-RING KOH-24 153 08-S
...
60
SCREW, HEX FLANGE KOH-25 086 317-S
...
60
SCREW, THREAD FORMING KOH-25 086 401-S
...
62
KIT,OIL FILTER ADAPTER KOH-24 029 02-S
...
65
O-RING KOH-24 153 25-S
...
67
HOSE, OIL KOH-24 326 12-S
...
70
BUSHNG,REDCR 1/2"-1/8" NPT STL KOH-25 158 19-S
...
77
CLAMP, HOSE KOH-25 237 49-S
