Kohler CV224-3024 Lombardini Engine

Model: CV224-3024 Lombardini

Save Part Not Listed?

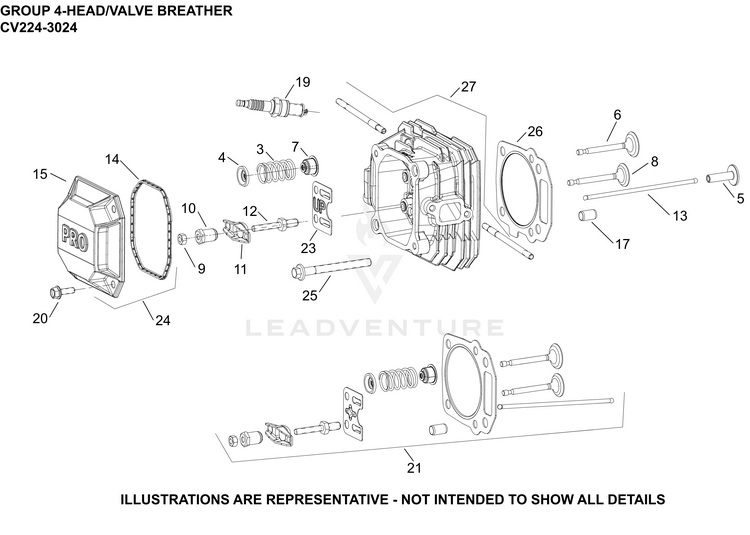

04 CylinderHead/Breather

SPRING, VALVE KOH-14 089 02-S

RETAINER, VALVE SPRING KOH-14 018 02-S

LIFTER, VALVE KOH-14 351 01-S

VALVE, INTAKE KOH-14 017 01-S

SEAL, VALVE KOH-14 032 17-S

VALVE, EXHAUST KOH-14 016 01-S

NUT, HEX JAM KOH-14 100 01-S

PIVOT, ROCKER ARM KOH-14 599 01-S

ARM, ROCKER (1.2: 1 RATIO) KOH-14 186 10-S

STUD, ROCKER ARM KOH-14 072 29-S

ROD, PUSH KOH-17 411 08-S

SEAL, VALVE COVER KOH-14 032 15-S

COVER, VALVE ASSEMBLY KOH-14 096 184-S

DOWEL, CYLINDER HEAD KOH-14 380 13-S

PLUG, SPARK 12MM RFI KOH-14 132 14-S

SCREW, HEX FLANGE (M6) KOH-25 086 459-S

KIT, VALVE TRAIN CV224 KOH-14 755 38-S

PLATE, PUSHROD GUIDE KOH-14 146 28-S

COVER, VALVE ASSEMBLY KOH-14 096 184-S

SCREW, HEX FLANGE (M8) KOH-25 086 755-S

KIT, HEAD GASKET KOH-14 841 05-S

KIT, CYLINDER HEAD COMPLETE KOH-14 818 01-S
