Kohler CV22-75527 RICH MFG. 23 HP (17.2 kW)

Model: CV22-75527 23 HP (17.2 kW)

Back To Assemblies

Save Part Not Listed?
product name

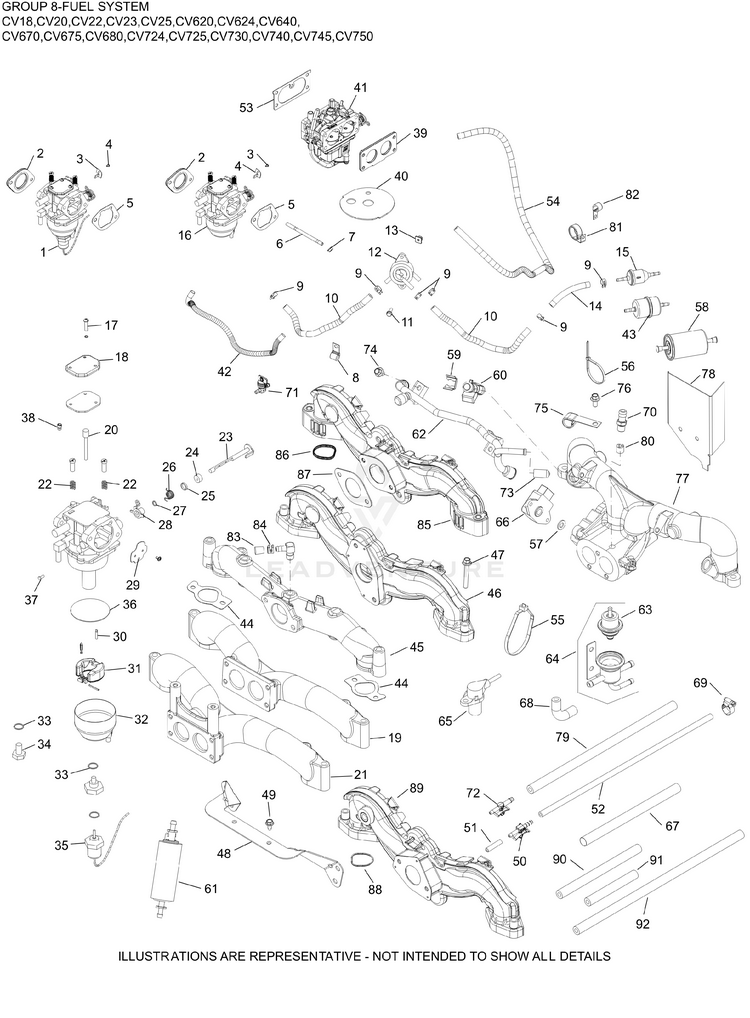

08 Fuel System

...
...
1
KIT,CARB (KEIHIN) W/GASKETS KOH-24 853 106-S
...
2
GASKET, CARBURETOR KOH-24 041 15-S
...
6
STUD,M6X1.0X128 KOH-M-629128-S
...
9
CLAMP, HOSE KOH-25 237 31-S
...
9
SPRING CLAMP, HOSE KOH-25 237 37-S
...
10
HOSE, FUEL LOW PERMEATION 39" KOH-25 111 81-S
...
11
SCREW, HEX FLANGE KOH-25 086 786-S
...
12
PUMP, FUEL KOH-24 393 16-S
...
13
NUT, PLASTIC - BLACK KOH-25 100 37-S
...
43
FILTER, FUEL KOH-24 050 13-S
...
44
KIT, INTAKE MANIFOLD GASKET-(#24755452S) KOH-24 041 79-S
...
45
MANIFOLD, INTAKE KOH-24 164 06-S
...
47
SCREW, HEX FLANGE KOH-25 086 766-S
...
56
TIE KOH-25 454 05-S
...
82
CLIP, CABLE (KM) KOH-48 154 01-S
...
NI
O-RING, CARBURETOR BOWL-DISCONTINUED KOH-24 153 35-S
...
NI
KIT,HIGH ALTITUDE (4,000-8,000 FT)-DISC. KOH-24 755 143-S
...
NI
KIT,REPAIR SERVICE CHOKE(KEIHIN) KOH-24 757 36-S
...
NI
KIT,REPAIR SERVICE GASKET(KEIHIN) KOH-24 757 38-S
...
NI
KIT,REPAIR FLOAT(KEIHIN)-(#DSC) KOH-24 757 44-S
...
NI
KIT,REPAIR SOLENOID VALVE(KEIHIN)-DISC. KOH-24 757 45-S
...
NI
KIT,REPAIR OVERHAUL(KEIHIN) KOH-24 757 46-S
...
NI
KIT, ACCELERATOR PUMP KOH-24 757 56-S
