Kohler CV15-41635 EPG Engine

Model: CV15-41635 EPG

Back To Assemblies

Save Part Not Listed?
product name

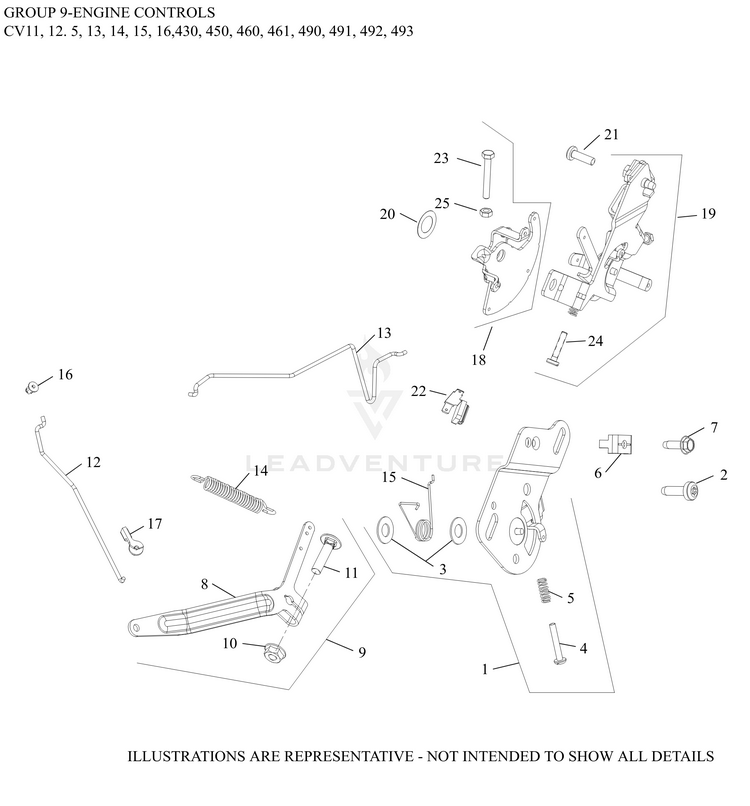

09 Engine Controls

...
...
1
CONTROL, SPEED-DISCONTINUED KOH-12 536 06-S
...
2
SCREW, THREAD FORMING KOH-25 086 403-S
...
3
WASHER, FLAT 9 MM KOH-M-931010-S
...
4
SCREW, PAN HEAD KOH-12 086 39-S
...
5
SPRING, SPEED CONTROL (SHORT) KOH-12 089 11-S
...
6
CLAMP, CABLE CABLE KOH-25 237 53-S
...
7
SCREW, THREAD FORMING KOH-25 086 398-S
...
8
LEVER, GOVERNOR KOH-12 090 28-S
...
9
KIT, GOVERNOR LEVER KOH-12 755 83-S
...
10
NUT, FLANGE 1/4-20 KOH-12 100 07-S
...
11
BOLT, RD HD SQ NCK 1/4-20X1" KOH-52 211 04-S
...
12
LINKAGE, THROTTLE KOH-12 079 01-S
...
13
LINKAGE, CHOKE KOH-12 079 07-S
...
14
SPRING, GOVERNOR-DISCONTINUED KOH-12 089 19-S
...
15
SPRING KOH-12 089 23-S
...
16
BUSHING, LINKAGE RETAINING KOH-25 158 08-S
...
17
BUSHING, THROTTLE LINKAGE KOH-25 158 11-S
...
22
TERMINAL KOH-25 452 13-S
...
22
TERMINAL-DISCONTINUED KOH-25 452 14-S
...
24
SCREW,SLOTTED PAN M4X0.7X20-DISCONTINUED KOH-M-443020-S
