Kohler CV14-14108 FHP 14 HP

Model: CV14-14108 FHP 14 HP

Back To Assemblies

Save Part Not Listed?
product name

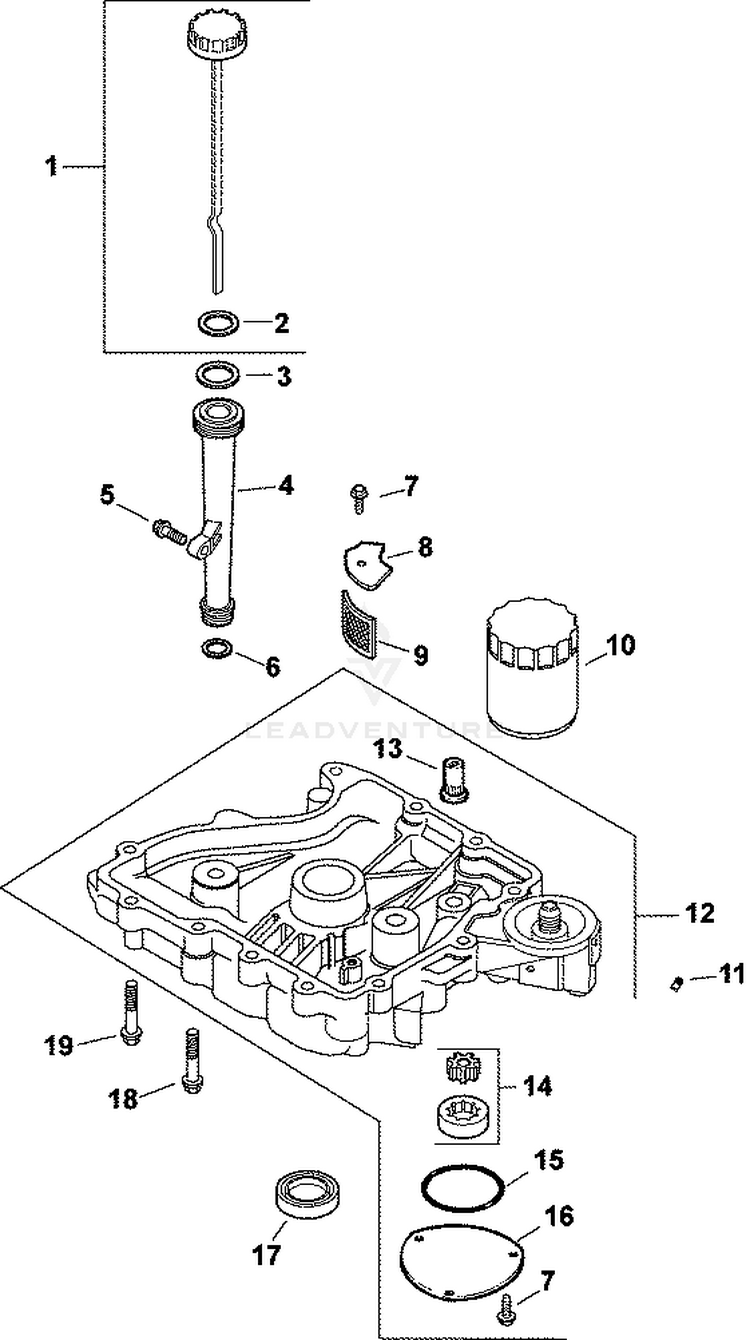

Oil Pan/Lubrication 3-27-92

...
...
1
DIPSTICK/CAP ASSY (BLACK) (inlcudes 2) KOH-12 038 01-S
...
2
O-RING, DIPSTICK KOH-25 153 02-S
...
3
O-RING, UPPER OIL FILL TUBE KOH-12 153 02-S
...
4
TUBE ASSEMBLY (includes 3,6) KOH-25 123 07-S
...
5
SCREW, THREAD FORMING KOH-25 086 395-S
...
6
O-RING, LOWER OIL FILL TUBE KOH-12 153 01-S
...
7
SCREW, THREAD FORMING KOH-25 086 398-S
...
8
COVER - DISCONTINUED KOH-12 096 03-S
...
9
SCREEN, OIL KOH-24 162 26-S
...
10
OIL FILTER KOH-12 050 01-S
...
11
PLUG, SQ HD PIPE 3/8" KOH-25 139 57-S
...
12
PAN, OIL ASSEMBLY - DISCONTNUED (includes 8 [qty 3], 13-16) KOH-12 199 70-S
...
13
VALVE, OIL PRESSURE RELIEF KOH-25 462 09-S
...
14
PUMP ASSEMBLY, OIL - DISCONTINUED KOH-12 393 01-S
...
15
O-RING (2.5" DIA) KOH-12 153 06-S
...
16
COVER, OIL PUMP KOH-12 096 34-S
...
17
SEAL, OIL KOH-12 032 03-S
...
18
SCREW, FLG M8X1.25X45 KOH-24 086 17-S
...
19
SCREW, FLG M8X1.25X45 KOH-24 086 17-S
