Kohler CV14-1402 BASIC 14 HP

Model: CV14-1402 14 HP

Back To Assemblies

Save Part Not Listed?

Popular Parts

Gasket Air Cleaner Base KOH-12 041 02-S

Gasket Carburetor KOH-12 041 01-S

Gasket Fuel Bowl KOH-12 041 05-S

Gasket Bowl Screw KOH-25 041 03-S

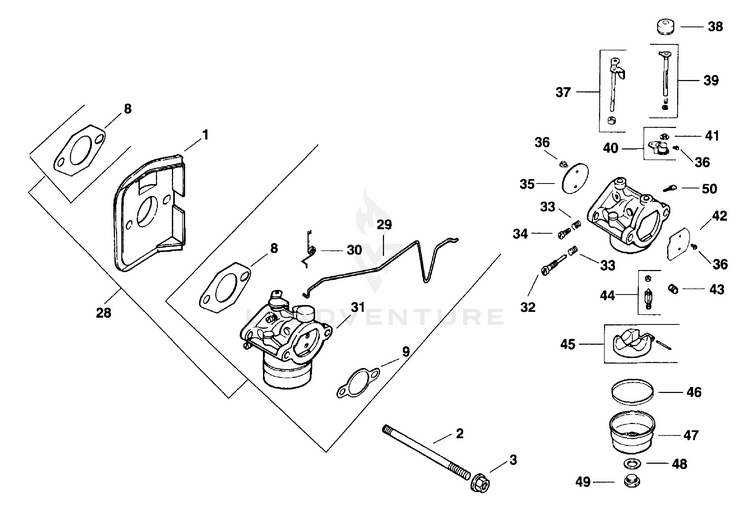

Fuel System (Cont.) 8-27-70 (TP-2351)

DEFLECTOR, HEAT KOH-12 265 08-S

Stud, carburetor M6x1.0x122.8 KOH-M-0629122

Nut, hex. flange M6x1.0 KOH-SM-0641060

GASKET, CARBURETOR KOH-12 041 01-S

GASKET, AIR CLEANER BASE KOH-12 041 02-S

KIT, CARBURETOR w/GASKETS Includes 8,9,29-31, Carburetor assembly 12-053-26. Use after Serial No. 2204100014 KOH-12 853 139-S

LINKAGE, CHOKE KOH-12 079 07-S

SPRING KOH-12 089 23-S

Carburetor assembly Includes 32-49, carburetor repair kit 12-757-01, high altitude kit 12-755-36, choke repair kit 12-757-11. Use after Serial No. 2204100014 KOH-12 053 26

NEEDLE, IDLE - DISCONTINUED KOH-12 368 03-S

SPRING KOH-12 089 09-S

SCREW KOH-12 086 04-S

PLATE KOH-12 146 03-S

SCREW, VALVE KOH-25 086 27-S

SHAFT, THROTTLE KOH-12 144 09-S

CAP, CHOKE LEVER KOH-12 173 06-S

SHAFT, CHOKE KOH-12 144 18-S

KIT, CHOKE LEVER REPAIR Includes 36,41 KOH-12 757 34-S

BUSHING, CHOKE KOH-12 158 01-S

PLATE, CHOKE KOH-12 146 10-S

JET, MAIN - DISCONTINUED KOH-12 337 07-S

KIT, REPAIR FLOAT (WALBRO) KOH-12 757 02-S

GASKET, FUEL BOWL KOH-12 041 05-S

BOWL KOH-12 104 01-S

GASKET, BOWL SCREW KOH-25 041 03-S

SCREW, FUEL BOWL RETAINER KOH-12 086 05-S

1275701-S

KIT, CARBURETOR REPAIR (GRAVITY FEED) Not Illustrated. Includes carburetor gasket, air filter base gasket, fuel bowl gasket, bowl screw gasket, welch plug, inlet needle valve, valve inlet seat, solenoid seal KOH-12 757 01-S

1275703-S

KIT, REPAIR CARB (PUMP FEED) (WALBRO) Not Illustrated. Includes carburetor gasket, air filter base gasket, fuel bowl gasket, bowl screw gasket, welch plug, inlet needle valve, valve inlet seat, solenoid seal KOH-12 757 03-S

1275509

KIT, HIGH ALTITUDE - DISCONTINUED Not Illustrated. Includes carburetor gasket, air filter base gasket, fuel bowl gasket, bowl screw gasket, main jet KOH-12 755 68-S

1275536-S

KIT, HIGH ALTITUDE - DISCONTINUED Not Illustrated. Includes carburetor gasket, air filter base gasket, fuel bowl gasket, bowl screw gasket, main jet KOH-12 755 68-S

1275708-S

KIT, CHOKE REPAIR Not Illustrated. Includes choke lever, choke shaft assembly, choke plate, choke bushing, choke lever cap, valve screw KOH-12 757 08-S

1275711-S

KIT, CHOKE REPAIR Not Illustrated. Includes choke lever, choke shaft assembly, choke plate, choke bushing, choke lever cap, valve screw KOH-12 757 11-S

1275713-S

KIT, CHOKE REPAIR Not Illustrated. Includes choke lever, choke shaft assembly, choke plate, choke bushing, choke lever cap, valve screw KOH-12 757 13-S
