Kohler CV13-21539 RANSOMES 13 HP (9.7 kW)

Model: CV13-21539 13 HP (9.7 kW)

Back To Assemblies

Save Part Not Listed?
product name

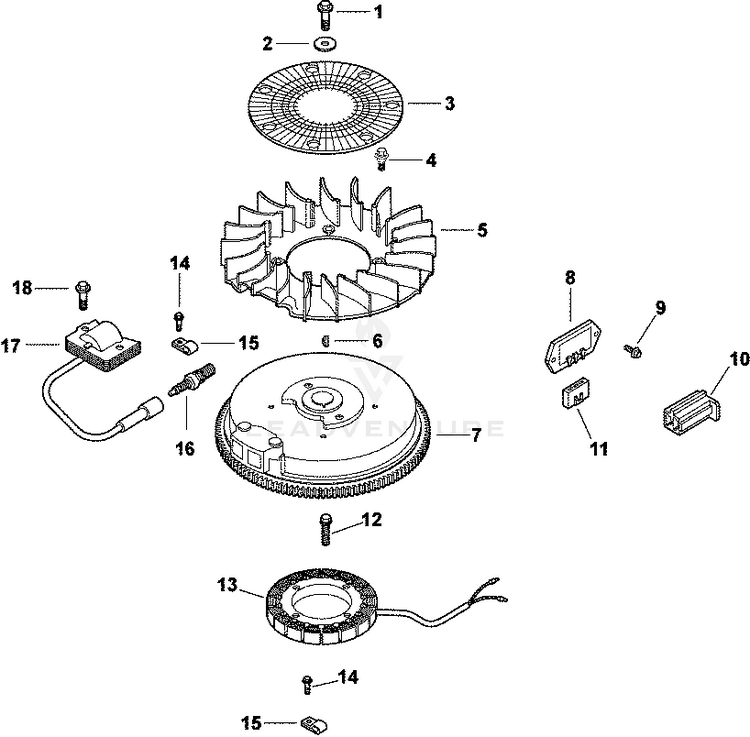

Ignition/Electrical 5-27-292

...
...
1
SCREW, HEX FLANGE KOH-25 086 361-S
...
2
WASHER, FLAT 13/32"-(#2546809S) KOH-12 468 03-S
...
3
SCREEN KOH-12 162 03-S
...
4
BOLT, SHOULDER KOH-25 086 47-S
...
5
FAN - DISCONTINUED KOH-12 157 03-S
...
6
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
7
FLYWHEEL-DISCONTINUED KOH-12 025 65-S
...
8
KIT, WIRING SERVICE KOH-12 755 111-S
...
9
SCREW, FLG M6X1.0X16 KOH-M-639016-S
...
10
CONNECTOR KOH-41 155 03-S
...
11
CONNECTOR KOH-25 155 41-S
...
12
SCREW, THREAD FORMING KOH-25 086 402-S
...
13
KIT, 15 / 20 AMP STATOR (includes 25 452 01-S) KOH-237878-S
...
14
SCREW, FLG THD FRM M5X.8X10 KOH-M-545010-S
...
15
CLIP KOH-X-728-1-S
...
16
PLUG, SPARK (PRO SERIES) KOH-25 132 12-S
...
17
MODULE, IGNITION-(#DSC) KOH-12 584 05-S
...
18
SCREW, THREAD FORMING KOH-25 086 473-S
...
1212696-S
BRACKET, GROUND STRAP NOT ILLUSTRATED KOH-12 126 96-S
...
1251801-S
LEAD NOT ILLUSTRATED KOH-12 518 01-S
...
2551805-S
LEAD NOT ILLUSTRATED KOH-25 518 05-S
...
2545201-S
TERMINAL NOT ILLUSTRATED KOH-25 452 01-S
