Kohler CV13-21539 RANSOMES 13 HP (9.7 kW)

Model: CV13-21539 13 HP (9.7 kW)

Back To Assemblies

Save Part Not Listed?
product name

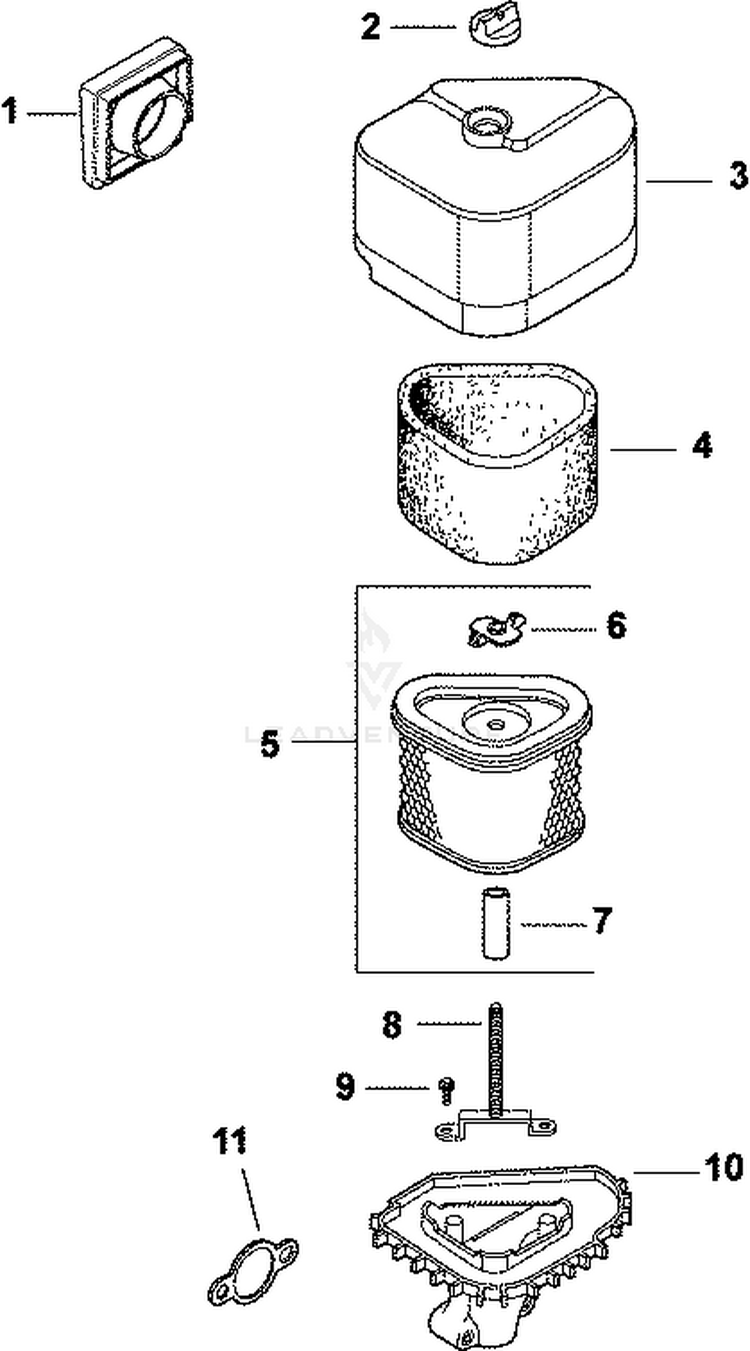

Air Intake/Filtration 10-27-13

...
...
1
DUCT, AIR-(#DSC) KOH-12 281 02-S
...
2
KNOB, COVER KOH-25 341 04-S
...
3
COVER, AIR CLEANER-(#DSC) KOH-12 096 44-S
...
4
PRE-CLEANER KOH-12 083 12-S
...
5
FILTER, ELEMENT - Also available Retail Packaged 12 883 10-S1 Air Filter Kit (includes 6,7) KOH-12 083 10-S
...
6
NUT, WING KOH-12 100 01-S
...
7
SEAL KOH-12 032 11-S
...
8
STUD, MOUNTING PLATE KOH-12 072 04-S
...
9
SCREW, THD FRM #10 HI-LO KOH-12 086 01-S
...
10
BASE, AIR CLEANER-(#DSC) KOH-12 094 17-S
...
11
GASKET, AIR CLEANER BASE KOH-12 041 02-S
...
1274304-S
KIT, AIR CLEANER-(#DSC) (includes 1-7,10,11) KOH-12 743 04-S
