Kohler CV13-21539 RANSOMES 13 HP (9.7 kW)

Model: CV13-21539 13 HP (9.7 kW)

Save Part Not Listed?

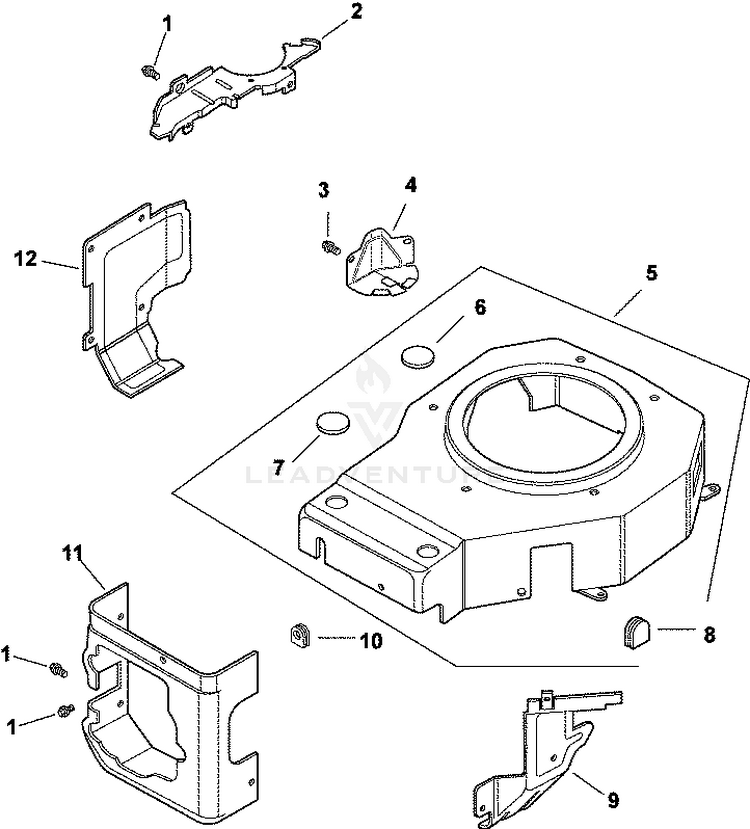

Blower Housing & Baffles 6-27-82

SCREW, FLG THD FRM M5X.8X10 KOH-M-545010-S

PLATE, BACKING-(#DSC) KOH-12 146 07-S

SCREW, HVY FLG M5X.8X10 KOH-M-550010-S

COVER, STARTER MOTOR KOH-12 096 29-S

KIT, BLOWER HOUSING (includes 6-8 & 41 037 10-S) KOH-12 027 68-S

PLUG, BUTTON 1/2 KOH-25 139 17-S

PLUG, BUTTON 9/16 KOH-25 139 16-S

GROMMET KOH-12 313 05-S

BAFFLE, INTAKE SIDE KOH-12 063 10-S

GROMMET KOH-12 313 03-S

BAFFLE, CYLINDER HEAD KOH-12 063 08-S

BAFFLE, CYLINDER - DISCONTINUED KOH-12 063 19-S

M-561016-S

SCREW, THREAD FORMING NOT ILLUSTRATED KOH-25 086 398-S

4103710-S

NAMEPLATE, SERVICE NOT ILLUSTRATED KOH-41 037 10-S
