Kohler CV13-21539 RANSOMES 13 HP (9.7 kW)

Model: CV13-21539 13 HP (9.7 kW)

Back To Assemblies

Save Part Not Listed?
product name

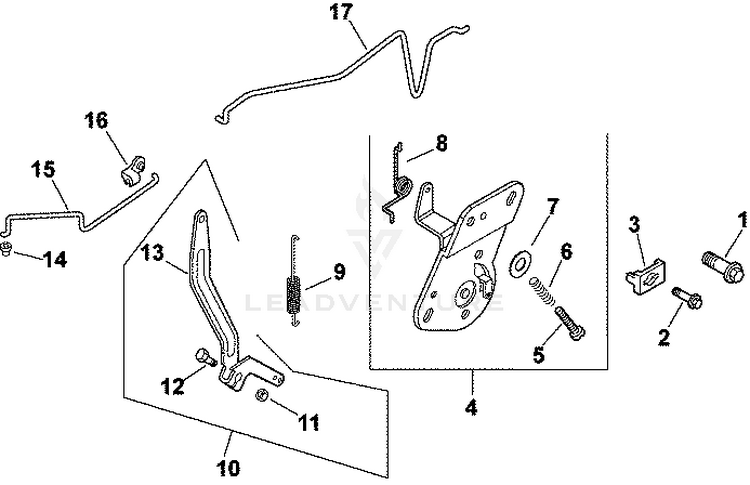

Engine Controls 9-27-60

...
...
1
SCREW, THREAD FORMING KOH-25 086 403-S
...
2
SCREW, THREAD FORMING KOH-25 086 398-S
...
3
CLAMP, CABLE CABLE KOH-25 237 53-S
...
4
DISCONTINUED - CONTROL, SPEED (Includes 5-8) KOH-12 536 01-S
...
5
SCREW, PAN HEAD KOH-12 086 39-S
...
6
SPRING, SPEED CONTROL (SHORT) KOH-12 089 11-S
...
7
WASHER, FLAT 9 MM KOH-M-931010-S
...
8
SPRING KOH-12 089 23-S
...
9
SPRING, GOVERNOR - (#DSC) KOH-12 089 32-S
...
10
KIT, GOVERNOR LEVER (Includes 11-13) KOH-12 755 83-S
...
11
NUT, FLANGE 1/4-20 KOH-12 100 07-S
...
12
BOLT, RD HD SQ NCK 1/4-20X1" KOH-52 211 04-S
...
13
LEVER, GOVERNOR KOH-12 090 28-S
...
14
BUSHING, LINKAGE RETAINING KOH-25 158 08-S
...
15
LINKAGE, THROTTLE KOH-12 079 01-S
...
16
BUSHING, THROTTLE LINKAGE KOH-25 158 11-S
...
17
LINKAGE, CHOKE KOH-12 079 07-S
Schematic Image Zoomed
