Kohler CV12.5-1290 SIMPLICITY 12.5 HP

Model: CV12.5-1290 12.5 HP

Back To Assemblies

Save Part Not Listed?
product name

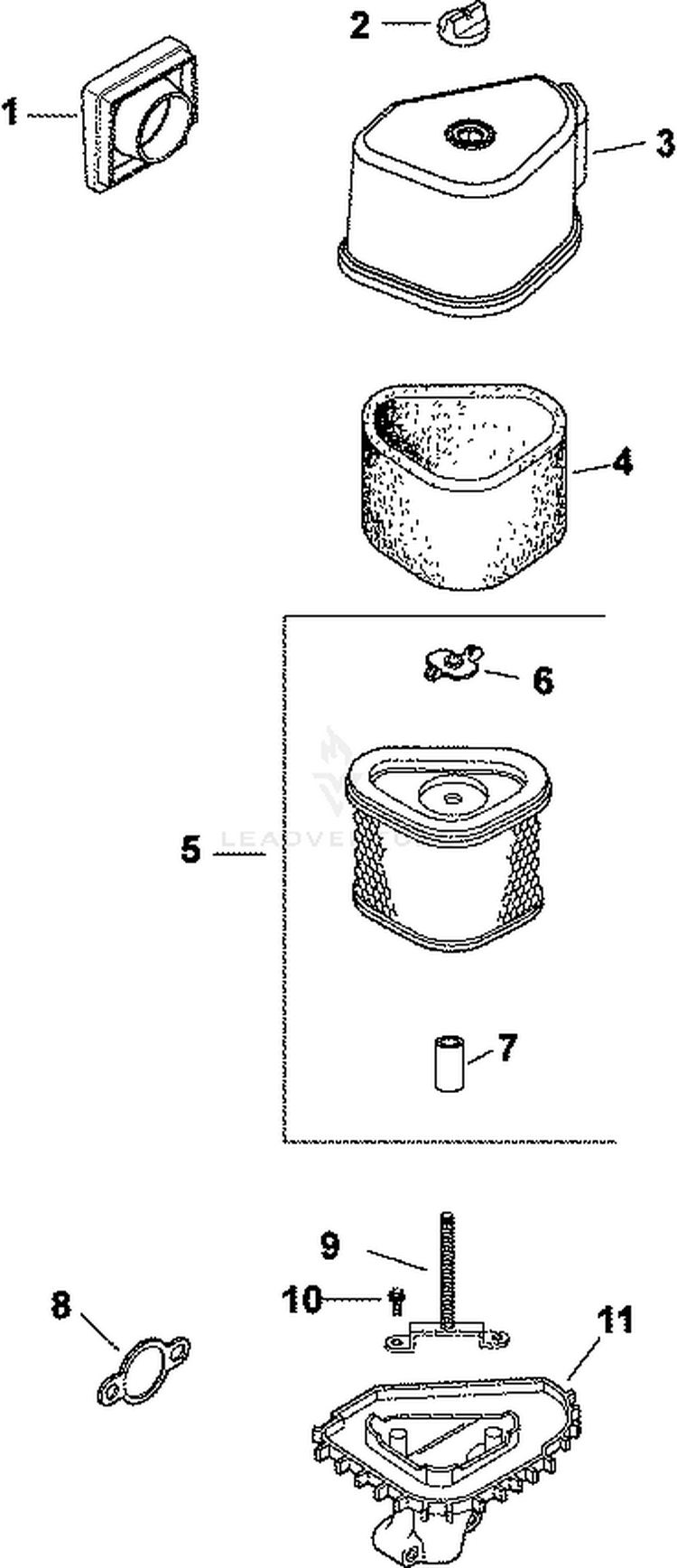

Air Intake/Filtration 10-27-15

...
...
1
DUCT, AIR-(#DSC) KOH-12 281 02-S
...
2
KNOB, COVER KOH-25 341 04-S
...
3
COVER, AIR CLEANER-DISCONTINUED (Serial Numbers 2028400001 till 3203000011 and after 3900700001 to current) KOH-12 096 24-S
...
3
COVER, AIR CLEANER-(#DSC) (serial Numbers 3203000001 to 3900700011) KOH-12 096 44-S
...
4
PRE-CLEANER KOH-12 083 08-S
...
5
LEMENT W/SEAL KIT (includes 6,7) KOH-12 083 05-S
...
6
NUT, WING KOH-12 100 01-S
...
7
SEAL KOH-12 032 10-S
...
8
GASKET, AIR CLEANER BASE KOH-12 041 02-S
...
9
STUD, MOUNTING PLATE KOH-12 072 05-S
...
10
SCREW, THD FRM #10 HI-LO KOH-12 086 01-S
...
11
BASE, AIR CLEANER-(#DSC) KOH-12 094 17-S
