Kohler CH752-3128 Woods Equipment Engine

Model: CH752-3128 Equipment

Back To Assemblies

Save Part Not Listed?
product name

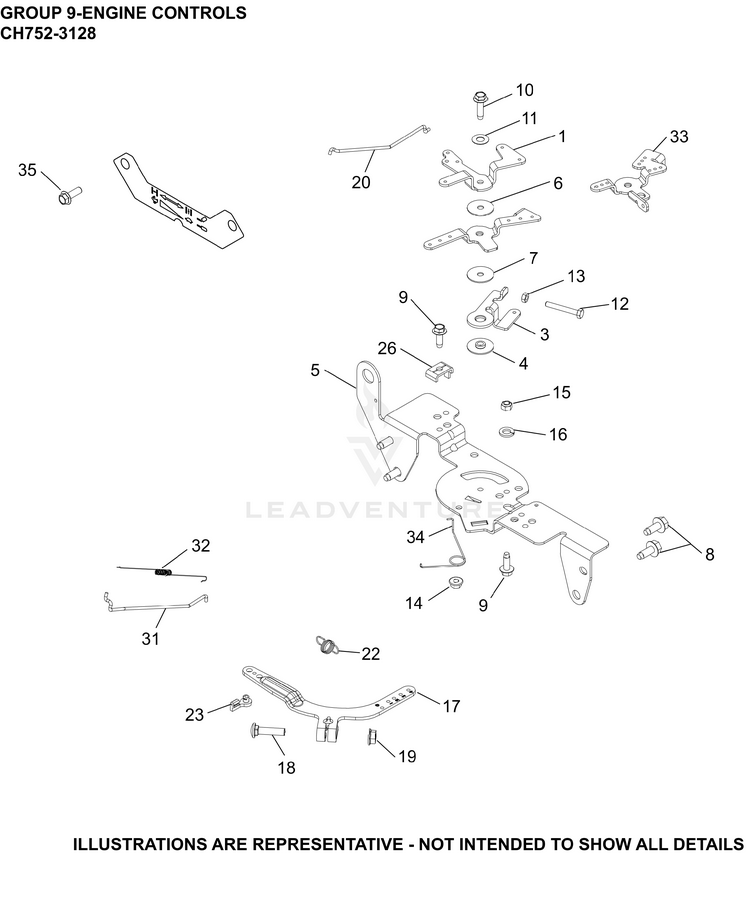

09 Engine Controls

...
...
1
LEVER, CHOKE KOH-24 090 05-S
...
3
LEVER, THROTTLE ACTUATOR KOH-24 090 47-S
...
4
SPACER, CONTROL ASSEMBLY KOH-24 112 27-S
...
5
BRACKET, CONTROL KOH-24 126 263-S
...
6
WASHER, FLAT 5.5 MM KOH-24 468 01-S
...
7
WASHER, FLAT 5 MM KOH-24 468 20-S
...
8
SCREW, THREAD FORMING KOH-25 086 397-S
...
9
SCREW, THREAD FORMING KOH-25 086 398-S
...
10
SCREW, THREAD FORMING KOH-25 086 473-S
...
11
WASHER, SPRING 1/4" KOH-41 468 03-S
...
12
SCREW, CAP M4X.7X30 KOH-M-401030-S
...
13
NUT, M4X0.7 KOH-M-446030-S
...
14
NUT, FLG M5X.8 KOH-M-541050-S
...
15
NUT, LOCK M5X.8 KOH-M-547050-S
...
16
WASHER, SPRING LOCK 1/4" KOH-X-20-1-S
...
17
LEVER, GOVERNOR ASSEMBLY KOH-24 090 69-S
...
17
LEVER, GOVERNOR ASSEMBLY KOH-24 090 69-S
...
18
BOLT, RD HD SQ NECK M6X1.0X25 KOH-24 211 03-S
...
19
NUT, FLG M6X1.0 KOH-M-641060-S
...
20
LINKAGE, CHOKE KOH-24 079 54-S
...
22
SPRING, GOVERNED IDLE KOH-24 089 68-S
...
23
BUSHING, THROTTLE LINKAGE KOH-25 158 11-S
...
26
CLAMP, CABLE KOH-25 237 41-S
...
31
LINKAGE, THROTTLE KOH-24 079 40-S
...
32
SPRING, LINKAGE KOH-24 089 75-S
...
33
LEVER, THROTTLE CONTROL KOH-24 090 03-S
...
34
SPRING, CHOKE RETURN KOH-24 089 03-S
...
35
SCREW, HI-LOW KOH-25 086 787-S
...
NI
SPRING, GOVERNOR (BLUE) KOH-24 089 60-S
