product name

Kohler CH752-3128 Woods Equipment Engine

Model: CH752-3128 Equipment

Back To Assemblies

Save Part Not Listed?
product name

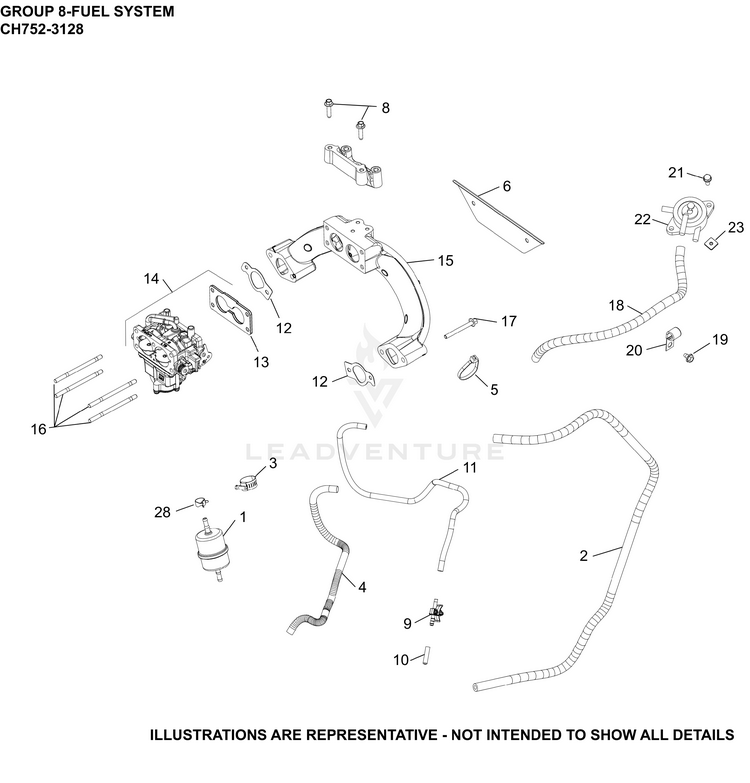

08 Fuel System

...
...
1
FILTER, FUEL KOH-24 050 13-S
...
2
HOSE, FUEL LOW PERMEATION 39" KOH-25 111 81-S
...
3
CLAMP, HOSE KOH-25 237 31-S
...
4
SLEEVE, ANTI-ABRASION KOH-25 431 22-S
...
5
TIE KOH-25 454 07-S
...
6
COVER, INTAKE MANIFOLD KOH-24 096 137-S
...
8
SCREW, FLG M6X1.0X25 KOH-25 086 124-S
...
9
CONNECTOR, EVAPORATIVE KOH-25 155 51-S
...
10
CAP, MASKING KOH-25 173 33-S
...
11
HOSE, EVAPORATIVE KOH-24 326 143-S
...
12
KIT, INTAKE MANIFOLD GASKET-(#24755452S) KOH-24 041 79-S
...
13
GASKET, CARBURETOR KOH-24 041 84-S
...
14
KIT, CARBURETOR-USE 24 853 274-S KOH-24 853 242-S
...
15
MANIFOLD, INTAK E(HORZ, 2BBL) KOH-24 164 164-S
...
16
STUD,M6X1.0X96 KOH-M-629095-S
...
17
SCREW, HEX FLANGE KOH-25 086 766-S
...
18
LINE, FLEXIBLE FUEL 15 1/2" KOH-24 353 02-S
...
19
SCREW, THREAD FORMING KOH-25 086 406-S
...
20
CLIP, CABLE KOH-47 154 01-S
...
21
SCREW, HEX FLANGE KOH-25 086 786-S
...
22
PUMP, FUEL KOH-24 393 16-S
...
23
NUT, PLASTIC - BLACK KOH-25 100 37-S
...
NI
KIT, HIGH ALT (4000-8000 FT) KOH-24 755 219-S
...
NI
KIT, HIGH ALT (8,000+ FT) KOH-24 755 243-S
...
NI
KIT, SOLENOID KOH-24 757 76-S
...
NI
KIT, CHOKE REPAIR KOH-24 757 77-S
...
NI
KIT, ACCEL PUMP REPAIR KOH-24 757 70-S
...
NI
KIT, CARBURETOR REPAIR KOH-24 757 71-S
...
NI
KIT, FLOAT BOWL REPLACEMENT KOH-24 757 74-S
...
28
SPRING CLAMP, HOSE KOH-25 237 37-S
