Kohler CH752-3128 Woods Equipment Engine

Model: CH752-3128 Equipment

Back To Assemblies

Save Part Not Listed?
product name

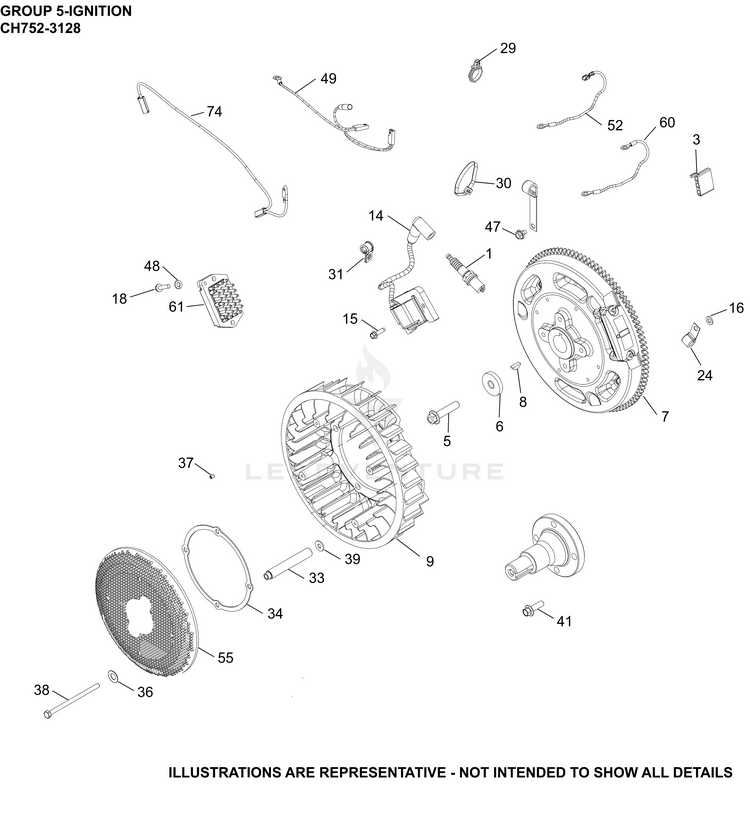

05 Ignition/Charging

...
...
1
SPARK PLUG, RFI KOH-25 132 14-S
...
3
CONNECTOR KOH-25 155 41-S
...
5
SCREW, HEX FLANGE KOH-25 086 361-S
...
6
WASHER, FLAT 13/32"-(#2546809S) KOH-12 468 03-S
...
7
FLYWHEEL ASSEMBLY (LW) KOH-24 025 122-S
...
8
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
9
KIT, FLYWHEEL FAN KOH-24 755 253-S
...
14
MODULE, MAGNETO DIGITAL IGNITION KOH-24 584 178-S
...
15
SCREW, THREAD FORMING KOH-25 086 472-S
...
16
WASHER, FLAT 1/4" (O.D. 1/2") KOH-X-25-63-S
...
18
SCREW, HEX FLANGE HI-LO-USE 25 086 785-S KOH-25 086 157-S
...
24
CLIP, CABLE KOH-235173-S
...
29
RETAINER, WIRE HARNESS KOH-25 018 05-S
...
30
TIE KOH-25 454 07-S
...
31
CLIP KOH-210281-S
...
33
SPACER KOH-24 112 14-S
...
34
RING, SUPPORT KOH-25 141 08-S
...
36
WASHER, SPRING 10 MM KOH-24 468 11-S
...
37
SCREW, SKT SET #10-24X1/4" KOH-25 086 43-S
...
38
SCREW, CAP M6X1.0X99.5 KOH-M-603100-S
...
39
WASHER, FLAT 1/4" (O.D. 5/8") KOH-X-25-53-S
...
41
SCREW, FLG M8X1.25X25 KOH-M-839025-S
...
47
SCREW, THREAD FORMING KOH-25 086 406-S
...
48
WASHER, LOCK KOH-25 468 30-S
...
49
LEAD, JUMPER H/S KOH-24 518 40-S
...
52
LEAD, 20/25 AMP B+ KOH-25 518 34-S
...
55
SCREEN, GRASS KOH-24 162 37-S
...
60
LEAD KOH-24 518 43-S
...
61
REGULATOR, RECT-(#2540349S) KOH-25 403 39-S
...
NI
SHAFT, FRONT DRIVE KOH-24 144 16-S
...
NI
HARNESS, WIRING KOH-24 176 106-S
...
NI
SCREW, THREAD FORMING KOH-25 086 412-S
...
74
HARNESS, LEAD DUPLEX KOH-25 176 19-S
...
NI
KIT, 25 AMP STATOR ASSY. KOH-28 085 02-S
...
NI
KIT, 25 AMP CONVERSION-DISCONTINUED KOH-54 755 03-S
