Kohler CH750-3064 MKTG SPEC - DISC Command Pro Twin

Model: CH750-3064 MKTG SPEC - DISC

Back To Assemblies

Save Part Not Listed?
product name

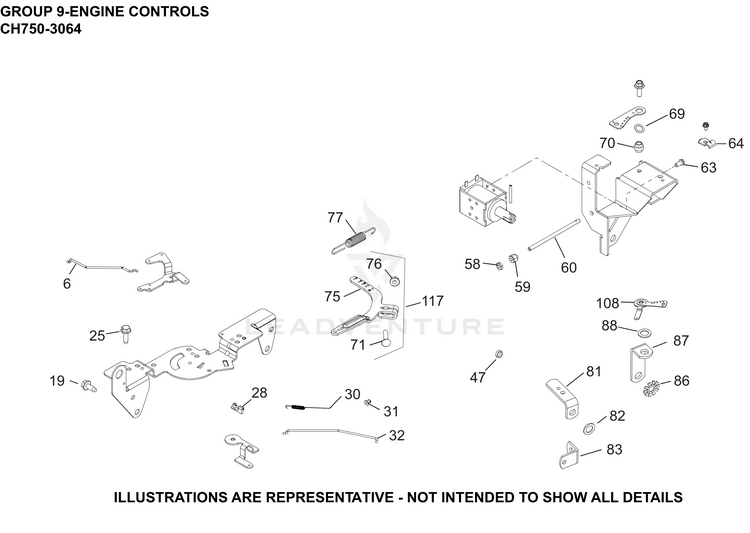

09 Engine Controls

...
...
6
LINKAGE, CHOKE KOH-24 079 27-S
...
19
SCREW, THREAD FORMING KOH-25 086 397-S
...
25
SCREW, THREAD FORMING KOH-25 086 396-S
...
28
BUSHING, THROTTLE LINKAGE KOH-25 158 11-S
...
30
SPRING, LINKAGE KOH-24 089 01-S
...
31
BUSHING, LINKAGE RETAINING KOH-25 158 08-S
...
32
LINKAGE, THROTTLE KOH-24 079 01-S
...
32
LINKAGE, THROTTLE KOH-24 079 26-S
...
47
SPACER KOH-25 431 01-S
...
58
NUT, MACH SCREW #10-32 GRD 2 KOH-25 100 18-S
...
59
NUT, ADJUSTING KOH-25 100 06-S
...
60
ROD, SPEED CONTROL KOH-24 411 03-S
...
63
SCREW,WSH HD TAP #10-24X13/32" KOH-25 086 109-S
...
64
CLAMP KOH-235778-S
...
69
WASHER, SPRING 11/32" KOH-275690-S
...
70
SPACER KOH-25 112 34-S
...
71
BOLT, RD HD SQ NECK M6X1.0X25 KOH-24 211 03-S
...
75
LEVER, GOVERNOR ASSEMBLY KOH-24 090 69-S
...
76
NUT, FLG M6X1.0 KOH-M-641060-S
...
77
SPRING, GOVERNOR (ORANGE) KOH-24 089 25-S
...
81
BRACKET-(#2512632S) KOH-52 126 02-S
...
82
WASHER,INT EXT TOOTH LOCK 1/4" KOH-X-22-12-S
...
83
BRACKET KOH-47 126 32-S
...
86
Washer, Int Ext Tooth KOH-X-22-16-S
...
87
STRAP, LIFTING KOH-47 445 02-S
...
88
WASHER KOH-X-25-41-S
...
108
LEVER-(#DSC) KOH-47 090 06-S
...
117
LEVER, GOVERNOR ASSEMBLY KOH-24 090 69-S
