Kohler CH750-3055 MARKETING Engine

Model: CH750-3055 MARKETING

Back To Assemblies

Save Part Not Listed?
product name

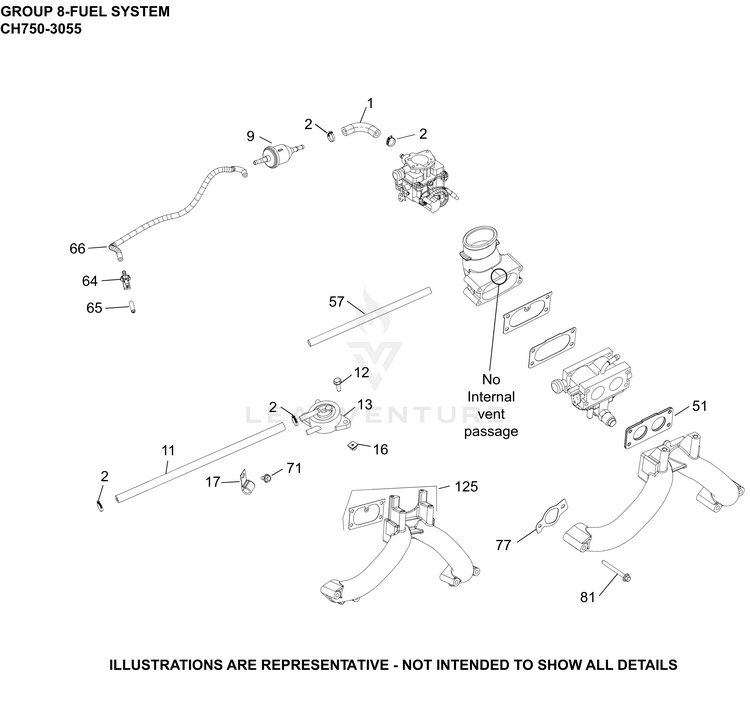

08 Fuel System

...
...
1
HOSE, FUEL LOW PERMEATION 39" KOH-25 111 81-S
...
2
CLAMP, HOSE KOH-25 237 31-S
...
9
FILTER, FUEL KOH-24 050 13-S
...
11
LINE, FLEXIBLE FUEL 15 1/2" KOH-24 353 02-S
...
12
SCREW, HEX FLANGE KOH-25 086 786-S
...
13
PUMP, FUEL KOH-24 393 16-S
...
16
NUT, PLASTIC - BLACK KOH-25 100 37-S
...
17
CLIP, CABLE (KM) KOH-48 154 01-S
...
51
GASKET, CARBURETOR KOH-24 041 81-S
...
57
SLEEVE, INSULATING 14" KOH-24 431 02-S
...
64
CONNECTOR, EVAPORATIVE KOH-25 155 51-S
...
65
CAP, MASKING KOH-25 173 33-S
...
66
HOSE, EVAPORATIVE KOH-24 326 143-S
...
71
SCREW, THREAD FORMING KOH-25 086 406-S
...
77
KIT, INTAKE MANIFOLD GASKET-(#24755452S) KOH-24 041 79-S
...
81
SCREW, HEX FLANGE KOH-25 086 766-S
...
125
KIT, INTAKE MANIFOLD (HDAC) KOH-24 164 96-S
...
NI
KIT, SOLENOID VALVE REPAIR-(#DSC) KOH-24 757 50-S
...
NI
KIT, CHOKE REPAIR (CH750)-(#DSC) KOH-24 757 52-S
...
NI
KIT, OVERHAUL-DISCONTINUED KOH-24 757 53-S
...
NI
KIT, FLOAT REPAIR-DISCONTINUED KOH-24 757 54-S
