Kohler CH750-0048 PEMSA Engine

Model: CH750-0048 PEMSA

Back To Assemblies

Save Part Not Listed?
product name

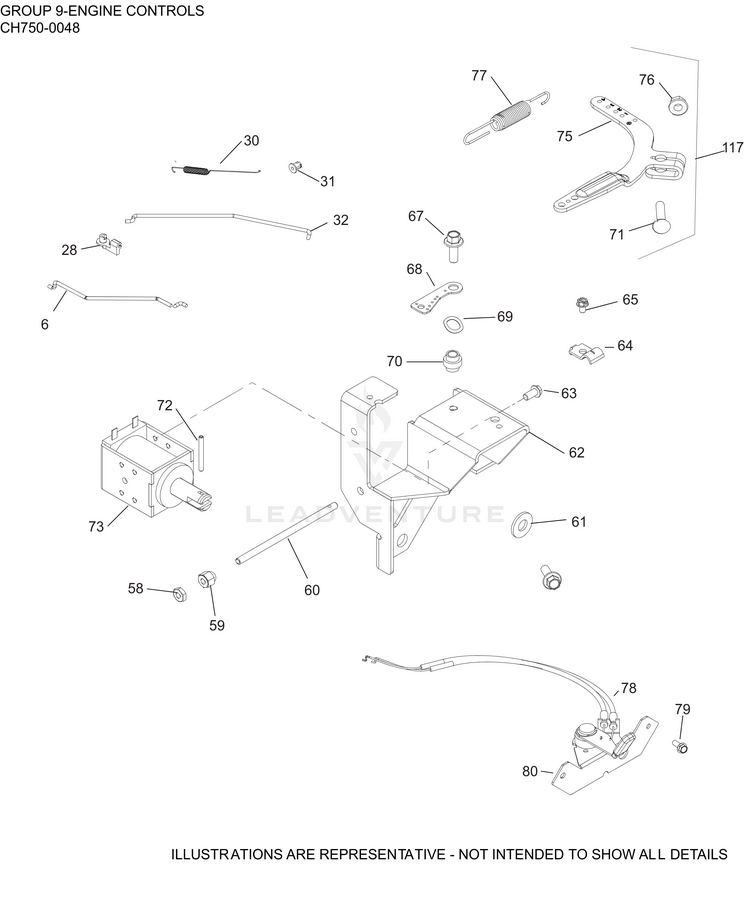

09 Engine Controls

...
...
6
LINKAGE, CHOKE KOH-24 079 30-S
...
28
BUSHING, THROTTLE LINKAGE KOH-25 158 11-S
...
30
SPRING, LINKAGE KOH-24 089 01-S
...
31
BUSHING, LINKAGE RETAINING KOH-25 158 08-S
...
32
LINKAGE, THROTTLE KOH-24 079 26-S
...
58
NUT, MACH SCREW #10-32 GRD 2 KOH-25 100 18-S
...
59
NUT, ADJUSTING KOH-25 100 06-S
...
60
ROD, SPEED CONTROL KOH-24 411 03-S
...
61
WASHER KOH-X-25-5-S
...
62
BRACKET, SOLENOID KOH-24 126 251-S
...
63
SCREW,WSH HD TAP #10-24X13/32" KOH-25 086 109-S
...
64
CLAMP KOH-235778-S
...
65
SCREW, SLT WSH HD 8-32X1/4" KOH-25 086 111-S
...
67
SCREW, FLG M6X1.0X16 KOH-M-639016-S
...
68
LEVER-(#DSC) KOH-47 090 05-S
...
69
WASHER, SPRING 11/32" KOH-275690-S
...
70
SPACER KOH-25 112 34-S
...
71
BOLT, RD HD SQ NECK M6X1.0X25 KOH-24 211 03-S
...
72
PIN KOH-X-280-25-S
...
73
SOLENOID, IDLE KOH-24 435 06-S
...
75
LEVER, GOVERNOR ASSEMBLY KOH-24 090 69-S
...
75
LEVER, GOVERNOR KOH-24 090 58-S
...
76
NUT, FLG M6X1.0 KOH-M-641060-S
...
77
SPRING, GOVERNOR (CLEAR) KOH-24 089 50-S
...
78
CABLE, CONTROL ASSEMBLY KOH-24 225 09-S
...
79
SCREW, HI-LOW KOH-25 086 787-S
...
80
DECAL, CONTROL PANEL KOH-24 113 127-S
...
117
LEVER, GOVERNOR ASSEMBLY KOH-24 090 68-S
