Kohler CH740-0123 Medart Engine

Model: CH740-0123 Medart

Back To Assemblies

Save Part Not Listed?
product name

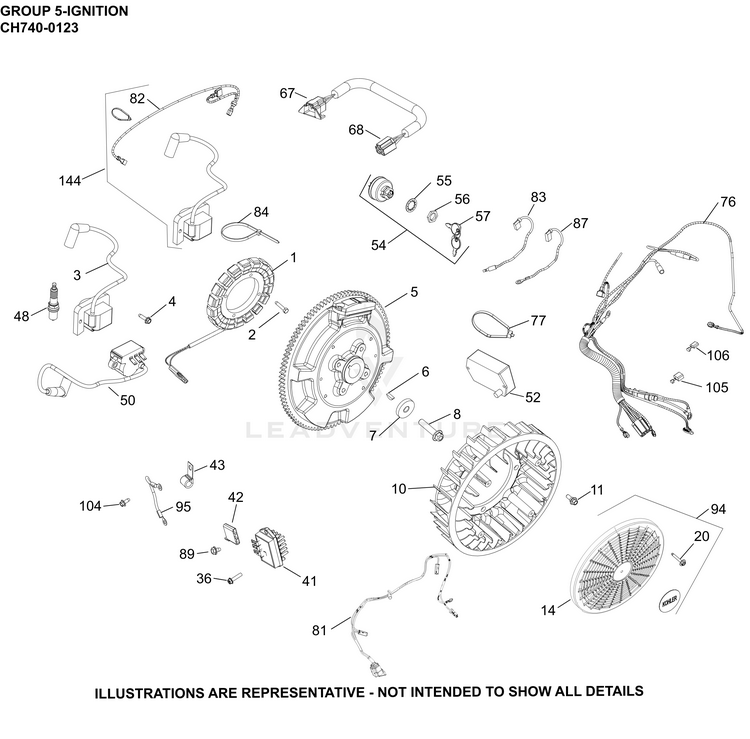

05 Ignition/Charging

...
...
1
KIT, 15 / 20 AMP STATOR KOH-237878-S
...
2
SCREW, THREAD FORMING KOH-25 086 402-S
...
3
MODULE,IGNITION BEFORE MDI CONVERSION KOH-24 584 36-S
...
3
MODULE,MDI AFTER MDI CONVERSION & Before S/N 5025700011 KOH-25 584 14-S
...
3
MODULE, MDI AFTER MDI CONVERSION & After S/N 5025700001 KOH-25 584 26-S
...
4
SCREW, THREAD FORMING KOH-25 086 472-S
...
5
FLYWHEEL ASSEMBLY (LW) KOH-24 025 122-S
...
6
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
7
WASHER, FLAT 13/32"-(#2546809S) KOH-12 468 03-S
...
8
SCREW, HEX FLANGE KOH-25 086 361-S
...
10
KIT, FLYWHEEL FAN KOH-24 755 253-S
...
11
BOLT, SHOULDER KOH-25 086 47-S
...
14
SCREEN, GRASS KOH-24 162 44-S
...
20
SCREW, FLG SEMS M4x.7x25 KOH-25 086 117-S
...
36
SCREW, HEX FLANGE HI-LO-USE 25 086 785-S KOH-25 086 157-S
...
41
REGULATOR, RECT-(#2540349S) KOH-25 403 39-S
...
42
CONNECTOR KOH-25 155 41-S
...
43
CLIP, CABLE KOH-235173-S
...
48
PLUG, SPARK (PRO SERIES) KOH-25 132 12-S
...
50
MODULE,DSAI IGNITION-DISC-SEE PB 259 KOH-24 584 89-S
...
50
MODULE,DSAI IGNITION-DISC-SEE PB 259 KOH-24 584 89-S
...
50
MODULE,DSAI IGNITION-DISC-SEE PB 259 KOH-24 584 89-S
...
52
KIT,DSAI CONVERSION-DISC-SEE PB 259 KOH-24 755 172-S
...
54
KEY SWITCH ASSEMBLY KOH-25 099 37-S
...
55
WASHER, INTERNAL TOOTH KOH-48 468 02-S
...
56
NUT, KEY SWITCH KOH-48 100 01-S
...
57
KEY, SET OF 2 KOH-48 340 01-S
...
67
CONNECTOR KOH-25 155 06-S
...
68
CONNECTOR KOH-48 155 01-S
...
76
HARNESS WIRING ASSEMBLY KOH-24 176 150-S
...
77
TIE KOH-25 454 07-S
...
81
HARNESS, WIRING KOH-25 176 02-S
...
82
LEAD, DUPLEX-USE 24 176 311-S KOH-24 176 41-S
...
83
LEAD, OIL SENTRY KOH-24 518 09-S
...
84
TIE KOH-25 454 05-S
...
87
LEAD, 20/25 AMP B+ KOH-25 518 34-S
...
89
SCREW, THREAD FORMING KOH-25 086 406-S
...
94
KIT GRASS SCREEN KOH-54 755 15-S
...
95
LEAD KOH-24 518 43-S
...
104
SCREW, THREAD FORMING KOH-25 086 693-S
...
105
TERMINAL KOH-25 452 18-S
...
106
TERMINAL KOH-25 452 19-S
...
144
KIT,DSAI CONVERSION-DISC-SEE PB 259 KOH-24 755 172-S
...
144
KIT,MDI MODULE CONVERSION-SEE PB 259 KOH-25 707 03-S
